FRU Disassembly 8-71
Toner Cartridge CRUM PWB
1. Remove the Top Cover (page 8-7).
PL5.1.8
2. Disconnect the connector from the Toner Cartridge CRUM PWB.
3. Move the Toner Cartridge CRUM PWB in the direction of the arrow to remove.
Toner Dispense Assembly
1. Remove the Front Left Cover (page 8-5).
2. Remove the Top Cover (page 8-7).
3. Remove the Drum Cartridge.
4. Remove the Toner Cartridge.
5. Remove the Drum Cartridge Fan Intake Duct (page 8-56).
6. Remove the Front Door (page 8-8).
7. Remove the Duplex Unit if present.
8. Remove Door A (page 8-46).

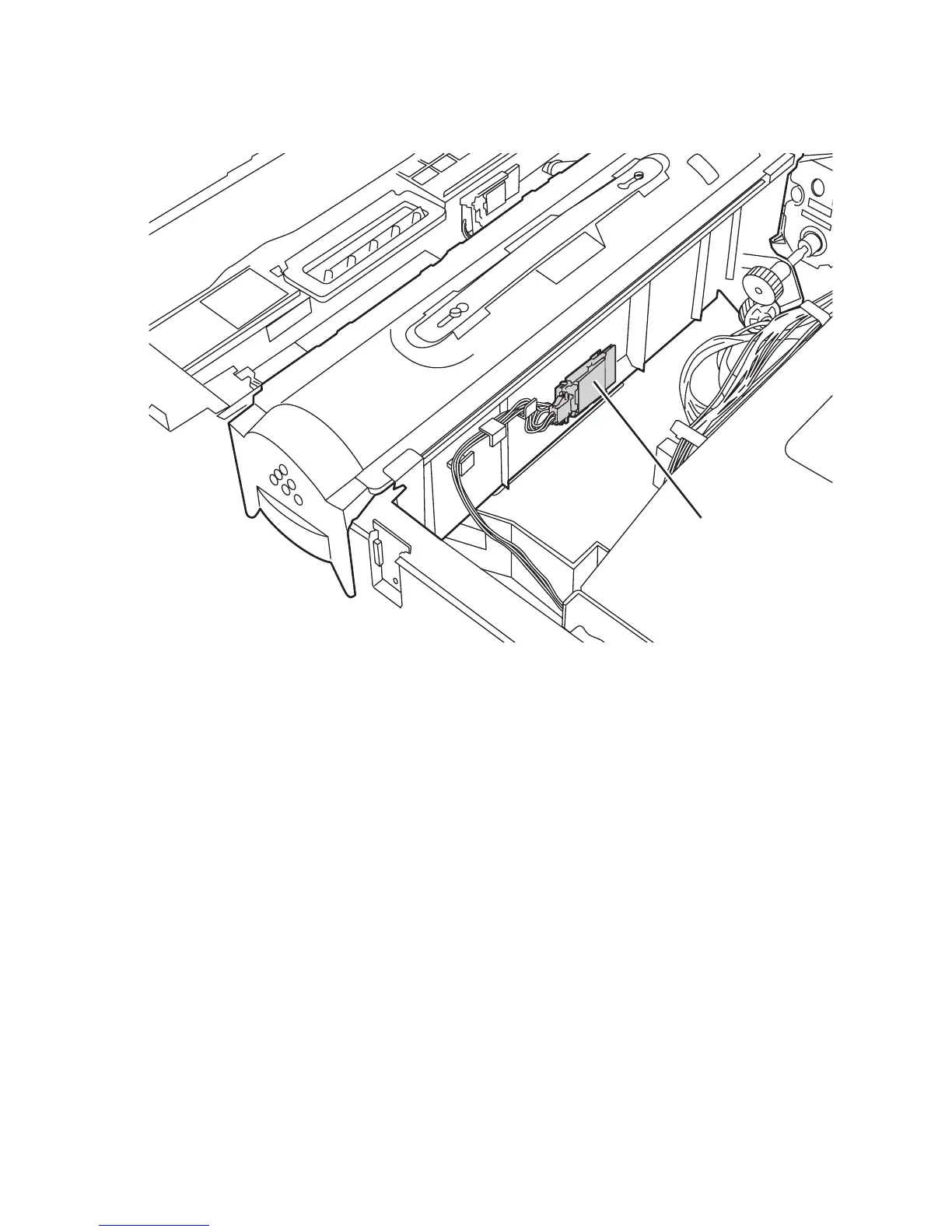

s5500-589
Toner Cartridge
CRUM PWB
