FRU Disassembly 8-35

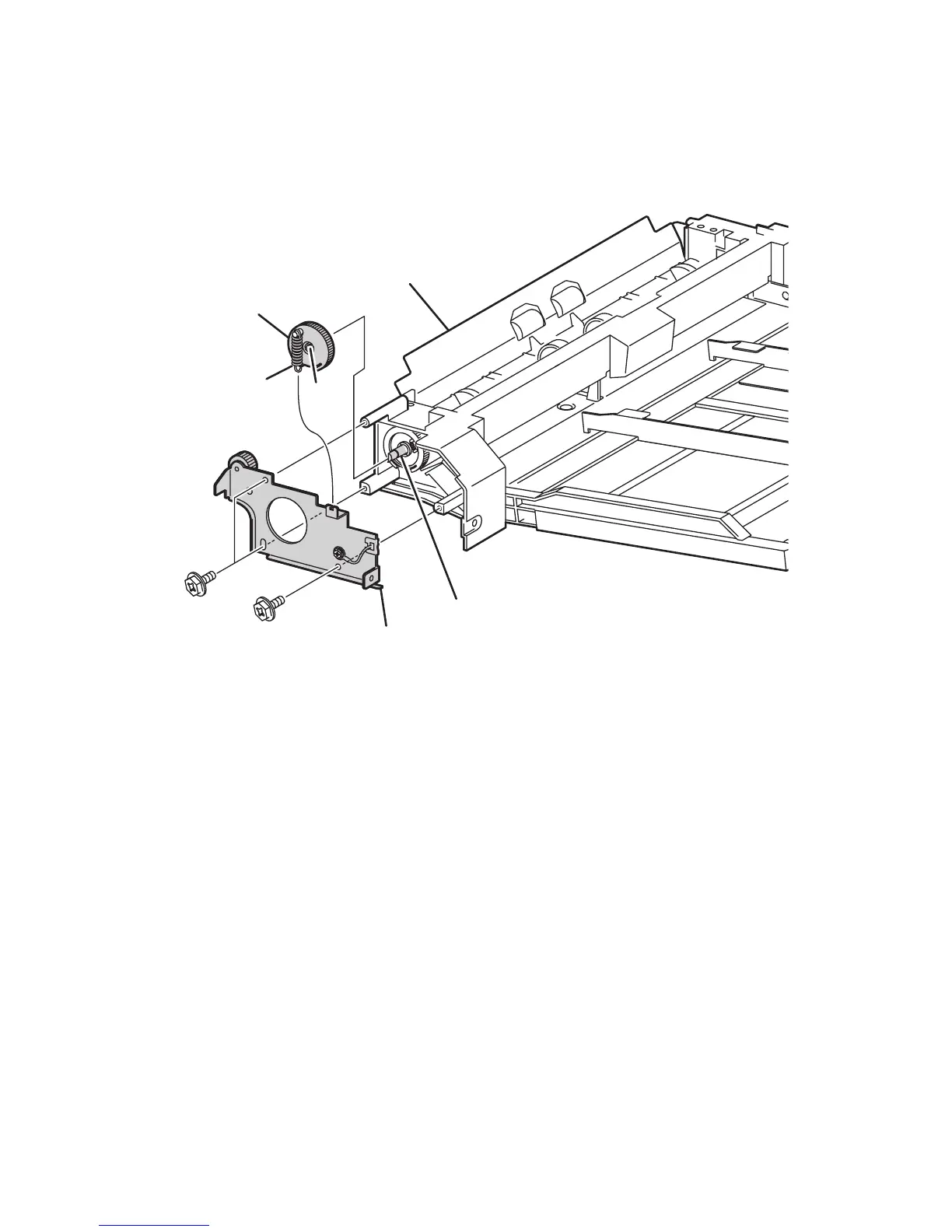

Pick Up Gear Spring
1. Remove the Tray 1/MPT Rear Cover (page 8-16).
2. Remove the Tray 1/MPT Feeder (page 8-32).
PL3.2.6
3. Remove the Spring from the Gear Bracket and Pick Up Gear.
Replacement Note
Slide the Pick Up Gear until it locks on the Stopper Lever.
Gear Bracket
s5500-129
Pick Up Gear
Pick Up Gear
Spring
Pick Up Shaft
Hook
Tray 1 Feeder
