FRU Disassembly 8-11
Upper Right Cover
PL1.2.1

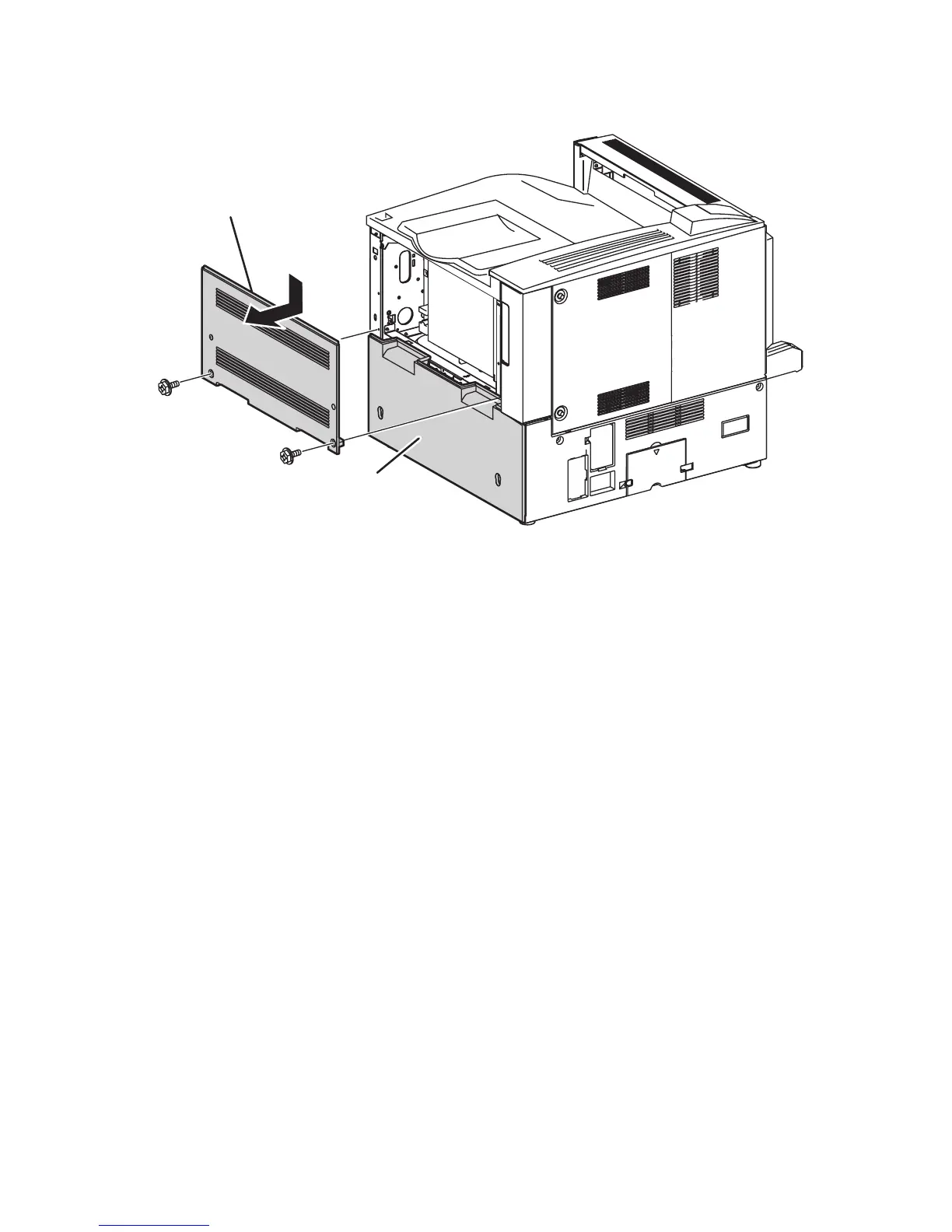

1. Remove the two screws securing the Upper Right Cover.
2. Lower the Upper Right Cover to release the upper rib.
3. Remove the Upper Right Cover.
Replacement Note
Be sure to secure the lower rib on the Upper Right Cover to the upper part of
the Lower Right Cover.
s5500-083
Upper Right
Cover
Lower Right
Cover
