8-86 Phaser 5500 Printer Service Manual
Print Engine Electrical
High Voltage Power Supply
1. Remove the Front Left Cover (page 8-5).
2. Remove the Top Cover (page 8-7).
3. Pull out the Drum Cartridge.
4. Remove the Front Door (page 8-8).
5. Remove the Inner Main Cover (page 8-9).
PL8.1.1

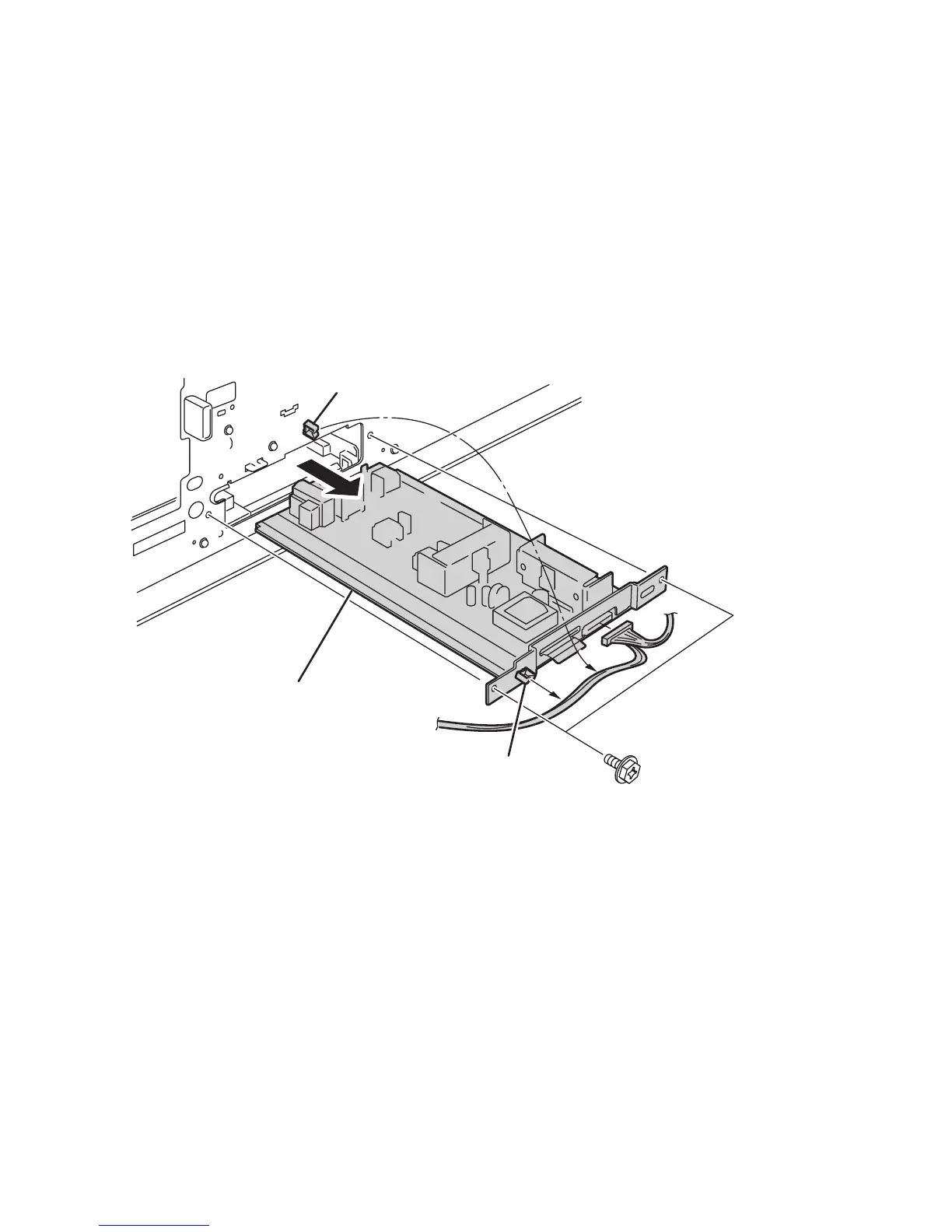

6. Disconnect the connector from the HVPS.
7. Release the harness from the clamps.
8. Remove the two screws securing the HVPS to the frame.
9. Carefully remove the HVPS by moving it in the direction of the arrow.
Replacement Note
Insert the board into the guides on both sides.
Power Switch
1. Remove the Top Cover .(page 8-7).
2. Open the Front Door.
HVPS
Clamp
Clamp
s5500-179
