4.2 COM OPERATION
COM TRANSCEIVER SELECTION AND ACTIVATION
NOTE: When turning on the G1000 for use, the system remembers the last frequencies used and the active
COM transceiver state prior to shutdown.
The COMFrequencyBoxiscomposedoffourelds;thetwoactive frequencies are on the left side and the
two standby frequencies are on the right. The COM transceiver is selected for transmitting by pressing the
COM MIC Keys on the Audio Panel. During reception of audio from the COM radio selected for transmission,
audio from the other COM radio is muted.
An active COM frequency displayed in green indicates that the COM transceiver is selected on the Audio
Panel ( COM1 MIC or COM2 MIC Key).
Frequenciesinthestandby field are displayed in either white or gray. The standby frequency in the tuning
box is white. The other standby frequency is gray.

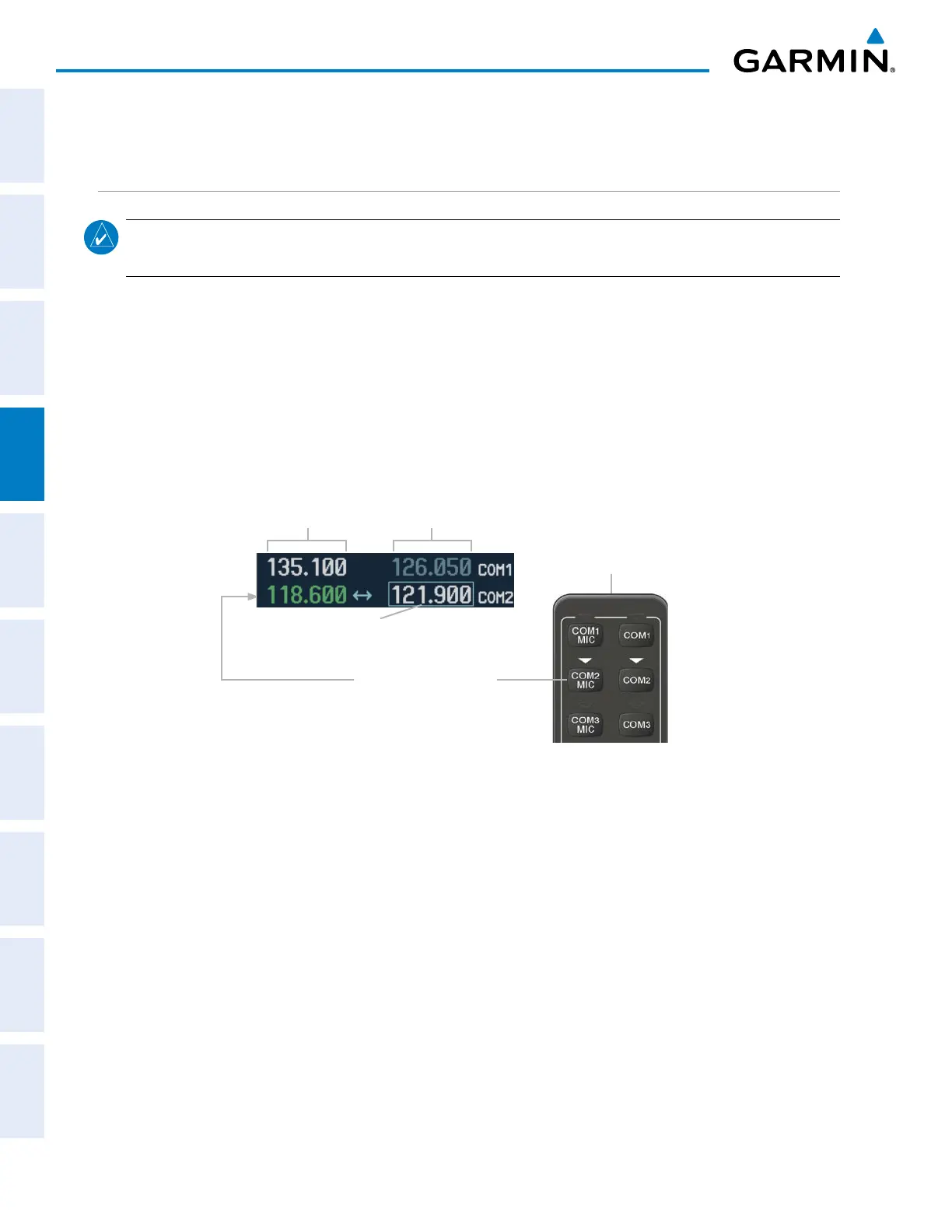

Figure 4-3 Selecting a COM Radio for Transmit
Active
Fields
Standby
Fields
Tuning Box
COM2 Radio is Selected
on the Audio Panel
Top Section of
the Audio Panel

Garmin G1000 Diamond DA42NG Specifications

General

Display Type	LCD
Resolution	1024 x 768 pixels
Manufacturer	Garmin
Aircraft	Diamond DA42NG
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Audio Panel	Yes, integrated
Operating System	Proprietary
Weather Radar	Optional
Power Supply	28 VDC
Screen Size	10.4 inches
Number of Displays	2
AHRS	Yes
Air Data Computer (ADC)	Yes
GPS	Yes
Transponder	Yes
Input Method	knobs
Navigation	VOR, ILS, GPS
Traffic Avoidance	TAS/TCAS
Terrain Awareness	Yes, TAWS
