190-00962-02 Rev. A
Garmin G1000 Pilot’s Guide for the Diamond DA42NG
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICES INDEX
595

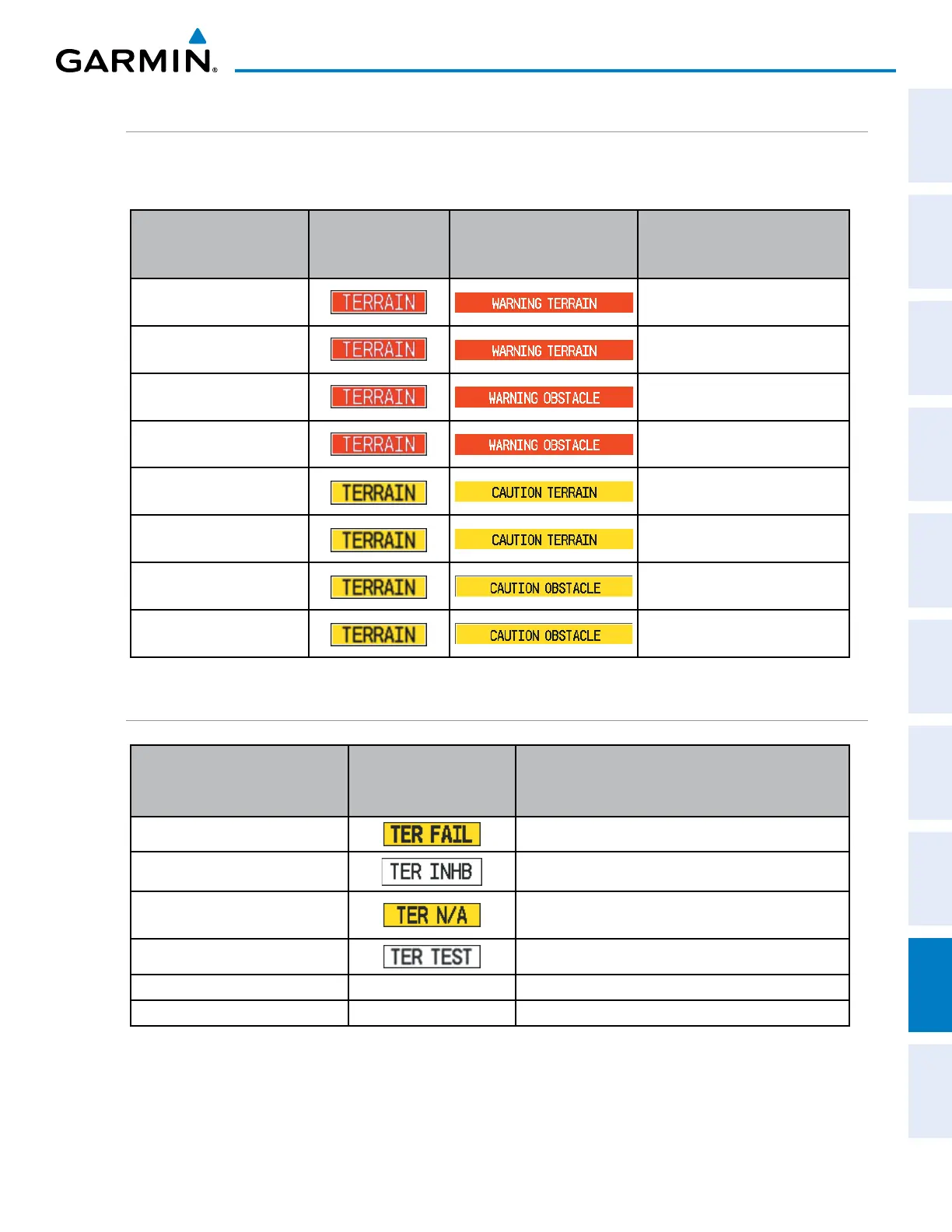

APPENDIX B
SVS TERRAIN ALERTS
Annunciations appear on the PFD and MFD. Pop-up alerts appear only on the MFD. For more information
on SVS Terrain, refer to the Hazard Avoidance Section.
Alert Type
PFD/MFD
TERRAIN-SVS Page
Annunciation
Pop-Up Alert
(MFD Navigation Map
Page)
Aural Message
Reduced Required Terrain
Clearance Warning (RTC)
“Warning; Terrain, Terrain”
Imminent Terrain Impact
Warning (ITI)
“Warning; Terrain, Terrain”
Reduced Required Obstacle
Clearance Warning (ROC)
“Warning; Obstacle, Obstacle”
Imminent Obstacle Impact
Warning (IOI)
“Warning; Obstacle, Obstacle”
Reduced Required Terrain
Clearance Caution (RTC)
“Caution; Terrain, Terrain”
Imminent Terrain Impact
Caution (ITI)
“Caution; Terrain, Terrain”
Reduced Required Obstacle
Clearance Caution (ROC)
“Caution; Obstacle, Obstacle”
Imminent Obstacle Impact
Caution (IOI)
“Caution; Obstacle, Obstacle”
SVS TERRAIN STATUS ANNUNCIATIONS
Alert Type
PFD/MFD
TERRAIN-SVS Page
Annunciation
Aural Message
System Test Fail
“Terrain System Failure”
Terrain Alerting is disabled
None
No GPS position or excessively
degraded GPS signal
“Terrain System Not Available”
System Test in progress
None
System Test pass None “Terrain System Test OK”
GPS signal is re-established None “Terrain System Available”
