Garmin G1000 Diamond DA42NG User Manual

Garmin G1000 Pilot’s Guide for the Diamond DA42NG
190-00962-02 Rev. A136
FLIGHT MANAGEMENT
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICESINDEX
MAP PANNING
Map panning allows the pilot to:
•Viewpartsofthemapoutsidethedisplayedrangewithoutadjustingthemaprange
•Highlightandselectlocationsonthemap
•Reviewinformationforaselectedairport,NAVAIDoruserwaypoint
•Designatelocationsforuseinightplanning
•Viewairspaceandairwayinformation
When the panning function is selected by pressing the Joystick, the Map Pointer flashes on the map display.
A window also appears at the top of the map display showing the latitude/longitude position of the pointer,
the bearing and distance to the pointer from the aircraft’s present position, and the elevation of the land at the
position of the pointer.

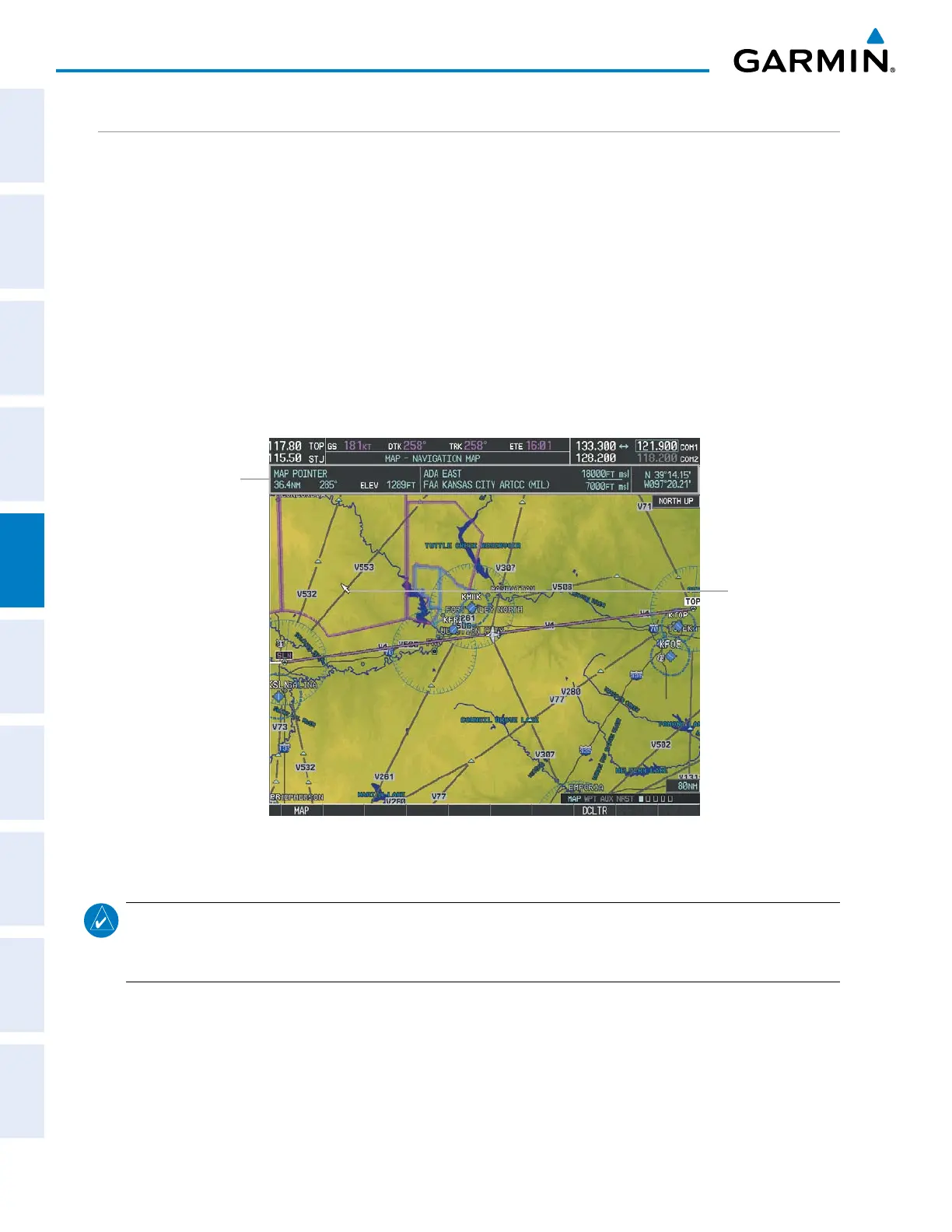

Figure 5-8 Navigation Map - Map Pointer Activated
Map Pointer
Map Pointer Information
NOTE: The map is normally centered on the aircraft’s position. If the map has been panned and there has
been no pointer movement for about 60 seconds, the map reverts back to centered on the aircraft position
and the flashing pointer is removed.

Garmin G1000 Diamond DA42NG Specifications

General

Display Type	LCD
Resolution	1024 x 768 pixels
Manufacturer	Garmin
Aircraft	Diamond DA42NG
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Audio Panel	Yes, integrated
Operating System	Proprietary
Weather Radar	Optional
Power Supply	28 VDC
Screen Size	10.4 inches
Number of Displays	2
AHRS	Yes
Air Data Computer (ADC)	Yes
GPS	Yes
Transponder	Yes
Input Method	knobs
Navigation	VOR, ILS, GPS
Traffic Avoidance	TAS/TCAS
Terrain Awareness	Yes, TAWS
