TERMINAL PROCEDURES CHARTS
Selecting Terminal Procedures Charts:
While viewing the Navigation Map Page, Nearest Airport Page, or Flight Plan Page, press the SHW CHRT
Softkey.
Or:
1) Press the MENU Key to display the PAGE MENU.
2) Turn the large FMS Knob to scroll through the OPTIONS Menu to Show Chart.
3) Press the ENT Key to display the chart.

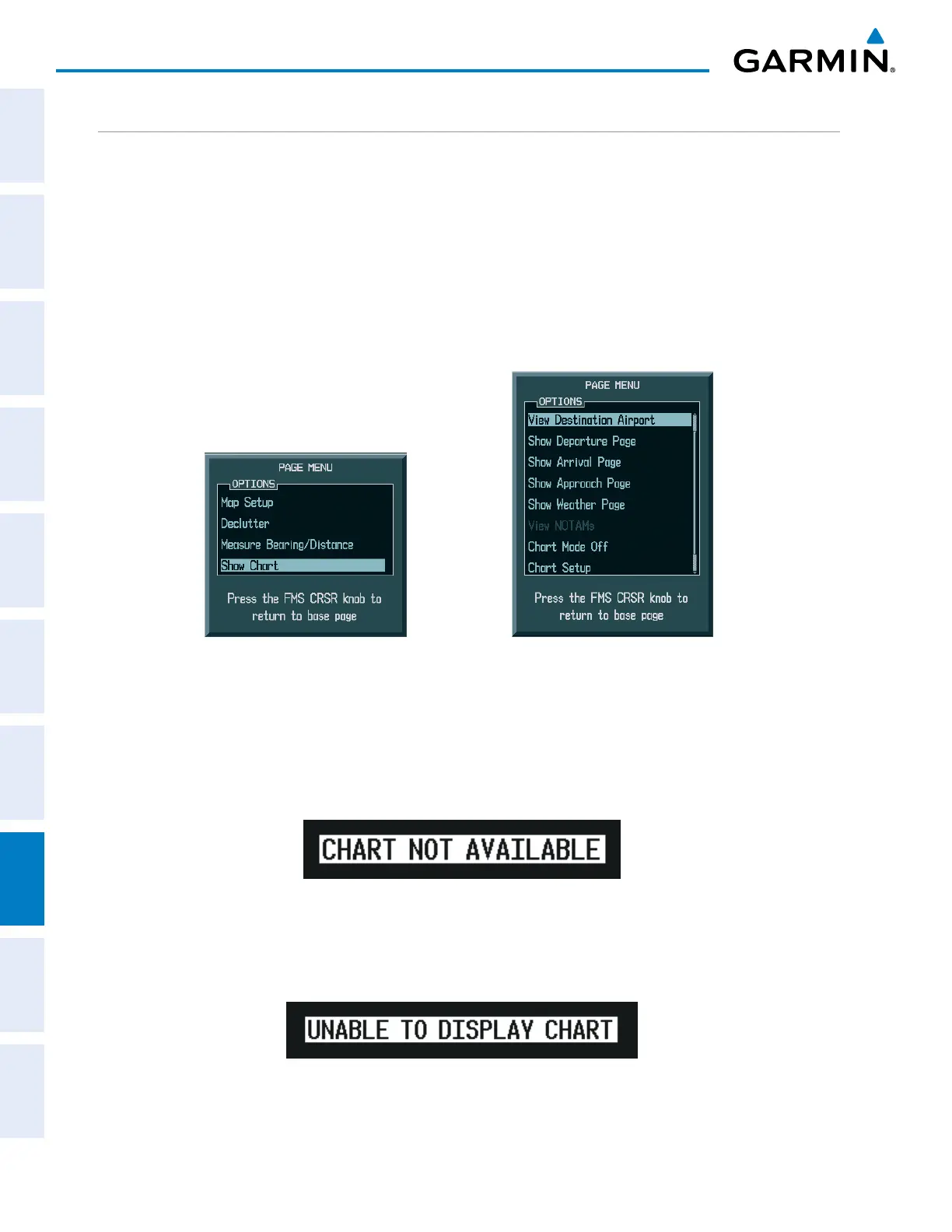

Navigation Map Page OPTIONS Menu Waypoint Airport Information Page OPTIONS Menu
Figure 8-50 Option Menus
Whennoterminalprocedurechartisavailable,thebannerCHARTNOTAVAILABLEappearsonthescreen.
The CHARTNOTAVAILABLEbannerdoesnotrefertotheFliteChartssubscription,butrathertheavailability
of a particular airport chart selection or procedure for a selected airport.
Figure 8-51 Chart Not Available Banner
Ifthereisaprobleminrenderingthedata(suchasadataerrororafailureofanindividualchart),thebanner
UNABLETODISPLAYCHARTisthendisplayed.
Figure 8-52 Unable To Display Chart Banner

Garmin G1000 Diamond DA42NG Specifications

General

Display Type	LCD
Resolution	1024 x 768 pixels
Manufacturer	Garmin
Aircraft	Diamond DA42NG
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Audio Panel	Yes, integrated
Operating System	Proprietary
Weather Radar	Optional
Power Supply	28 VDC
Screen Size	10.4 inches
Number of Displays	2
AHRS	Yes
Air Data Computer (ADC)	Yes
GPS	Yes
Transponder	Yes
Input Method	knobs
Navigation	VOR, ILS, GPS
Traffic Avoidance	TAS/TCAS
Terrain Awareness	Yes, TAWS
