Garmin G1000 Diamond DA42NG User Manual

190-00962-02 Rev. A
Garmin G1000 Pilot’s Guide for the Diamond DA42NG
431
AUTOMATIC FLIGHT CONTROL SYSTEM
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICES INDEX
AFCS STATUS BOX
FlightdirectormodeannunciationsaredisplayedonthePFDwhentheightdirectorisactive.Autopilot
statusisdisplayedinthecenteroftheAFCSStatusBox.Lateralightdirectormodesaredisplayedontheleft
and vertical on the right. Armed modes are annunciated in white and active in green.
GPS is
Selected
Navigation
Source
Command
Bars
Selected
Altitude

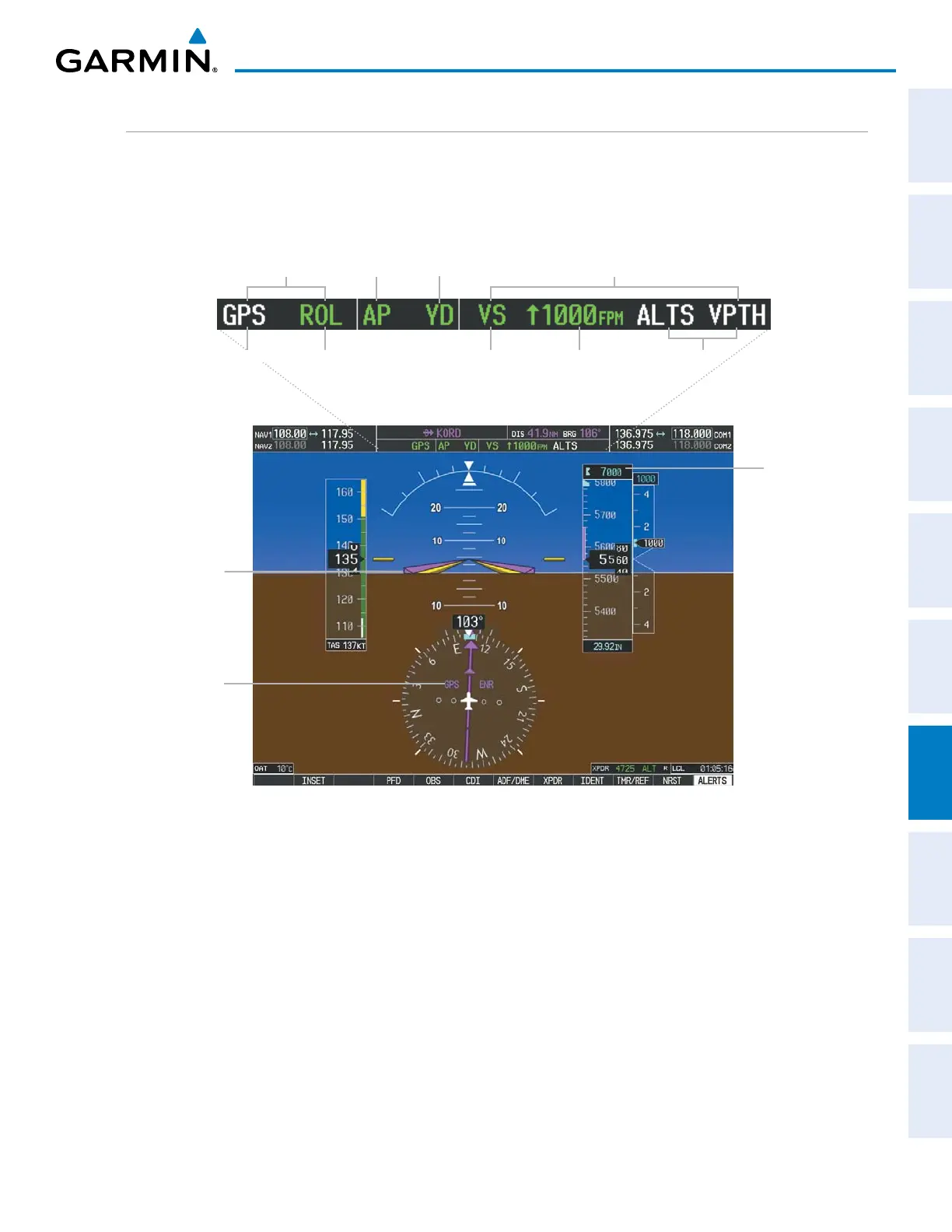

Figure 7-2 PFD AFCS Display
AFCS Status Box
Lateral Modes
Active
Autopilot
Status
Active
Mode
Reference
Armed
Vertical Modes
Armed
Yaw
Damper
Status

Garmin G1000 Diamond DA42NG Specifications

General

Display Type	LCD
Resolution	1024 x 768 pixels
Manufacturer	Garmin
Aircraft	Diamond DA42NG
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Audio Panel	Yes, integrated
Operating System	Proprietary
Weather Radar	Optional
Power Supply	28 VDC
Screen Size	10.4 inches
Number of Displays	2
AHRS	Yes
Air Data Computer (ADC)	Yes
GPS	Yes
Transponder	Yes
Input Method	knobs
Navigation	VOR, ILS, GPS
Traffic Avoidance	TAS/TCAS
Terrain Awareness	Yes, TAWS
