Obstacles are represented on the synthetic terrain display by standard two-dimensional tower symbols found
ontheInsetmapandMFDmapsandcharts.Obstaclesymbolsappearintheperspectiveviewwithrelative
height above terrain and distance fromthe aircraft. Unlike the Inset map and MFD moving map display,
obstacles on the synthetic terrain display do not change colors to warn of potential conflict with the aircraft’s
ightpathuntiltheobstacleisassociatedwithanactualFLTAalert.Obstaclesgreaterthan1000feetbelowthe
aircraft altitude are not shown. Obstacles are shown behind the airspeed and altitude displays.

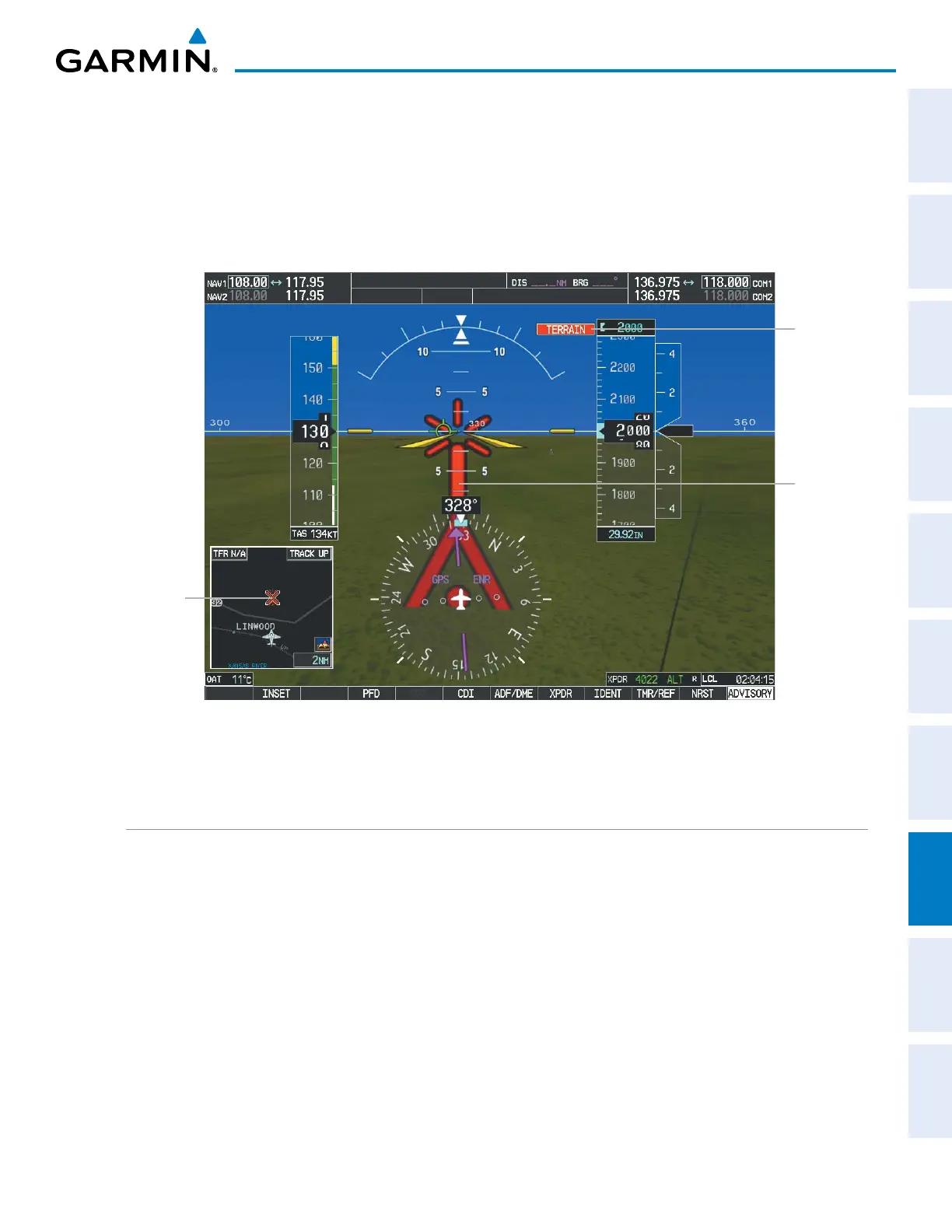

Figure 8-11 Obstacle
Potential
Impact
Point
Obstacle
Warning
TERRAIN
Annunciation
FIELD OF VIEW
ThePFDeldofviewcanberepresentedontheMFDNavigationMapPage.Twodashedlinesforminga
V-shape in front of the aircraft symbol on the map, represent the forward viewing area shown on the PFD.
Configuring field of view:
1) While viewing the Navigation Map Page, press the MENU Key to display the PAGE MENU.
2) Turn the large FMS Knob to highlight Map Setup and press the ENT Key.

Garmin G1000 Diamond DA42NG Specifications

General

Display Type	LCD
Resolution	1024 x 768 pixels
Manufacturer	Garmin
Aircraft	Diamond DA42NG
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Audio Panel	Yes, integrated
Operating System	Proprietary
Weather Radar	Optional
Power Supply	28 VDC
Screen Size	10.4 inches
Number of Displays	2
AHRS	Yes
Air Data Computer (ADC)	Yes
GPS	Yes
Transponder	Yes
Input Method	knobs
Navigation	VOR, ILS, GPS
Traffic Avoidance	TAS/TCAS
Terrain Awareness	Yes, TAWS
