Garmin G1000 Pilot’s Guide for the Diamond DA42NG
190-00962-02 Rev. A530
ADDITIONAL FEATURES
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICESINDEX
8.5 AIRPORT DIRECTORY
The Aircraft Owners and Pilots Association (AOPA) and optional AC-U-KWIK Airport Directory databases
offer detailed information regarding services, hours of operation, lodging options, and more. This information
isviewedontheAirportInformationPagebyselectingtheINFOSoftkeyuntilINFO-2 is displayed as shown in
Figure8-71.
Both Airport Directories are available for downloading at ygarmin.com.  However, copy only one of the
databasestotheSupplementalDataCard.Thesystemcannotrecognizebothdatabasessimultaneously.
Selecting the Airport Directory Page:
1) Turn the large FMS Knob to select the ‘WPT’ page group.
2) Turn the small FMS Knob to select the AIRPORT INFORMATION Page. Initially, information for the airport closest
to the aircraft’s present position is displayed.
3) If necessary, select the INFO softkey until INFO-2 is displayed.

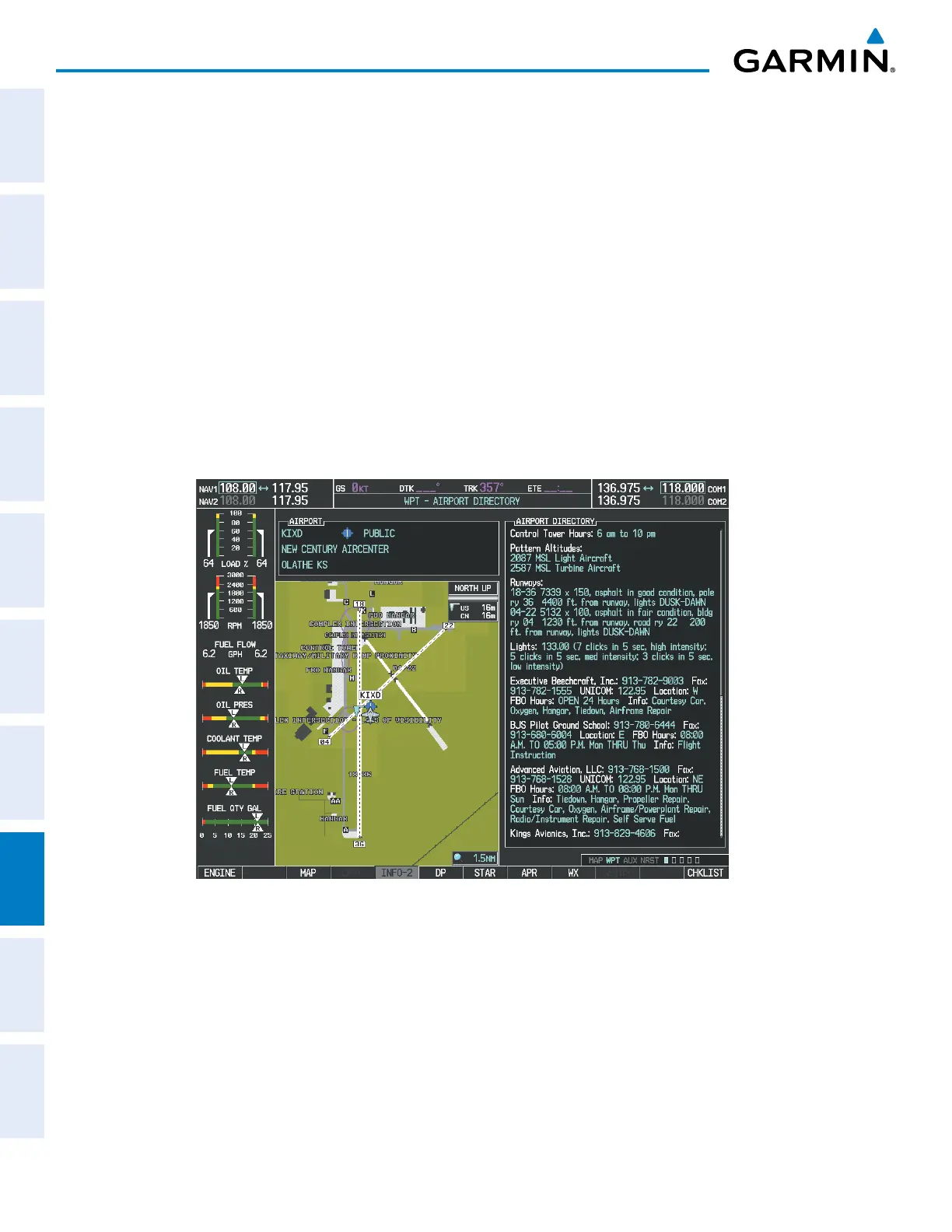

Figure 8-71 Airport Directory Information on the Airport Information Page

Garmin G1000 Diamond DA42NG Specifications

General

Display Type	LCD
Resolution	1024 x 768 pixels
Manufacturer	Garmin
Aircraft	Diamond DA42NG
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Audio Panel	Yes, integrated
Operating System	Proprietary
Weather Radar	Optional
Power Supply	28 VDC
Screen Size	10.4 inches
Number of Displays	2
AHRS	Yes
Air Data Computer (ADC)	Yes
GPS	Yes
Transponder	Yes
Input Method	knobs
Navigation	VOR, ILS, GPS
Traffic Avoidance	TAS/TCAS
Terrain Awareness	Yes, TAWS
