Garmin G1000 Diamond DA42NG User Manual

190-00962-02 Rev. A
Garmin G1000 Pilot’s Guide for the Diamond DA42NG 407
HAZARD AVOIDANCE
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICES INDEX

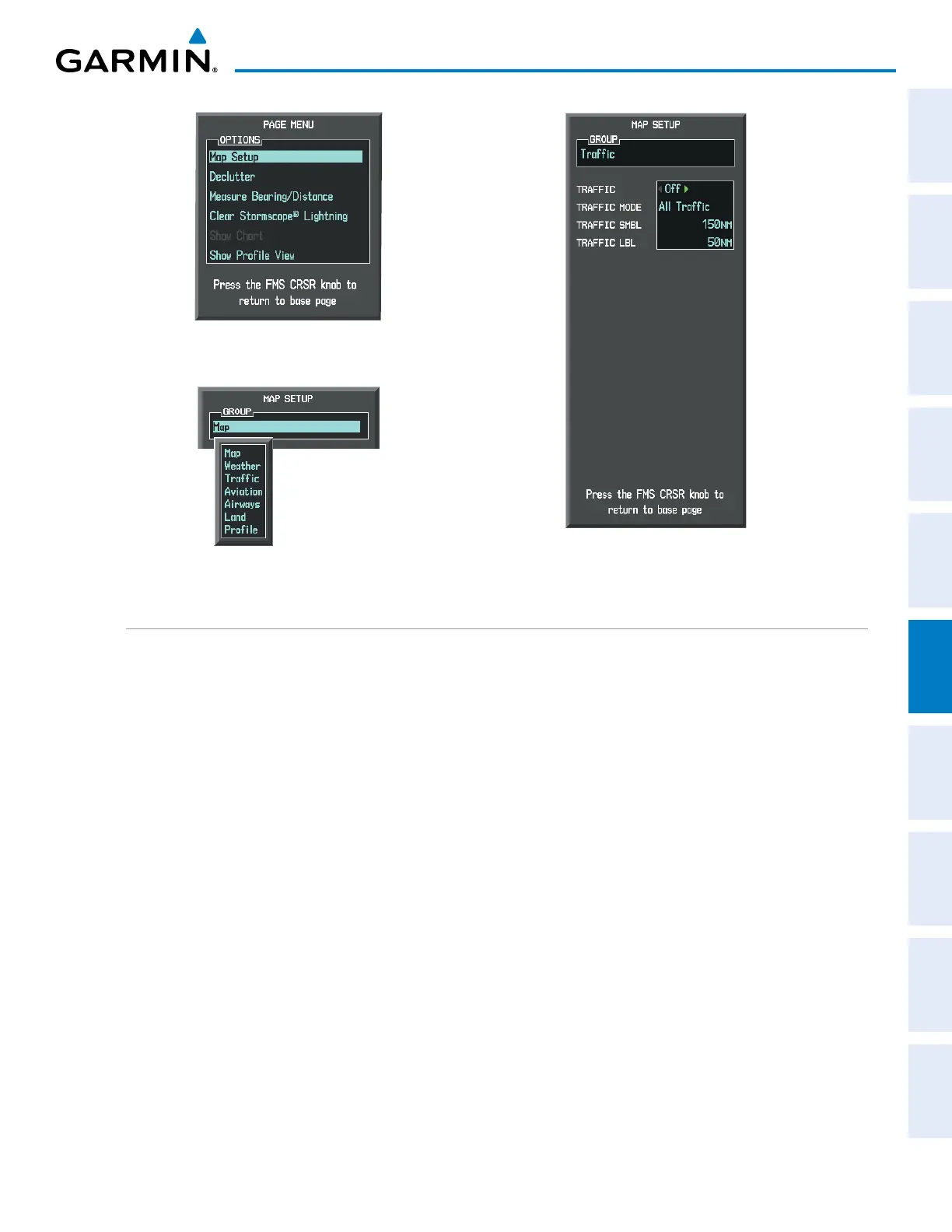

Figure 6-160 Navigation Map Page Setup Menu
Figure 6-159 Navigation Map Page Menu
Figure 6-161 Navigation Map Page Setup Menu, Traffic Group
TRAFFIC MAP PAGE
TheTrafcMapPageisspecializedtoshowsurroundingTIStrafcdatainrelationtotheaircraft’scurrent
positionandaltitude,withoutclutterfromthebasemap.ItistheprincipalpageforviewingTISdata.Aircraft
orientationonthismapisalwaysheadingupunlessthereisnovalidheading.Maprangeisadjustablewiththe
RANGE Knobfrom2to12nm,asindicatedbythemaprangerings.
ThetrafcmodeisannunciatedintheupperleftcorneroftheTrafcMapPage.Whentheaircraftisonthe
ground,TISautomaticallyentersStandbyMode.Oncetheaircraftisairborne,TISswitchesfromStandbyto
OperatingModeandtheG1000beginstodisplaytrafcinformation.RefertotheSystemStatusdiscussionfor
more information.
Displaying traffic on the Traffic Map Page:
1) Turn the large FMS Knob to select the Map Page Group.
2) Turn the small FMS Knob to select the Traffic Map Page.
3) Confirm TIS is in Operating Mode:
Press the OPERATE Softkey to begin displaying traffic.
Or:
a) Press the MENU Key.
b) Select ‘Operate Mode’ (shown if TIS is in Standby Mode) and press the ENT Key.
