COURSE DEVIATION INDICATOR (CDI)
NOTE: During a heading change of greater than 105˚ with respect to the course, the CDI on the Arc HSI
switches to the opposite side of the deviation scale and displays reverse sensing.
The Course Deviation Indicator (CDI) moves left or right from the course pointer along a lateral deviation
scale to display aircraft position relative to the course. If the course deviation data is not valid, the CDI is not
displayed.

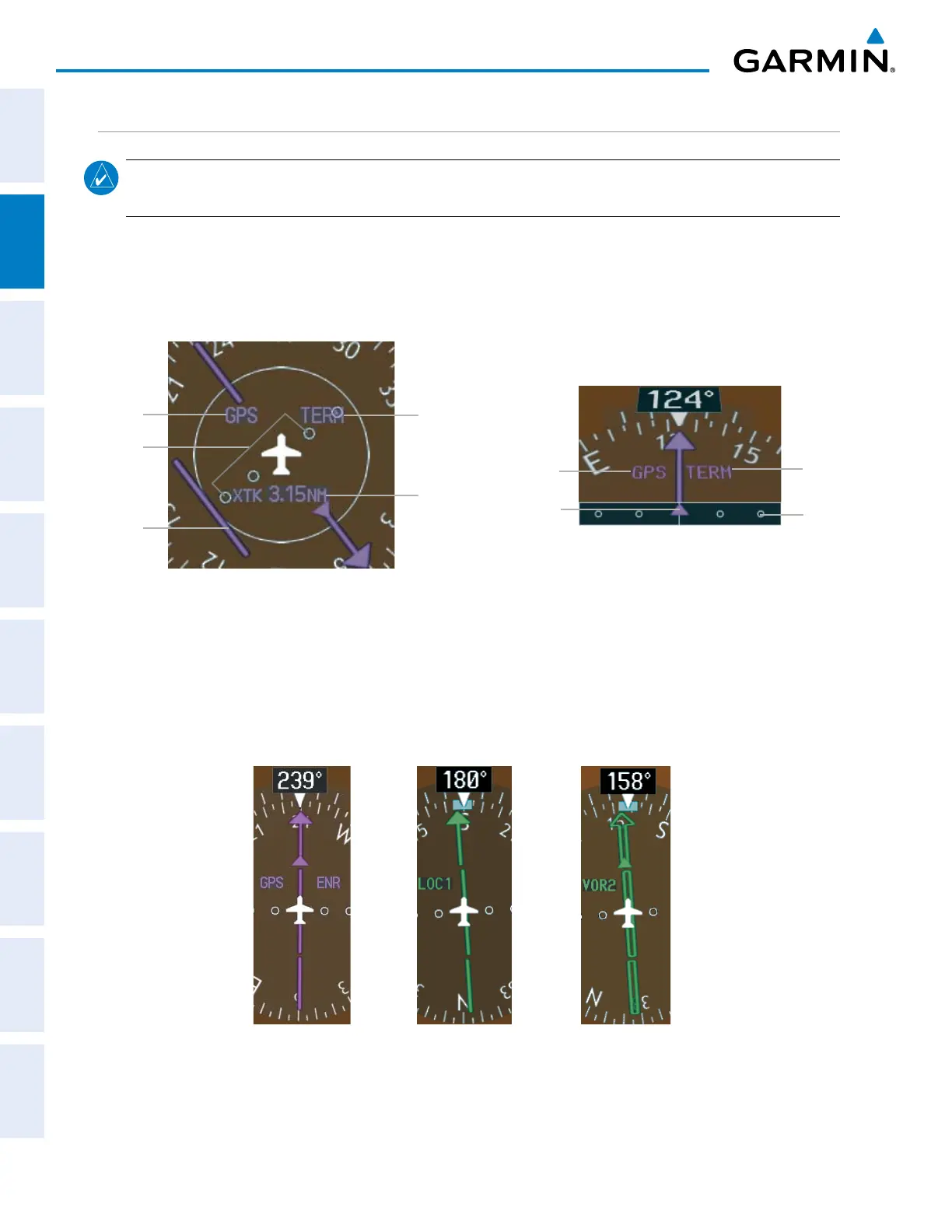

Figure 2-18 Course Deviation Indicator
Navigation
Source
Scale
CDI
Crosstrack
Error
360º HSI
Flight
Phase
CDI
Navigation
Source
CDI
Scale
Flight
Phase
Arc HSI
TheCDIcandisplaytwosourcesofnavigation,GPSorVOR/LOC.Thecolorindicatesthecurrentnavigation
source,magentaforGPSandgreenforVORandLOC.ThefullscalelimitsfortheCDIaredenedbyaGPS-
deriveddistancewhennavigatingGPS.WhennavigatingusingaVORorlocalizer(LOC),theCDIusesthe
same angular deviation as a mechanical CDI. If the CDI exceeds the maximum deviation on the scale (two dots)
whilenavigatingwithGPS,thecrosstrackerror(XTK)isdisplayedbelowthewhiteaircraftsymbol.
Figure 2-19 Navigation Sources

Garmin G1000 Diamond DA42NG Specifications

General

Display Type	LCD
Resolution	1024 x 768 pixels
Manufacturer	Garmin
Aircraft	Diamond DA42NG
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Audio Panel	Yes, integrated
Operating System	Proprietary
Weather Radar	Optional
Power Supply	28 VDC
Screen Size	10.4 inches
Number of Displays	2
AHRS	Yes
Air Data Computer (ADC)	Yes
GPS	Yes
Transponder	Yes
Input Method	knobs
Navigation	VOR, ILS, GPS
Traffic Avoidance	TAS/TCAS
Terrain Awareness	Yes, TAWS
