8.13 ABNORMAL OPERATION
SVS TROUBLESHOOTING
SVS is intended to be used with traditional attitude, heading, obstacle, terrain, and traffic inputs. SVS is
disabledwhenvalidattitudeorheadingdataisnotavailableforthedisplay.IncaseofinvalidSVSdata,thePFD
display reverts to the standard blue-over-brown attitude display.
SVS becomes disabled without the following data resources:
•Attitudedata
•Headingdata
•GPSpositiondata
•9Arc-secondTerraindata
•Obstacledata
•Terrainfunctionisnotavailable,intestmode,orfailed
•Thepositionoftheaircraftexceedstherangeoftheterraindatabase.
REVERSIONARY MODE
SVScanbedisplayedontheMultifunctionDisplay(MFD)inReversionaryMode.Ifitisenabledwhenswitching
toReversionaryMode,SVSwilltakeupto30secondstobedisplayed.Thestandard,non-SVSPFDdisplaywill
be shown in the interim.

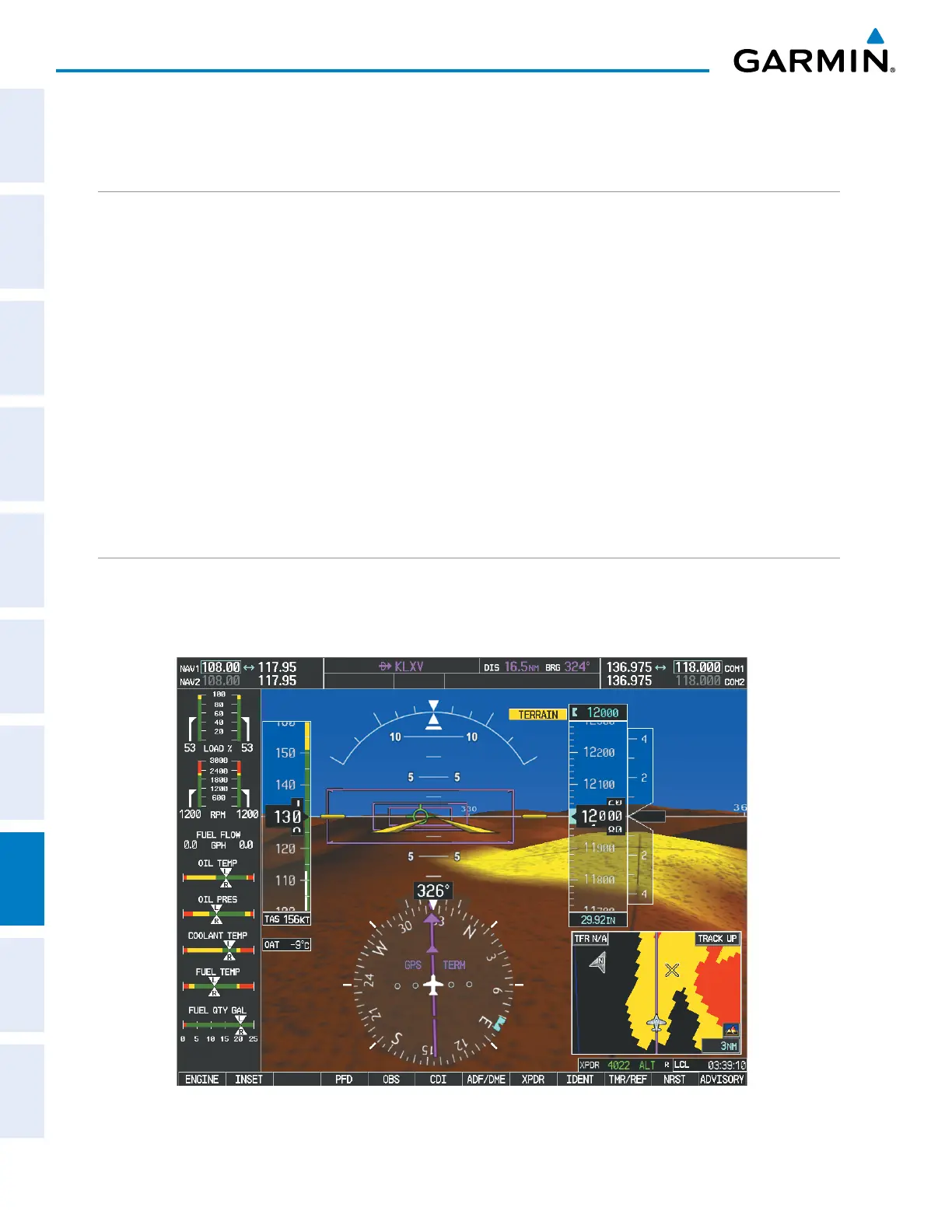

Figure 8-113 SVS Reversionary Mode

Garmin G1000 Diamond DA42NG Specifications

General

Display Type	LCD
Resolution	1024 x 768 pixels
Manufacturer	Garmin
Aircraft	Diamond DA42NG
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Audio Panel	Yes, integrated
Operating System	Proprietary
Weather Radar	Optional
Power Supply	28 VDC
Screen Size	10.4 inches
Number of Displays	2
AHRS	Yes
Air Data Computer (ADC)	Yes
GPS	Yes
Transponder	Yes
Input Method	knobs
Navigation	VOR, ILS, GPS
Traffic Avoidance	TAS/TCAS
Terrain Awareness	Yes, TAWS
