Garmin G1000 Diamond DA42NG User Manual

190-00962-02 Rev A
Garmin G1000 Pilot’s Guide for the Diamond DA42NG
101
AUDIO PANEL AND CNS
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICES INDEX
4.3 NAV OPERATION
NAV RADIO SELECTION AND ACTIVATION
TheNAVFrequencyBoxiscomposedoffourelds;twostandby fields and two active fields. The active
frequencies are on the right side and the standby frequencies are on the left.
A NAV radio is selected for navigation by pressing the CDI SoftkeylocatedonthePFD.TheactiveNAV
frequency selected for navigation is displayed in green. Pressing the CDI SoftkeyonceselectsNAV1asthe
navigation radio. Pressing the CDI Softkey a second time selects NAV2 as the navigation radio. Pressing the
CDI Softkey a third time activates GPS mode. Pressing the CDI SoftkeyagaincyclesbacktoNAV1.
While cycling through the CDI Softkeyselections,theNAVTuningBoxandtheFrequencyTransferArroware
placedintheactiveNAVFrequencyFieldandtheactiveNAVfrequencycolorchangestogreen.
The three navigation modes that can be cycled through are:
•VOR1(orLOC1)–IfNAV1isselected,agreen single line arrow (not shown) labeled either VOR1orLOC1
isdisplayedontheHSIandtheactiveNAV1frequencyisdisplayedingreen.
•VOR2(orLOC2)–IfNAV2isselected,agreen double line arrow (shown) labeled either VOR2 or LOC2 is
displayedontheHSIandtheactiveNAV2frequencyisdisplayedingreen.
•GPS–IfGPSModeisselected,amagentasinglelinearrow(notshown)appearsontheHSIandneitherNAV
radio is selected. Both active NAV frequencies are then displayed in white.

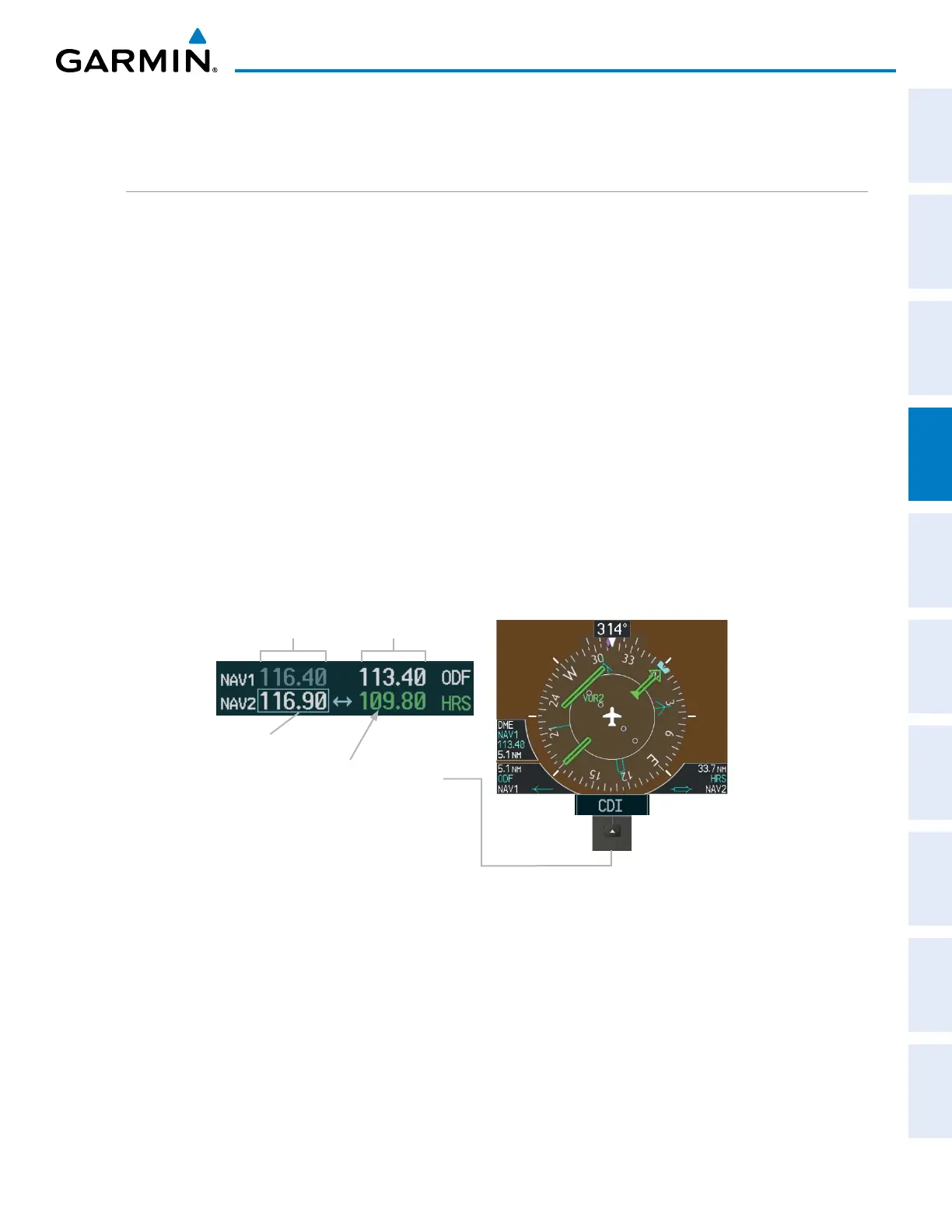

Figure 4-17 Selecting a NAV Radio for Navigation
Active
Fields
Standby
Fields
Tuning Box
The NAV Radio is
Selected by Pressing
the
CDI Softkey
SeetheFlightInstrumentsSectionforselectingtheDMEandBearingInformationwindowsandusingVOR
orADFasthesourceforthebearingpointer.

Garmin G1000 Diamond DA42NG Specifications

General

Display Type	LCD
Resolution	1024 x 768 pixels
Manufacturer	Garmin
Aircraft	Diamond DA42NG
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Audio Panel	Yes, integrated
Operating System	Proprietary
Weather Radar	Optional
Power Supply	28 VDC
Screen Size	10.4 inches
Number of Displays	2
AHRS	Yes
Air Data Computer (ADC)	Yes
GPS	Yes
Transponder	Yes
Input Method	knobs
Navigation	VOR, ILS, GPS
Traffic Avoidance	TAS/TCAS
Terrain Awareness	Yes, TAWS
