GFDS Weather Product Symbol
Expiration Time
(Minutes)
Refresh Rate
(Minutes)
Radar Precipitation
(PRECIP)
30
U.S.: 3*
Canada: 3*
†
Europe: 15
Australia: 15ˆ
Infrared Satellite
(IR SAT)
60 30
GFDS Data link Lightning
(DL LTNG)
30 Continuous
SIGMETs/AIRMETs
(SIG/AIR)
60 Continuous
Meteorological Aerodrome Report
(METARs)
90 Continuous
Winds Aloft
(WIND)
60 Continuous
Pilot Weather Report
(PIREPs)
90 Continuous
Temporary Flight Restrictions
(TFRs)
no product image 60 Continuous
Terminal Aerodrome Reports
(TAFs)
no product image 60 Continuous
* The composite precipitation image is updated every 3 minutes, but individual radar sites may take
between 3 and 10 minutes to provide new data.
†
Canadian radar precipitation data provided by Environment Canada.
ˆ Australian radar precipitation data provided by the Australian Bureau of Meteorology.

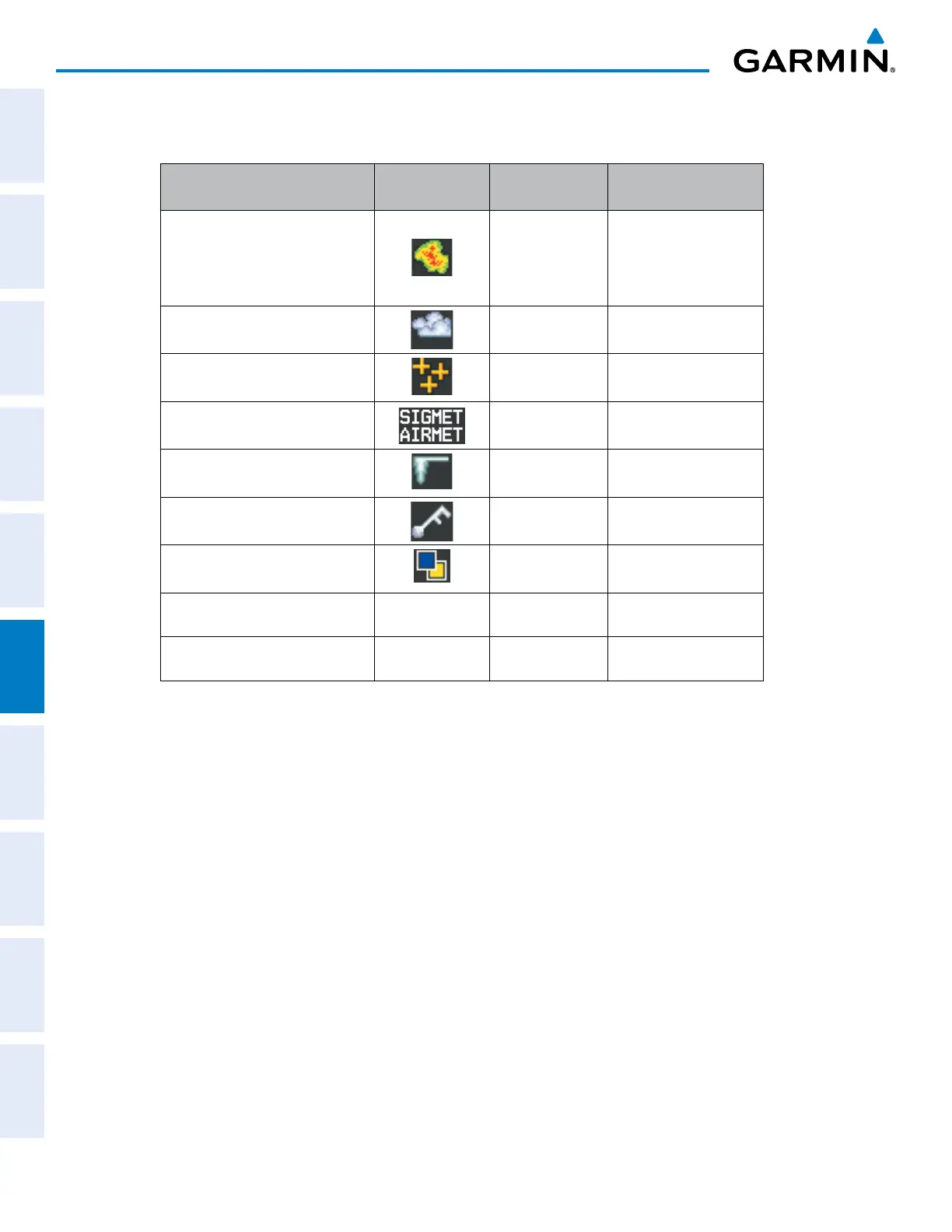

Table 6-5 GFDS Weather Product Symbols and Data Timing

Garmin G1000 Diamond DA42NG Specifications

General

Display Type	LCD
Resolution	1024 x 768 pixels
Manufacturer	Garmin
Aircraft	Diamond DA42NG
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Audio Panel	Yes, integrated
Operating System	Proprietary
Weather Radar	Optional
Power Supply	28 VDC
Screen Size	10.4 inches
Number of Displays	2
AHRS	Yes
Air Data Computer (ADC)	Yes
GPS	Yes
Transponder	Yes
Input Method	knobs
Navigation	VOR, ILS, GPS
Traffic Avoidance	TAS/TCAS
Terrain Awareness	Yes, TAWS
