INTERCOM
TheAudioPanelincludesafour-positionintercomsystem(ICS)forthepilot,copilotanduptotwopassengers.
The intercom provides Pilot and Copilot isolation from the passengers and aircraft radios.

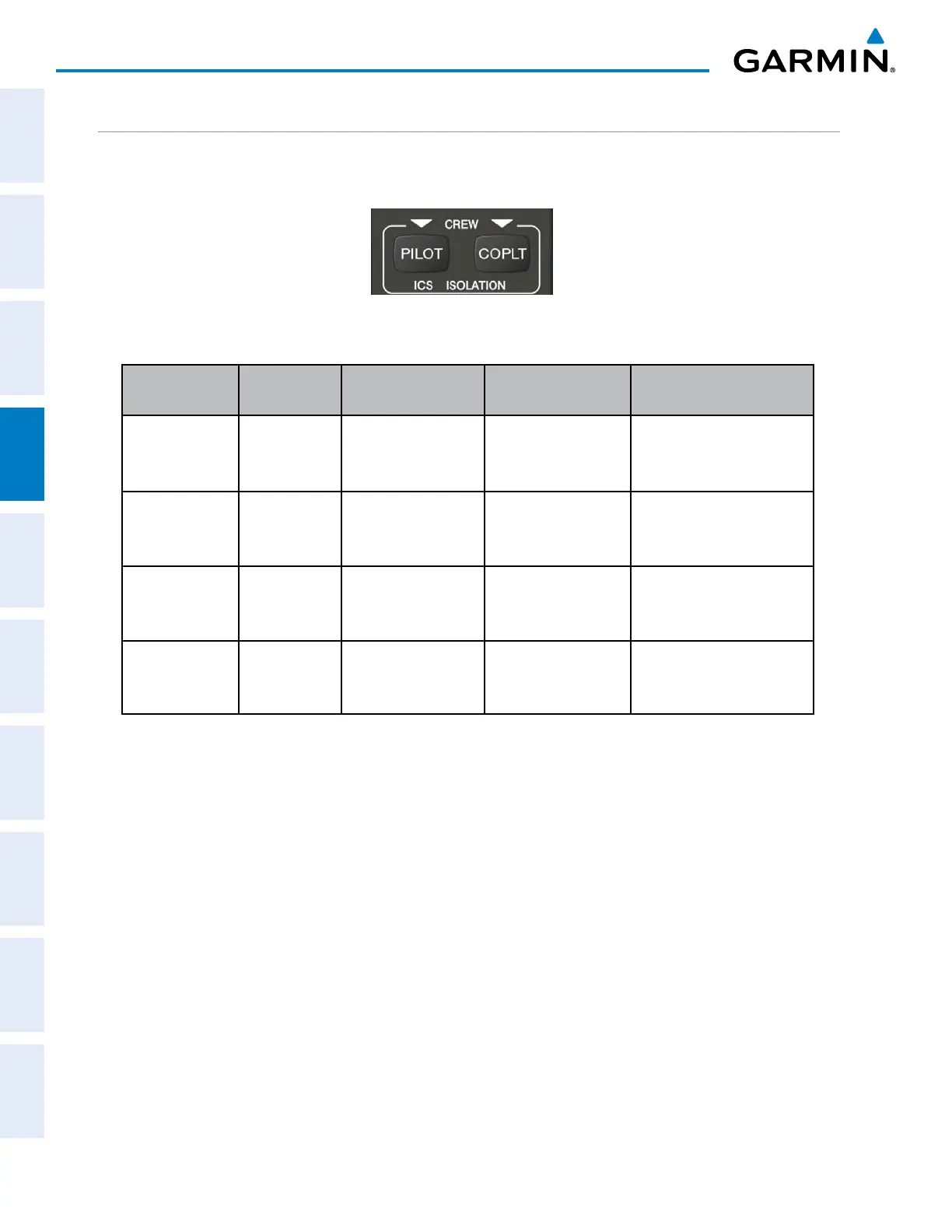

Figure 4-47 Intercom Controls
PILOT KEY
Annunciator
COPLT KEY
Annunciator
Pilot Hears Copilot Hears Passenger Hears
OFF OFF
Selected radios, aural
alerts, pilot, copilot,
passengers
Selected radios, aural
alerts, pilot, copilot,
passengers
Selected radios, aural alerts,
pilot, copilot, passengers
ON OFF
Selected radios, aural
alerts, pilot
Copilot, passengers Copilot, passengers
OFF ON
Selected radios,
aural alerts, pilot;
passengers
Copilot
Selected radios, aural alerts,
pilot, passengers
ON ON
Selected radios, aural
alerts, pilot, copilot
Selected radios, aural
alerts, pilot, copilot
Passengers
Table 4-1 ICS Isolation Modes
PilotisolationisselectedwhenthePILOTAnnunciatorisilluminated.DuringPilotisolation,thepilotcan
hear the selected radios and aural alerts and warnings. The copilot and passengers can communicate with each
other. The copilot is isolated from aural alerts and warnings.
Copilot isolation is selected when the COPLT Annunciator is illuminated. The copilot is isolated from the
selected radios, aural alerts, and warnings, and everyone else. The pilot and passengers can hear the selected
radios, aural alerts, and communicate with each other.
WhenboththePILOTandCOPLTAnnunciatorsareilluminated,thepilotandcopilotcanheartheselected
radios, aural alerts, and communicate with each other. The passengers are isolated from the pilot and copilot
but can communicate with each other.
WhenboththePILOTandCOPLTAnnunciatorsareextinguished,everyonehearstheselectedradios,aural
alerts, and is able to communicate with everyone else.
