190-00962-02 Rev A
Garmin G1000 Pilot’s Guide for the Diamond DA42NG
93
AUDIO PANEL AND CNS
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICES INDEX
TRANSMIT/RECEIVE INDICATIONS
During COM transmission, a white TX appears by the active COM frequencyreplacingthe Frequency
Transfer Arrow. On the Audio Panel, when the active COM is transmitting, the active transceiver
COM MIC
Key Annunciator flashes approximately once per second.
During COM signal reception, a white RXappearsbytheactiveCOMfrequencyreplacingtheFrequency
TransferArrow. Entertainmentaudio,if selected, ismutedduringactive COM radioreception. Referto
AdditionalAudioPanelFunctionslaterinthissection,anddetailsontheDataLinkReceiverintheAdditional
FeaturesSection.

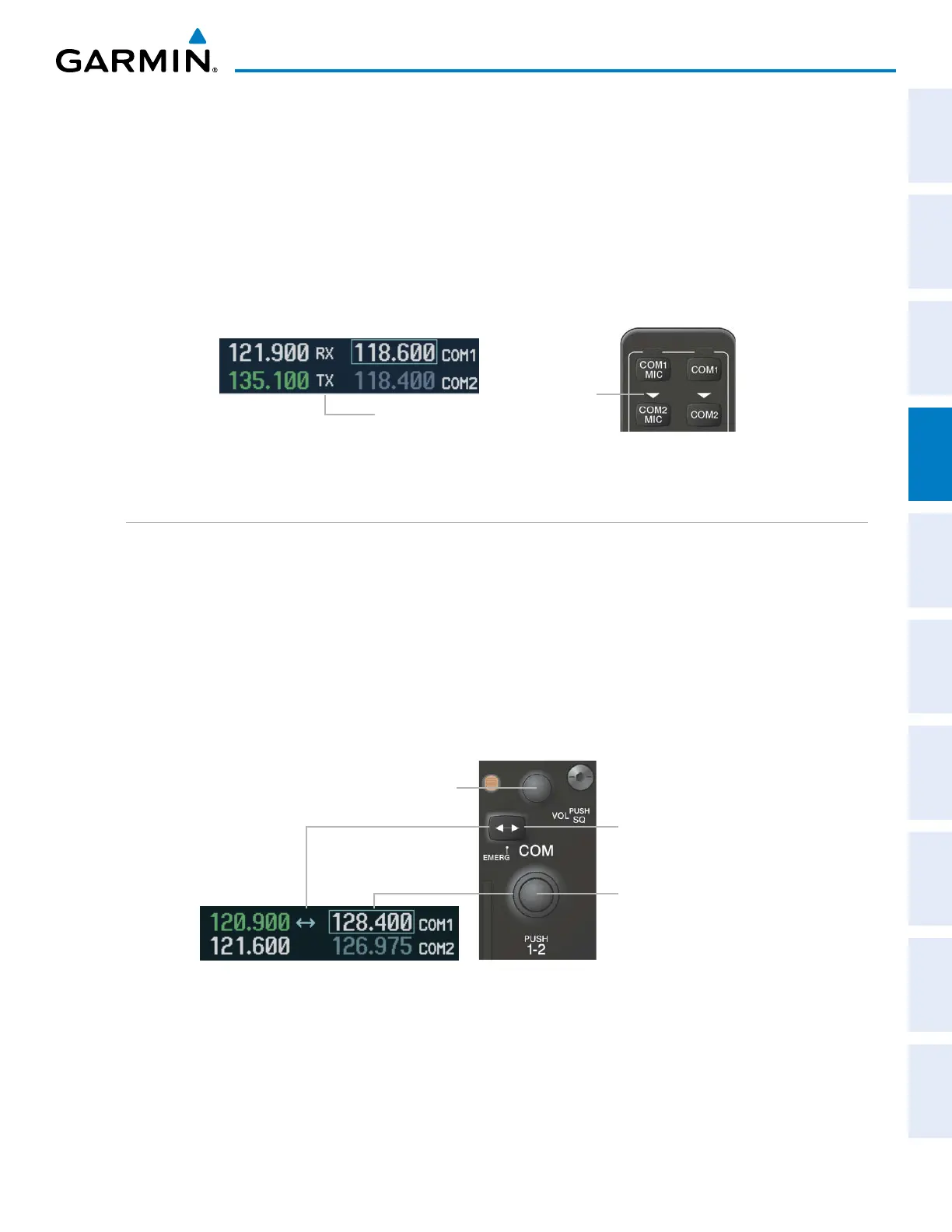

Figure 4-4 COM Radio Transmit and Receive Indications
Annunciator
Flashes During
Transmission
Transmit and
Receive Indicators
COM TRANSCEIVER MANUAL TUNING
TheCOMfrequencycontrolsandfrequencyboxesareontherightsideoftheMFDandPFD.
Manually tuning a COM frequency:
1) Turn the COM Knob to tune the desired frequency in the COM Tuning Box (large knob for MHz; small knob for
kHz).
2) Press the
Frequency Transfer
Key to transfer the frequency to the active field.
3) Adjust the volume level with the COM VOL/SQ Knob.
4) Press the COM VOL/SQ Knob to turn automatic squelch on and off.
Turn the
VOL/SQ
Knob to adjust
volume. Press the Knob to Turn
Automatic Squelch On or Off
Press the
Frequency Transfer
Key to Transfer COM
Frequencies Between Active
and Standby Frequency Boxes
Turn the
COM
Knob to
Tune the Frequency in
the Tuning Box
Figure 4-5 COM Frequency Tuning
