Additionalinformationaboutobstaclescanbedisplayedbypanningoverthedisplayonthemap.Themap
panning feature is enabled by pressing the RANGE Knob.ThemaprangeisadjustedbyturningtheRANGE
Knob.Ifthemaprangeisadjustedwhilepanningisenabled,themapisre-centeredontheMapPointer.

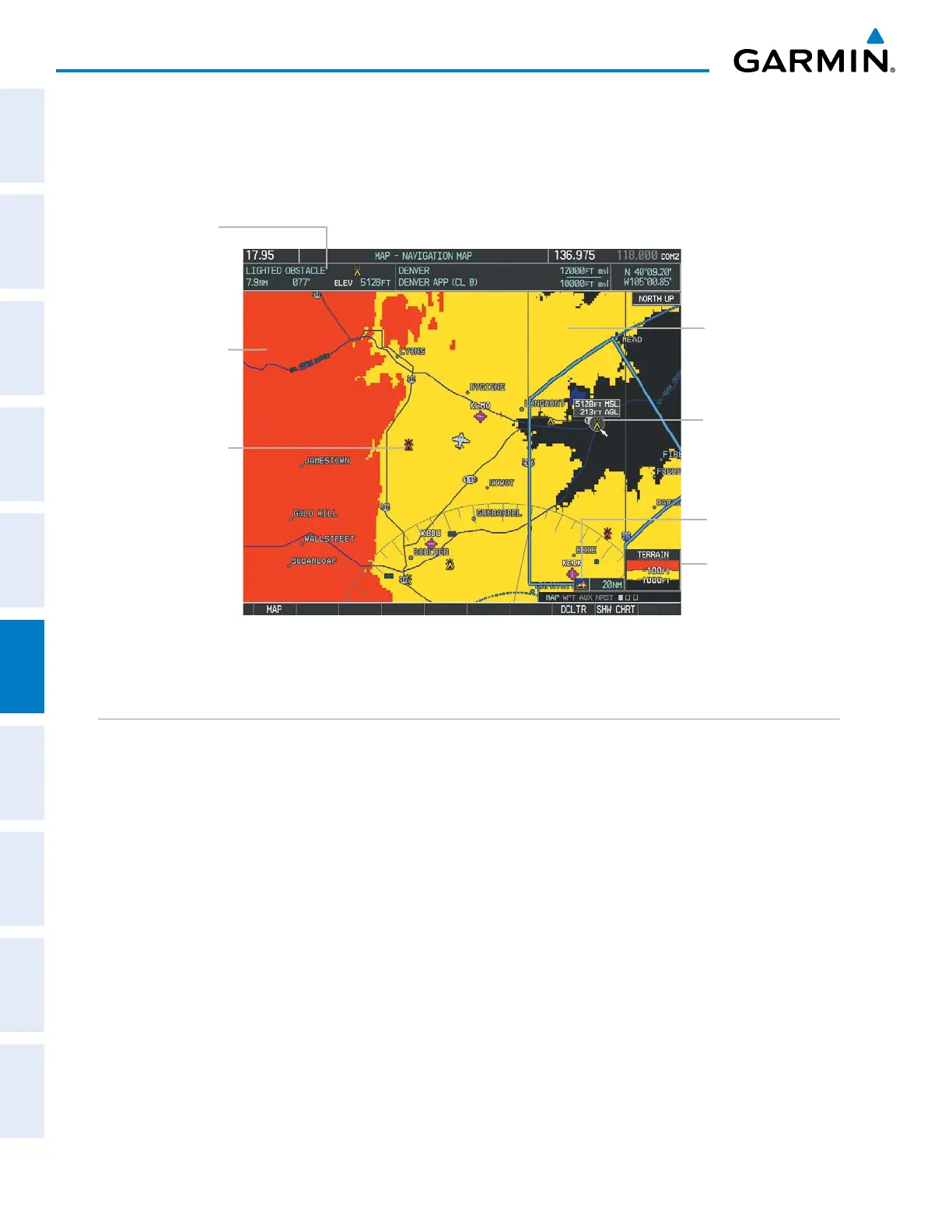

Figure 6-139 Terrain Information on the Navigation Map Page
Additional
Information on
Obstacle Selected
with Map Pointer
Yellow Terrain Area
(Between 100’ and
1000’ Below Aircraft
Altitude)
Red Lighted
Obstacles
(Above or Within
100’ Below Aircraft
Altitude)
Lighted Obstacle
Selected with Map
Pointer
Terrain Legend
Terrain Display
Enabled Icon
Red Terrain Area
(Above or Within
100’ Below Aircraft
Altitude)
TERRAIN PROXIMITY PAGE
TheTerrainProximityPageisspecializedtoshowterrainandobstacledatainrelationtotheaircraft’scurrent
altitude,withoutclutterfromthebasemap.Aviationdata(airports,VORs,andotherNAVAIDs)canbedisplayed
for reference.
Aircraftorientationonthismapisalwaysheadingupunlessthereisnovalidheading.Twoviewsareavailable
relativetothepositionoftheaircraft:the360°defaultdisplayandtheradar-likeARC(120°)display.Maprange
isadjustablewiththeRANGE Knobfrom1to200nm,asindicatedbythemaprangerings(orarcs).
Displaying the Terrain Proximity Page:
1) Turn the large FMS Knob to select the Map Page Group.
2) Turn the small FMS Knob to select the Terrain Proximity Page.
3) To change the view,
a) Press the VIEW Softkey.
b) Press the 360 or ARC Softkey to select the desired view.
Or:
a) Press the MENU Key.
b) Select ‘View Arc’ or ‘View 360º’ (choice dependent on current state) and press the ENT Key to change the view.
