Garmin G1000 Diamond DA42NG User Manual

190-00962-02 Rev. A
Garmin G1000 Pilot’s Guide for the Diamond DA42NG 397
HAZARD AVOIDANCE
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICES INDEX
6) Turn the small FMS Knob to scroll through options for each product (ON/OFF, range settings).
7) Press the ENT Key to select an option.
8) Press the FMS Knob or CLR Key to return to the Navigation Map Page with the changed settings.

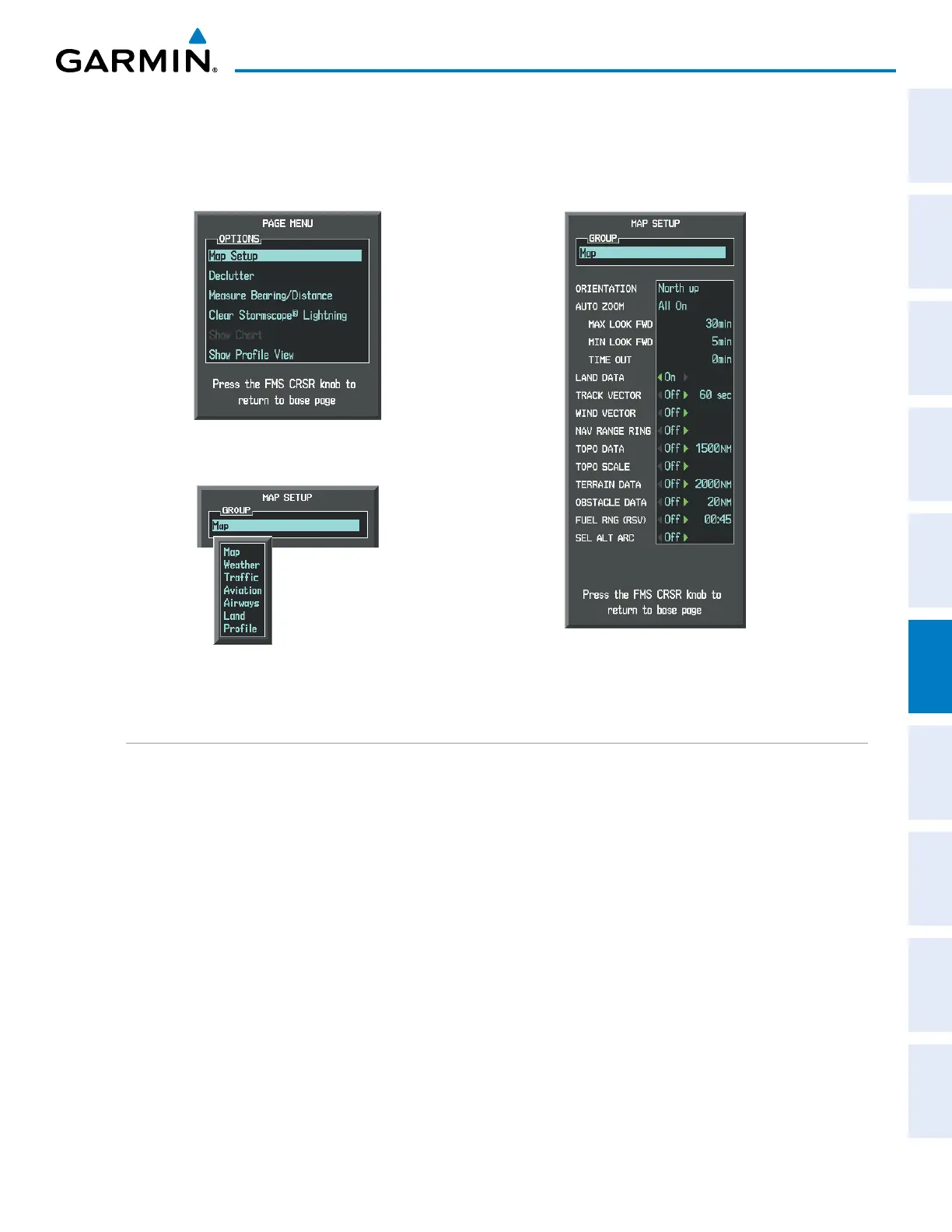

Figure 6-150 Navigation Map Page Setup Menu
Figure 6-149 Navigation Map Page Menu
Figure 6-151 Navigation Map Page Setup Menu, Map Group
TERRAIN-SVS PAGE
TheTerrain-SVSPageisspecializedtoshowterrain,obstacle,andpotentialimpactpointdatainrelationto
theaircraft’scurrentaltitude,withoutclutterfromthebasemap.ItistheprincipalmappageforviewingTerrain-
SVSdata.Aviationdata(airports,VORs,andotherNAVAIDs)canbedisplayedforreference.Ifanobstacleand
theprojectedightpathoftheaircraftintersect,thedisplayautomaticallyzoomsintotheclosestpotentialpoint
ofimpactontheTerrain-SVSPage.
Aircraftorientationonthismapisalwaysheadingupunlessthereisnovalidheading.Twoviewsareavailable
relativetothepositionoftheaircraft:the360°defaultdisplayandtheradar-likeARC(120°)display.Maprange
isadjustablewiththeRANGE Knobfrom1to200nm,asindicatedbythemaprangerings(orarcs).
Displaying the Terrain-SVS Page:
1) Turn the large FMS Knob to select the Map Page Group.
2) Turn the small FMS Knob to select the Terrain-SVS Page.
Changing the Terrain-SVS Page view:
1) Press the VIEW Softkey.
2) Press the 360 or ARC Softkey to select the desired view.

Garmin G1000 Diamond DA42NG Specifications

General

Display Type	LCD
Resolution	1024 x 768 pixels
Manufacturer	Garmin
Aircraft	Diamond DA42NG
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Audio Panel	Yes, integrated
Operating System	Proprietary
Weather Radar	Optional
Power Supply	28 VDC
Screen Size	10.4 inches
Number of Displays	2
AHRS	Yes
Air Data Computer (ADC)	Yes
GPS	Yes
Transponder	Yes
Input Method	knobs
Navigation	VOR, ILS, GPS
Traffic Avoidance	TAS/TCAS
Terrain Awareness	Yes, TAWS
