190-00962-02 Rev. A

Garmin G1000 Pilot’s Guide for the Diamond DA42NG

449

AUTOMATIC FLIGHT CONTROL SYSTEM

SYSTEM

OVERVIEW

FLIGHT

INSTRUMENTS

EIS

AUDIO PANEL

& CNS

FLIGHT

MANAGEMENT

HAZARD

AVOIDANCE

AFCS

ADDITIONAL

FEATURES

APPENDICES INDEX

ROLL HOLD MODE (ROL)

NOTE: If Roll Hold Mode is activated as a result of a mode reversion, the ﬂight director rolls the wings

level.

Whentheightdirectorisactivated,RollHoldModeisselectedbydefault.Thismodeisannunciatedas

‘ROL’intheAFCSStatusBox.Thecurrentaircraftbankangleisheld,subjecttothebankangleconditionslisted

in Table 7-4.

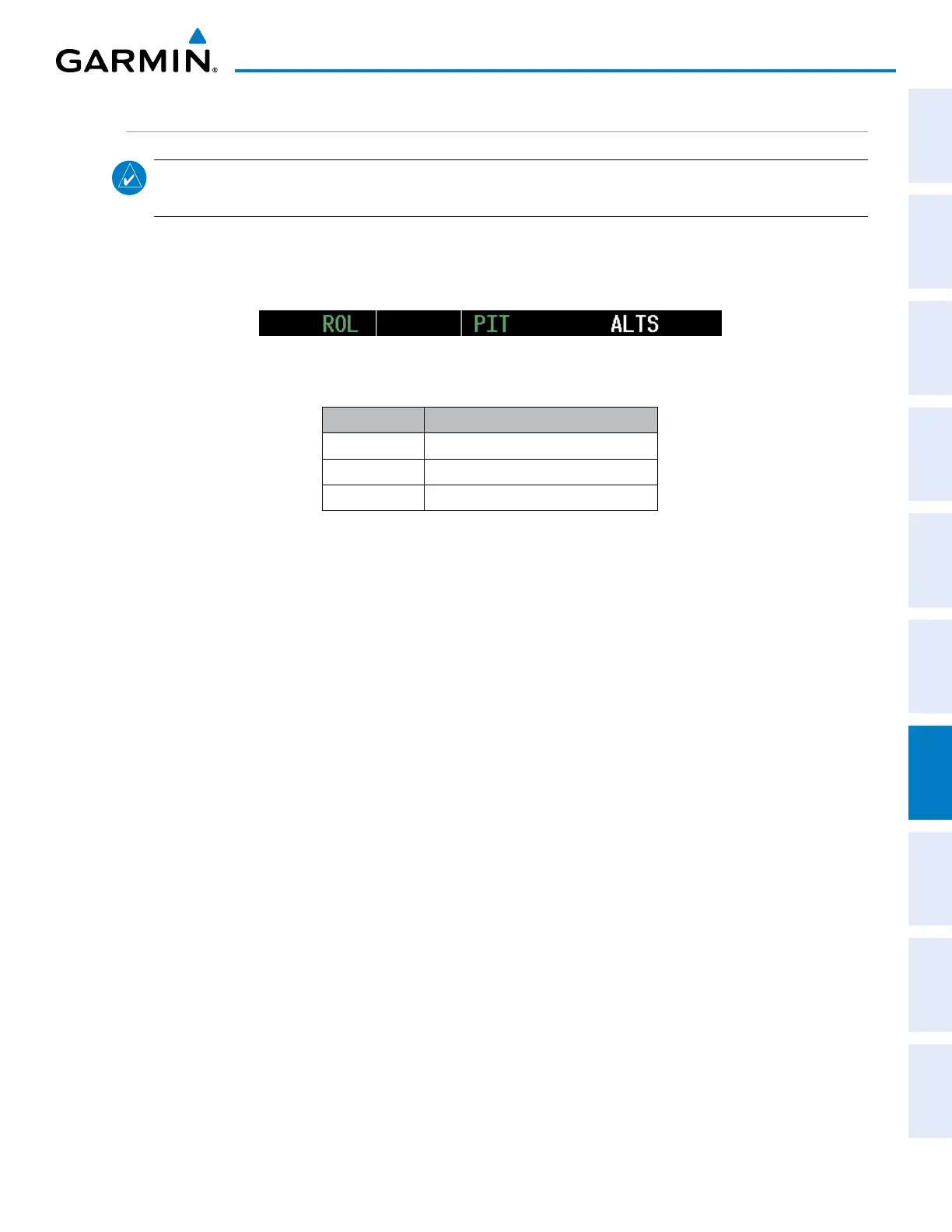

Figure 7-21 Roll Hold Mode Annunciation

Bank Angle Flight Director Response

< 6° Rolls wings level

6 to 25° Maintains current aircraft roll attitude

> 25° Limits bank to 25°

Table 7-4 Roll Hold Mode Responses

CHANGING THE ROLL REFERENCE

The roll reference can be changed by pressing the

CWS

Button, establishing the desired bank angle, then

releasing the

CWS

Button.
