Garmin G1000 Diamond DA42NG User Manual

190-00962-02 Rev. A
Garmin G1000 Pilot’s Guide for the Diamond DA42NG
557
ADDITIONAL FEATURES
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICES INDEX
ROLL ENGAGEMENT
RollLimitIndicatorsaredisplayedontherollscaleat45°rightandleft,indicatingwhereESP
™
will engage
(seeFigure8-98).Asrollattitudeexceeds45°,ESP
™
willengageandtheon-sideRollLimitIndicatorwillmove
to30°,asshowninFigure8-99.TheRollLimitIndicatorisnowshowingwhereESP
™
will disengage as roll
attitude decreases to within the desirable roll attitude range.
Roll Limit Indicator
ESP Engage (45°)

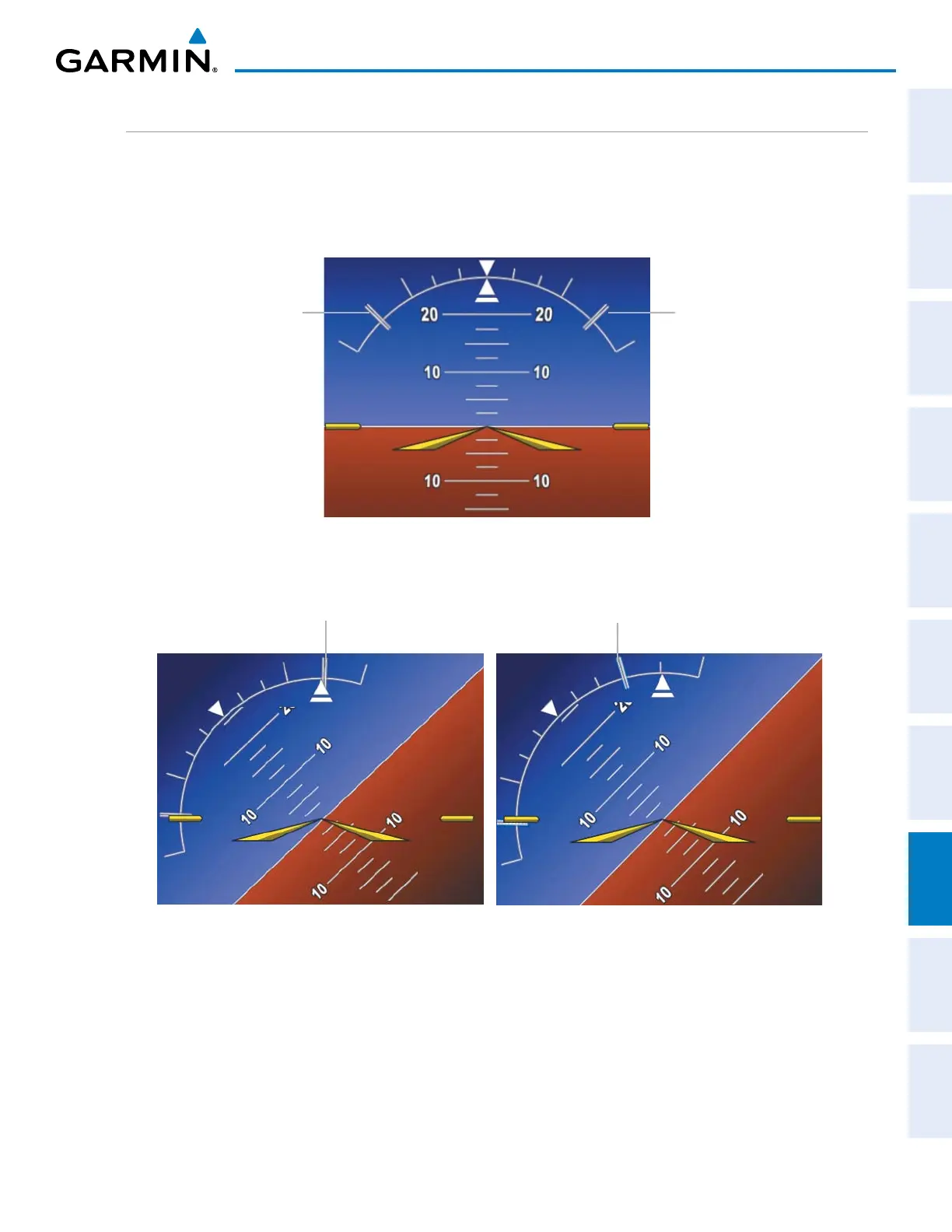

Figure 8-98 ESP Roll Engagement Indication (ESP NOT Engaged)
Roll Limit Indicator
ESP Engage (45°)
Before ESP Engage After ESP Engage
ESP Engage (45°)
Aircraft Roll Attitude = 44°
ESP Disengage (30°)
Aircraft Roll Attitude = 46°
Figure 8-99 Roll Increasing to ESP Engagement

Garmin G1000 Diamond DA42NG Specifications

General

Display Type	LCD
Resolution	1024 x 768 pixels
Manufacturer	Garmin
Aircraft	Diamond DA42NG
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Audio Panel	Yes, integrated
Operating System	Proprietary
Weather Radar	Optional
Power Supply	28 VDC
Screen Size	10.4 inches
Number of Displays	2
AHRS	Yes
Air Data Computer (ADC)	Yes
GPS	Yes
Transponder	Yes
Input Method	knobs
Navigation	VOR, ILS, GPS
Traffic Avoidance	TAS/TCAS
Terrain Awareness	Yes, TAWS
