Garmin G1000 Pilot’s Guide for the Diamond DA42NG
190-00962-02 Rev. A30
SYSTEM OVERVIEW
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICESINDEX
PAGE GROUPS
NOTE: Refer to other supporting sections in this Pilot’s Guide for details on specific pages.
Information on the MFD is presented on pages which are grouped according to function. The page group and
active page title are displayed in the upper center of the screen, below the Navigation Status Box. In the bottom
right corner of the screen, the current page group, number of pages available in the group, and placement of
the current page within the group are indicated by icons. For some of these pages (Airport/Procedures/Weather
Information, XM, Procedure Loading), the title of the page changes while the page icon remains the same.

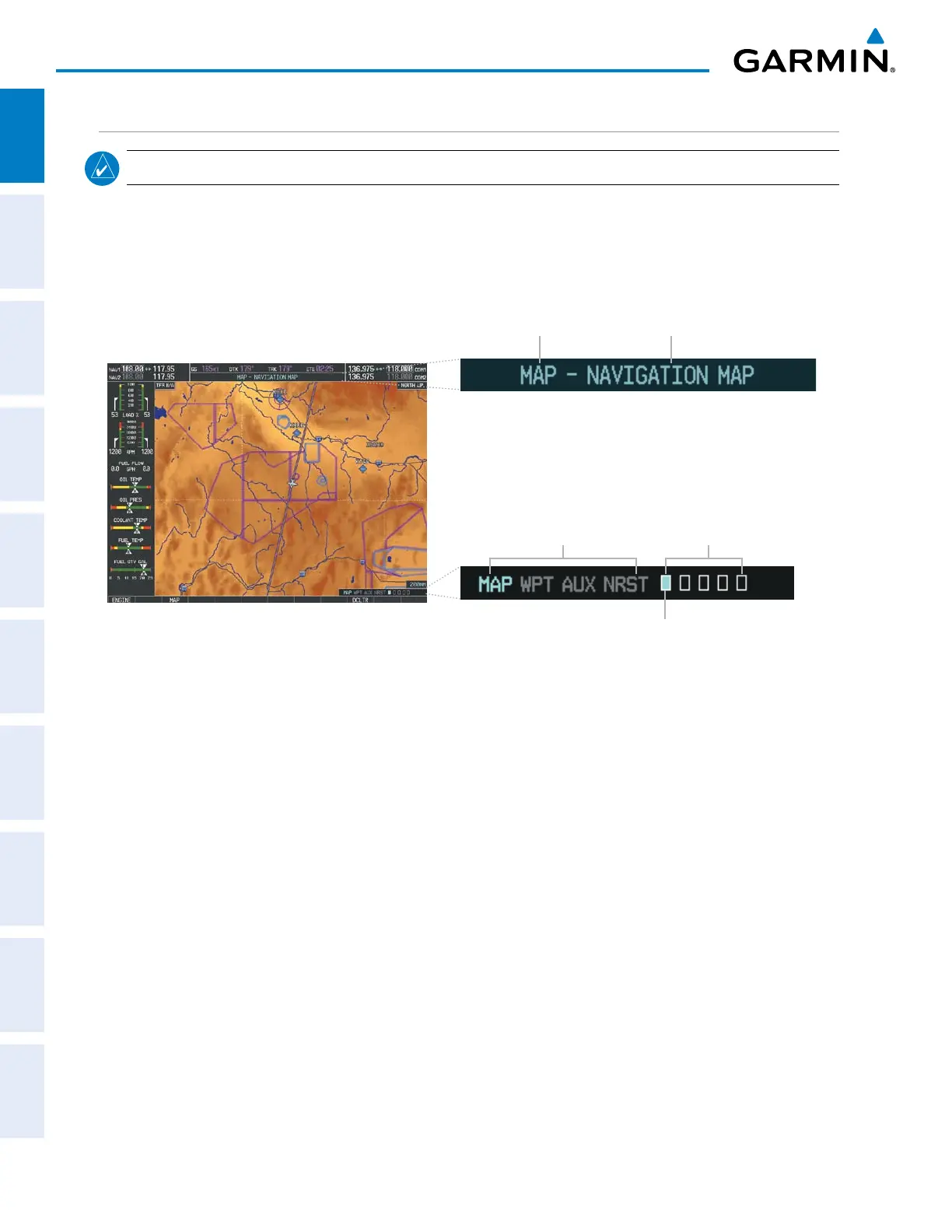

Figure 1-22 Page Title and Page Group Icons
MFD
Page Group Active Page Title
Page Groups
Selected Page
Pages in Current Group
There are four main page groups, navigated using the FMS Knob; specific pages within each group can vary
depending on the configuration of optional equipment.
Selecting a page using the FMS Knob:
1) Turn the
large FMS
Knob until the desired page group is selected.
2)
Turn
the
small FMS
Knob until the desired page is selected.
There are also several pages (Airport/Procedures/Weather Information and XM pages) which are selected first
from within a main page group with the FMS Knob, then with the appropriate softkey at the bottom of the page
(or from the page menu). In this case, the page remains set to the selected page until a different page softkey is
selected, even if a different page group is selected.
