2.4 ABNORMAL OPERATIONS
ABNORMAL GPS CONDITIONS
TheannunciationslistedinthetablecanappearontheHSIwhenabnormalGPSconditionsoccur.
Annunciation Location Description
LOI
Lower left of
aircraft symbol
Loss of Integrity Monitoring–GPS integrity is insufficient for the current
phase of flight
INTEG OK
Lower left of
aircraft symbol
Integrity OK–GPS integrity has been restored to within normal limits
(annunciation displayed for 5 seconds)
DR
Upper right of
aircraft symbol
Dead Reckoning–System is using projected position rather than GPS position
to compute navigation data and sequence active flight plan waypoints
Table 2-3 Abnormal GPS Conditions Annunciated on HSI

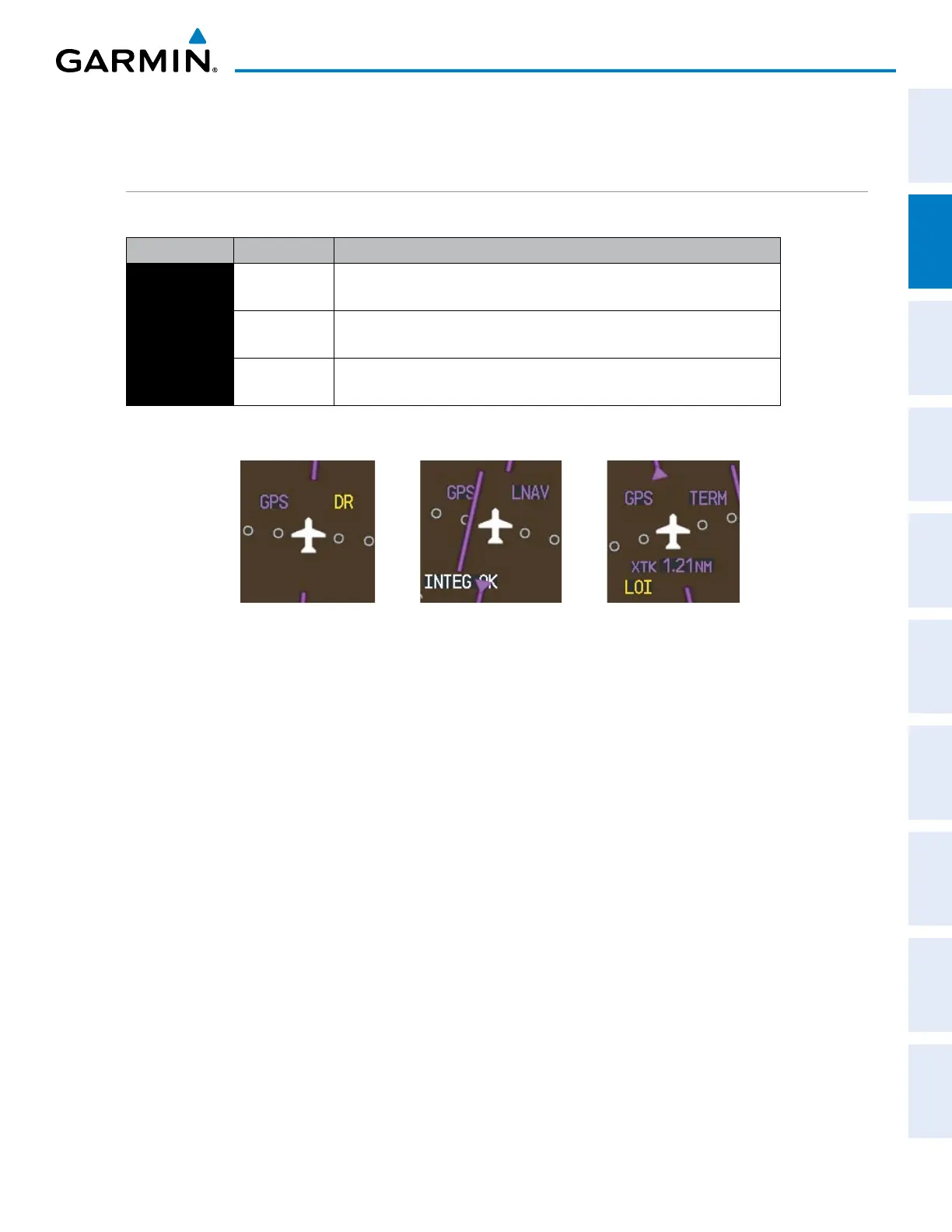

Figure 2-38 Example HSI Annunciations
InDeadReckoning(DR)ModetheCDIisremovedfromthedisplaywhenGPSistheselectednavigation
source. The following items on the PFD are then shown in yellow:
•CurrentTrackBug
•WindData(calculatedbasedonGPSinformation)
•DistancesintheBearingInformationWindows
•GPSbearingpointers
It is important to note that estimated navigation data supplied by the system in DR Mode may become
increasingly unreliable and must not be used as a sole means of navigation. Refer to the Flight Management
Section for more information on DR Mode
