Garmin G1000 Diamond DA42NG User Manual

Garmin G1000 Pilot’s Guide for the Diamond DA42NG
190-00962-02 Rev. A
436
AUTOMATIC FLIGHT CONTROL SYSTEM
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICESINDEX
ALTITUDE HOLD MODE (ALT)
AltitudeHoldModecanbeactivatedbypressingthe ALT Key;theightdirectormaintainsthecurrentaircraft
altitude (to the nearest 10 feet) as the AltitudeReference.Theightdirector’sAltitudeReference,showninthe
AFCSStatusBox,isindependentoftheSelectedAltitude,displayedabovetheAltimeter.AltitudeHoldMode
activeisindicatedbyagreen‘ALT’annunciationintheAFCSStatusBox.
AltitudeHoldModeisautomaticallyarmedwhentheightdirectorisinSelectedAltitudeCaptureMode(see
Figure7-6).SelectedAltitudeCaptureModeautomaticallytransitionstoAltitudeHoldModewhenthealtitude
errorislessthan50feet.Inthiscase,theSelectedAltitudebecomestheightdirector’sAltitudeReference.
CHANGING THE ALTITUDE REFERENCE
NOTE: Turning the ALT Knob while in Altitude Hold Mode changes the Selected Altitude, but not the flight
director’s Altitude Reference, and does not cancel the mode.
Withthe CWS Buttondepressed,theaircraftcanbehand-owntoanewAltitudeReference.Whenthe
CWS Button is released at the desired altitude, the new altitude is established as the Altitude Reference.

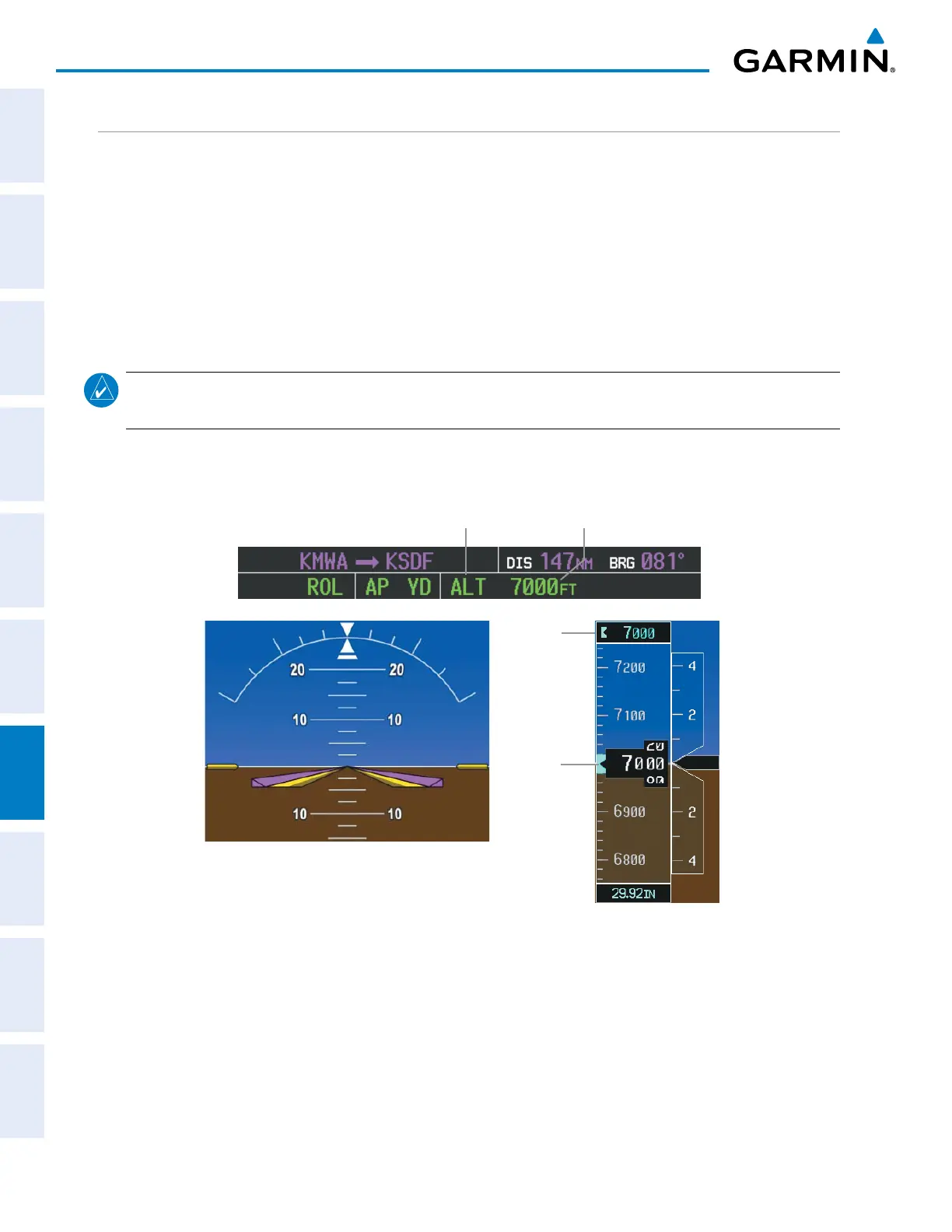

Figure 7-7 Altitude Hold Mode
Altitude Hold
Mode Active
Altitude
Reference
Command Bars Hold Pitch Attitude
to Maintain Altitude Reference
Selected
Altitude
Selected
Altitude
Bug

Garmin G1000 Diamond DA42NG Specifications

General

Display Type	LCD
Resolution	1024 x 768 pixels
Manufacturer	Garmin
Aircraft	Diamond DA42NG
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Audio Panel	Yes, integrated
Operating System	Proprietary
Weather Radar	Optional
Power Supply	28 VDC
Screen Size	10.4 inches
Number of Displays	2
AHRS	Yes
Air Data Computer (ADC)	Yes
GPS	Yes
Transponder	Yes
Input Method	knobs
Navigation	VOR, ILS, GPS
Traffic Avoidance	TAS/TCAS
Terrain Awareness	Yes, TAWS
