The VFRcodecanbeenteredeither manuallyor bypressingthe XPDR Softkey, then the VFR Softkey.
When the VFR Softkeyispressed,thepre-programmedVFRcodeisautomaticallydisplayedinthecodeeld
of the Transponder Data Box. Pressing the VFR Softkey again restores the previous identification code.
Thepre-programmedVFRCodeissetatthefactoryto1200.IfaVFRcodechangeisrequired,contacta
Garmin-authorized service center for configuration.

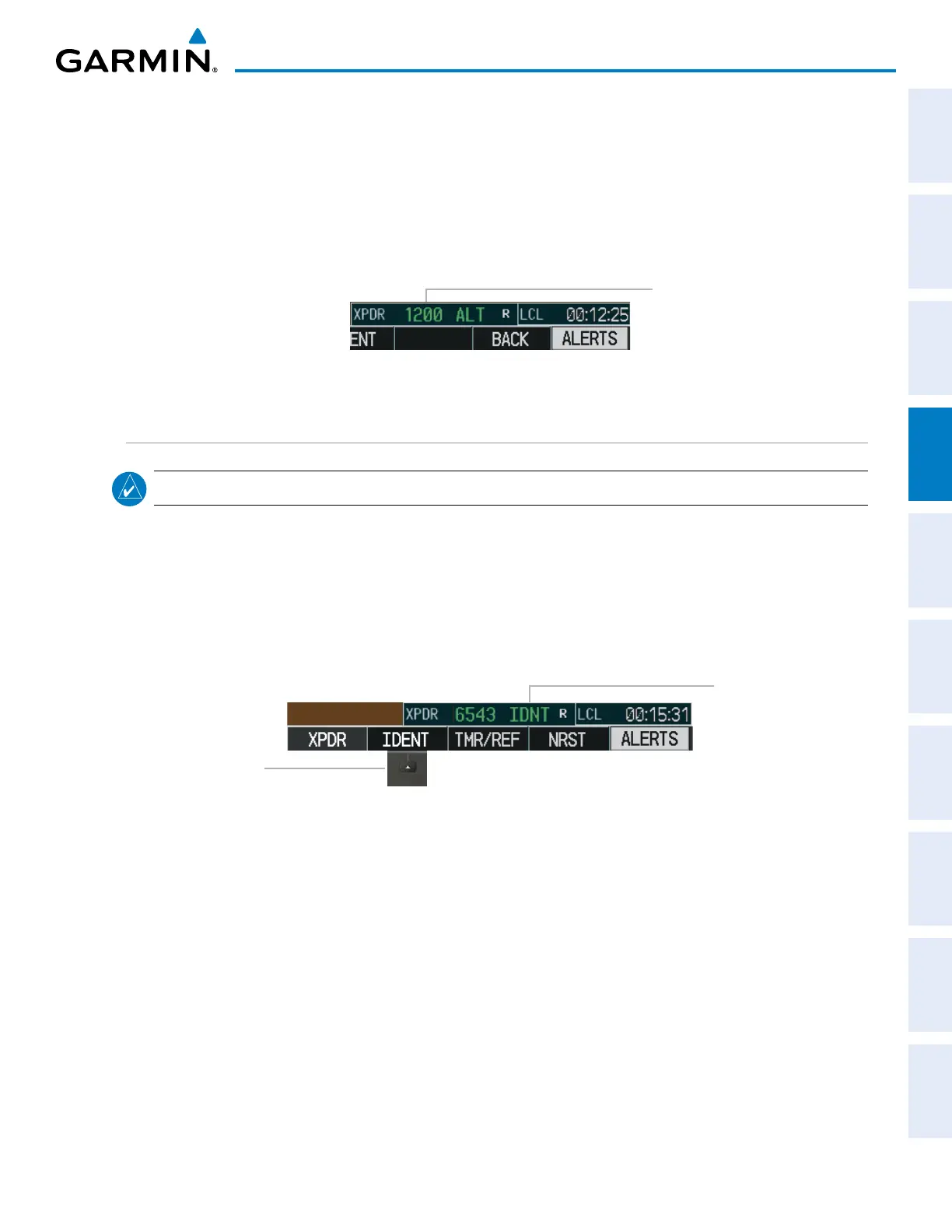

Figure 4-43 VFR Code
VFR Code
IDENT FUNCTION
NOTE: In Standby Mode, the IDENT Softkey is inoperative.
Pressing the IDENT Softkey sends a distinct identity indication to Air Traffic Control (ATC). The indication
distinguishes the identing transponder from all the others on the air traffic controller’s screen. The IDENT
Softkey appears on all levels of transponder softkeys. When the IDENT Softkey is pressed, a green IDNT
indicationisdisplayedinthemodeeldoftheTransponderDataBoxforadurationof18seconds.
After the IDENT Softkey is pressed while in Mode or Code Selection, the system reverts to the top-level
softkeys.
Press the
IDENT Softkey
to Initiate the
ID Function
IDNT
Indication
Figure 4-44 IDENT Softkey and Indication
