The following could cause the airway update to fail:
•Airwayidentier,entrywaypointorexitwaypointnotfoundinthenewdatabase.
•Airwayentry/exitwaypointisnotanacceptablewaypointfortheairway–eitherthewaypointisnolongeron
the airway, or there is a new directional restriction that prevents it being used.
•Loadingthenewairwaysequencewouldexceedthecapacityoftheightplan.
FLIGHT PLAN CREATION
There are three methods to create or modify a flight plan:
•ActiveFlightPlanPageontheMFD(create/modifytheactiveightplan)
•ActiveFlightPlanWindowonthePFD(create/modifytheactiveightplan)
•FlightPlanCatalogPageontheMFD(create/modifyastoredightplan)

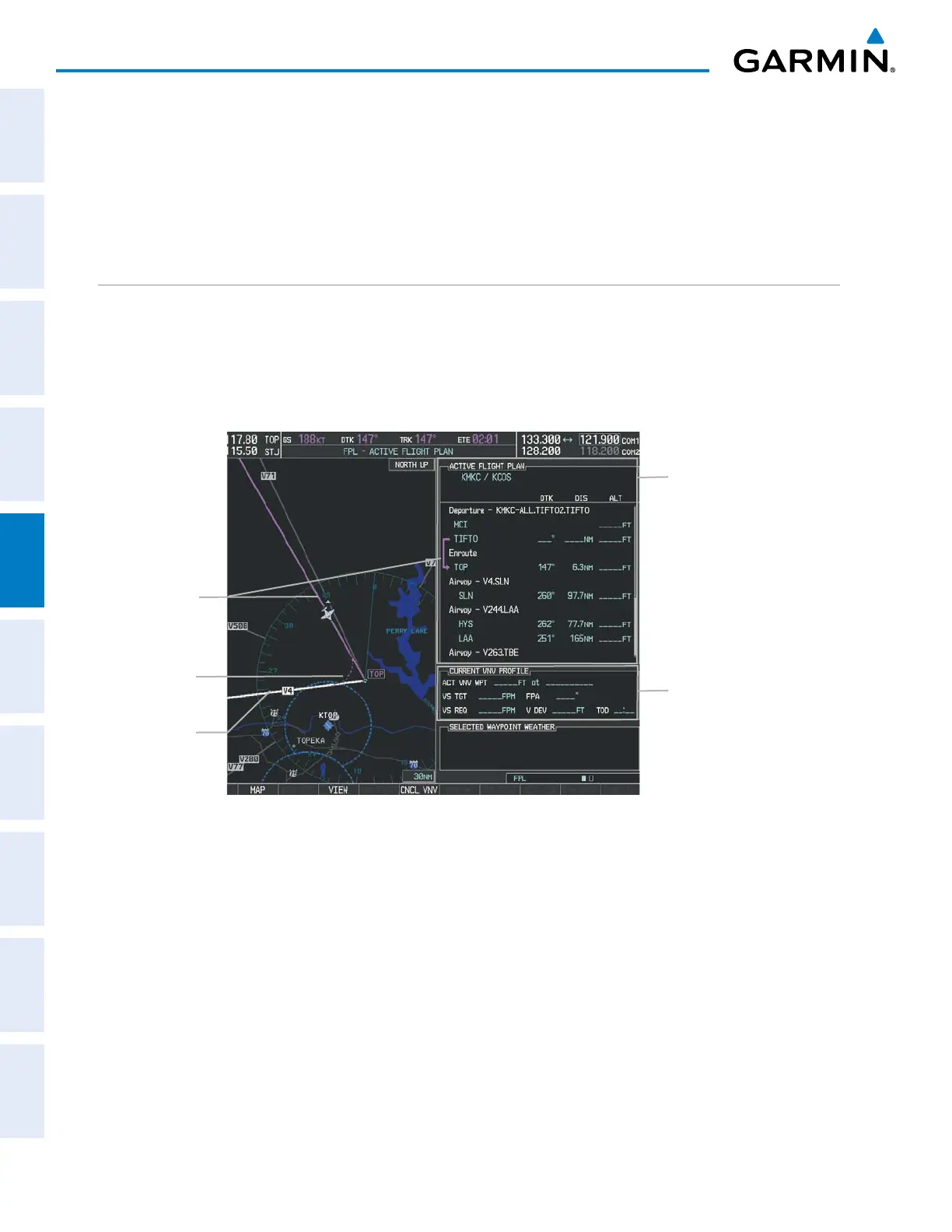

Figure 5-56 Active Flight Plan Page
Active FPL Waypoint List
- Comment
- Procedure Header
- Waypoint Identifier
- Airway Identifier
- Desired Track to Waypoint
- Distance to Waypoint
- Waypoint Altitude Constraint
Vertical Navigation Profile
- Active Vertical WPT Alt/ID
- Vertical Speed Target
- Flight Path Angle
- Vertical Speed Target
- Time to Top of Descent
- Vertical Deviation
Active Flight
Plan Leg
Turn Anticipation
Arc
Non-Active,
Flight Plan Leg

Garmin G1000 Diamond DA42NG Specifications

General

Display Type	LCD
Resolution	1024 x 768 pixels
Manufacturer	Garmin
Aircraft	Diamond DA42NG
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Audio Panel	Yes, integrated
Operating System	Proprietary
Weather Radar	Optional
Power Supply	28 VDC
Screen Size	10.4 inches
Number of Displays	2
AHRS	Yes
Air Data Computer (ADC)	Yes
GPS	Yes
Transponder	Yes
Input Method	knobs
Navigation	VOR, ILS, GPS
Traffic Avoidance	TAS/TCAS
Terrain Awareness	Yes, TAWS
