5.2 USING MAP DISPLAYS
Map displays are used extensively in the G1000 to provide situational awareness in flight. Most G1000 maps
can display the following information:
•Airports, NAVAIDs, airspaces, airways, land data
(highways, cities, lakes, rivers, borders, etc.) with
names
•Map Pointer information (distance and bearing to
pointer, location of pointer, name, and other pertinent
information)
•Maprange
•Wind direction and speed
•Maporientation
•Iconsforenabledmapfeatures
•Aircrafticon(representingpresentposition)
•Navrangering
•Fuelrangering
•Flightplanlegs
•Userwaypoints
•Trackvector
•Topographyscale
•Topographydata
•Obstacledata
MAP ORIENTATION
Maps are shown in one of four different orientation options, allowing flexibility in determining aircraft
position relative to other items on the map (north up) or for determining where map items are relative to where
the aircraft is going (track up, desired track up, or heading up). The map orientation is shown in the upper
right corner of the map.

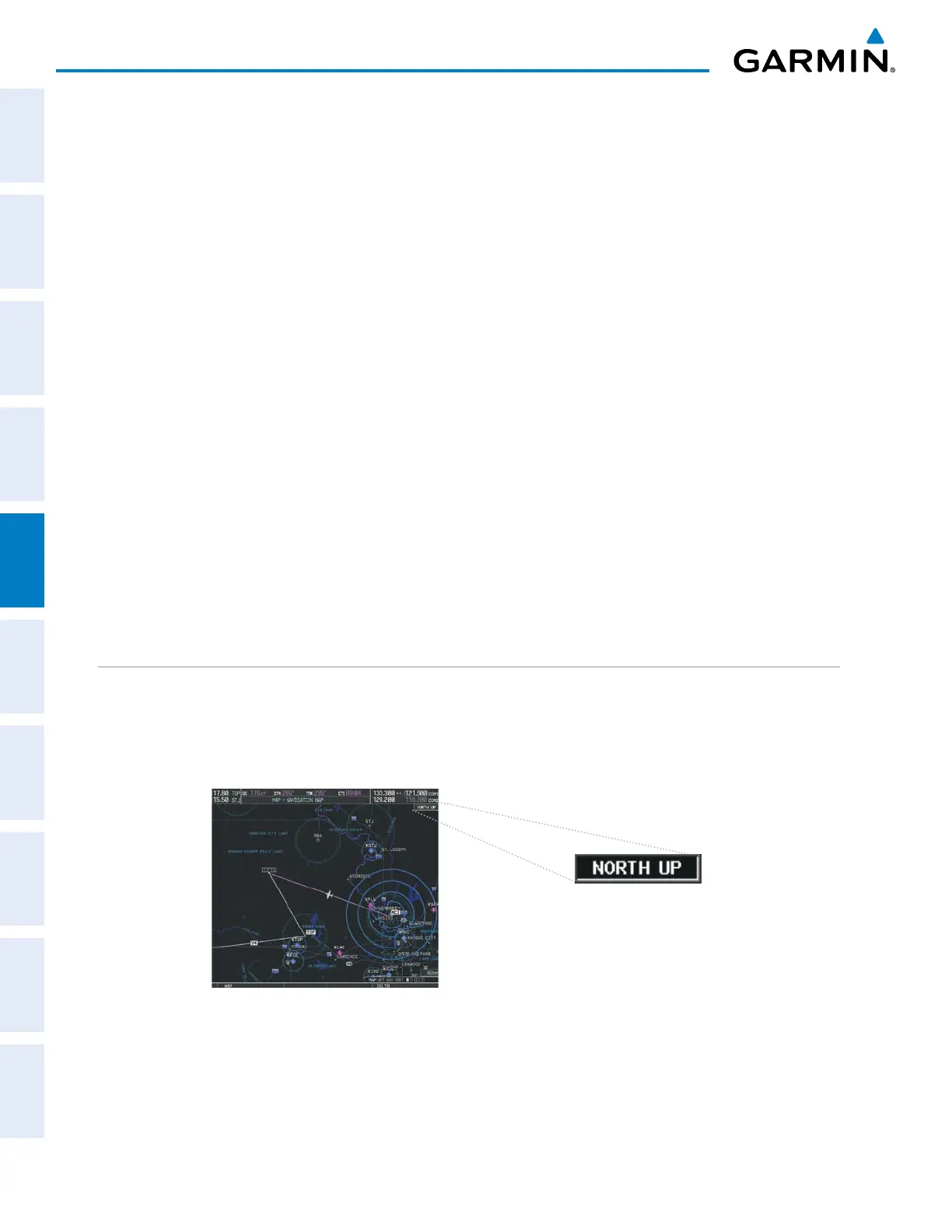

Figure 5-3 Map Orientation
•Northup(NORTHUP)alignsthetopofthemapdisplaytonorth(defaultsetting).
•Trackup(TRKUP)alignsthetopofthemapdisplaytothecurrentgroundtrack.
•Desiredtrackup(DTKUP)alignsthetopofthemapdisplaytothedesiredcourse.
•Headingup(HDGUP)alignsthetopofthemapdisplaytothecurrentaircraftheading.
•AllMapGroupPages(MAP)
•AllWaypointGroupPages(WPT)
•AUX-TripPlanning
•AllNearestGroupPages(NRST)
•FlightPlanPages(FPL)
•Direct-toWindow
•PFDInsetMap
•ProcedureLoadingPages
The information in this section applies to the following maps unless otherwise noted:

Garmin G1000 Diamond DA42NG Specifications

General

Display Type	LCD
Resolution	1024 x 768 pixels
Manufacturer	Garmin
Aircraft	Diamond DA42NG
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Audio Panel	Yes, integrated
Operating System	Proprietary
Weather Radar	Optional
Power Supply	28 VDC
Screen Size	10.4 inches
Number of Displays	2
AHRS	Yes
Air Data Computer (ADC)	Yes
GPS	Yes
Transponder	Yes
Input Method	knobs
Navigation	VOR, ILS, GPS
Traffic Avoidance	TAS/TCAS
Terrain Awareness	Yes, TAWS
