GLIDESLOPE MODE (GS)
NOTE: Pressing the CWS Button while Glideslope Mode is active does not cancel the mode. The autopilot
guides the aircraft back to the glideslope upon release of the CWS Button.
GlideslopeModeisavailableforLOC/ILSapproachestocaptureandtracktheglideslope.WhenGlideslope
Mode is armed (annunciated as ‘GS’ in white), LOC Approach Mode is armedas the lateral ight director
mode.
Selecting Glideslope Mode:
1) Ensure a valid localizer frequency is tuned.
2) Ensure that LOC is the selected navigation source (use the CDI Softkey to cycle through navigation sources).
3) Press the APR Key.
Or:
1) Ensure that GPS is the selected navigation source (use the CDI Softkey to cycle through navigation sources).
2) Ensure a LOC/ILS approach is loaded into the active flight plan.
3) Ensure the corresponding LOC frequency is tuned.
4) Press the APR Key.

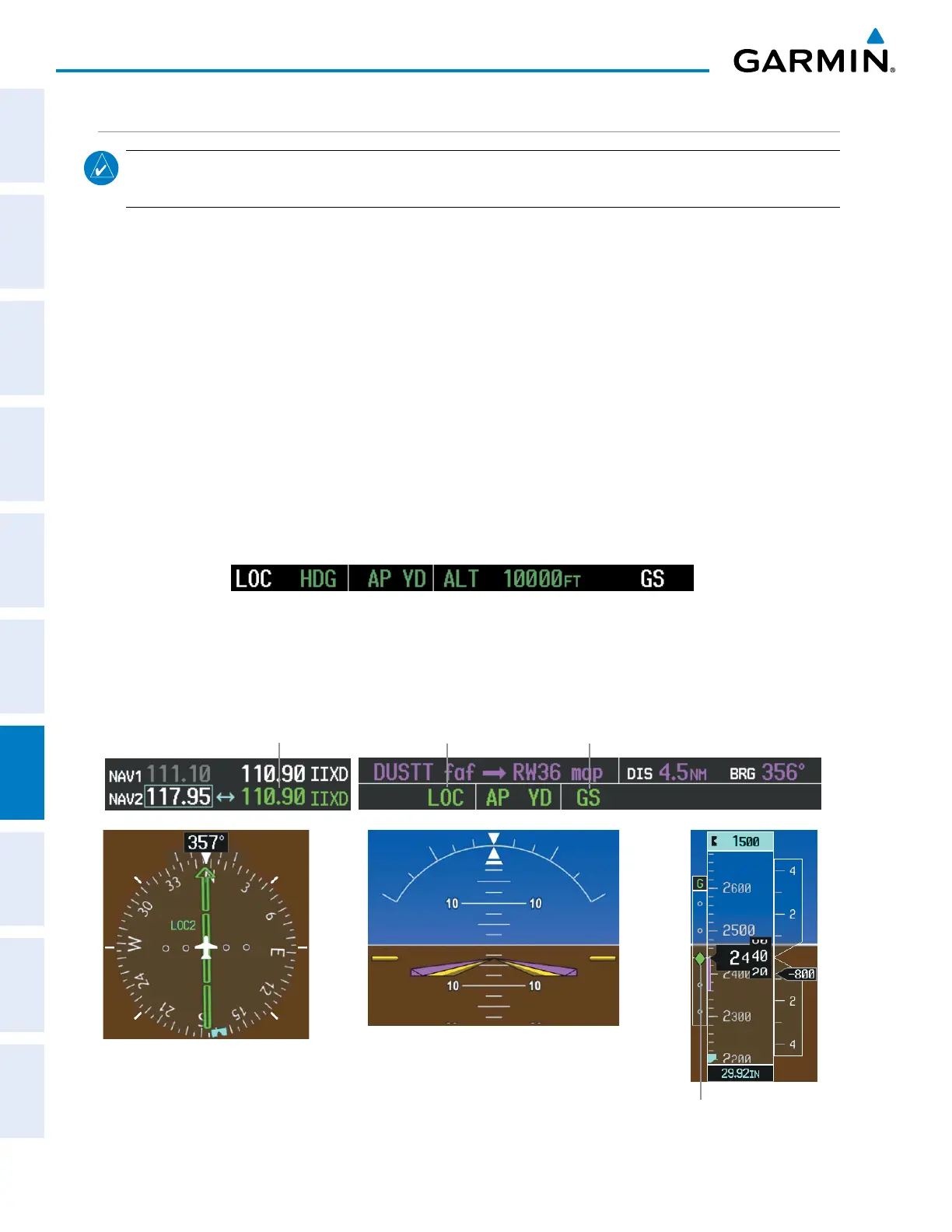

Figure 7-17 Glideslope Mode Armed
Once LOC is the navigation source, the localizer and glideslope can be captured. Upon reaching the glideslope,
theightdirectortransitionstoGlideslopeModeandbeginstocaptureandtracktheglideslope.
Figure 7-18 Glideslope Mode
NAV2 (localizer) is Selected
Navigation Source
Command Bars Indicate Descent
on Localizer/Glideslope Path
Glideslope
Indicator
Glideslope
Mode Active
Approach
Mode Active
Active ILS
Frequency
Tuned
