NAV radios are selected for listening by pressing the corresponding keys on the Audio Panel. Pressing the
NAV1, NAV2, ADF, or DME Key selects and deselects the navigation radio source. Selected audio can be heard over
the headset and the speaker (if selected). All radios can be selected individually or simultaneously.

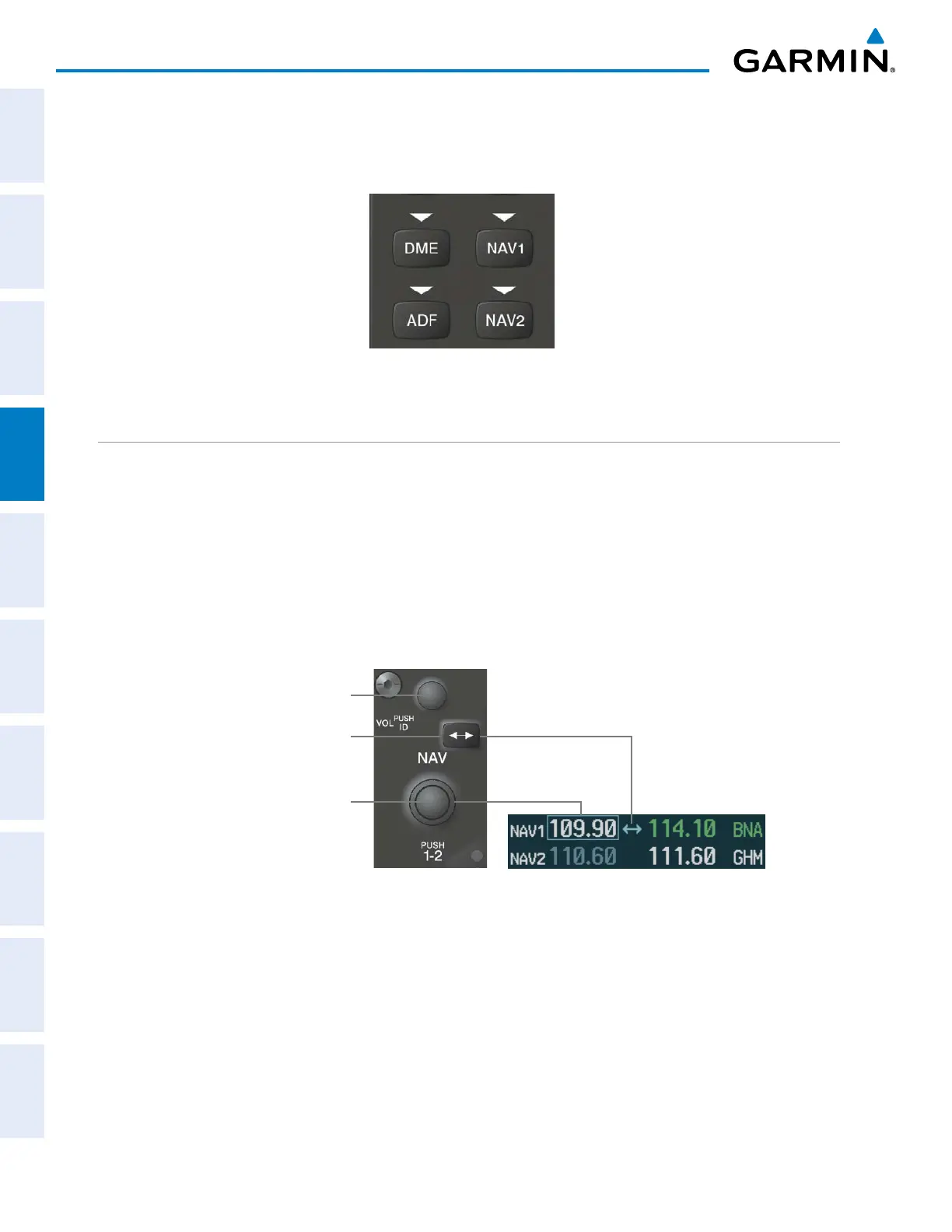

Figure 4-18 Selecting a NAV Radio Receiver
NAV RECEIVER MANUAL TUNING
TheNAVfrequencycontrolsandfrequencyboxesareontheleftsideoftheMFDandPFD.
Manually tuning a NAV frequency:
1) Turn the NAV Knob to tune the desired frequency in the NAV Tuning Box.
2) Press the Frequency Transfer Key to transfer the frequency to the NAV Active Frequency Field.
3) Adjust the volume level with the NAV VOL/ID Knob.
4) Press the NAV VOL/ID Knob to turn the Morse code identifier audio on and off.
Figure 4-19 NAV Frequency Tuning
Press the
Frequency Transfer Key to
Transfer NAV Frequencies Between
Active and Standby Frequency Fields
Turn the
NAV Knob to
Tune the Frequency in
the Tuning Box
Turn VOL/ID Knob to adjust
volume. Press Knob to Turn
Morse Code On or Off.
