190-00962-02 Rev. A

Garmin G1000 Pilot’s Guide for the Diamond DA42NG

155

FLIGHT MANAGEMENT

SYSTEM

OVERVIEW

FLIGHT

INSTRUMENTS

EIS

AUDIO PANEL

& CNS

FLIGHT

MANAGEMENT

HAZARD

AVOIDANCE

AFCS

ADDITIONAL

FEATURES

APPENDICES INDEX

NAV RANGE RING

The Nav Range Ring shows the direction of travel (ground track) on a rotating compass card. The range is

determined by the map range. The range is 1/4 of the map range (e.g., 37.5 nm on a 150 nm map).

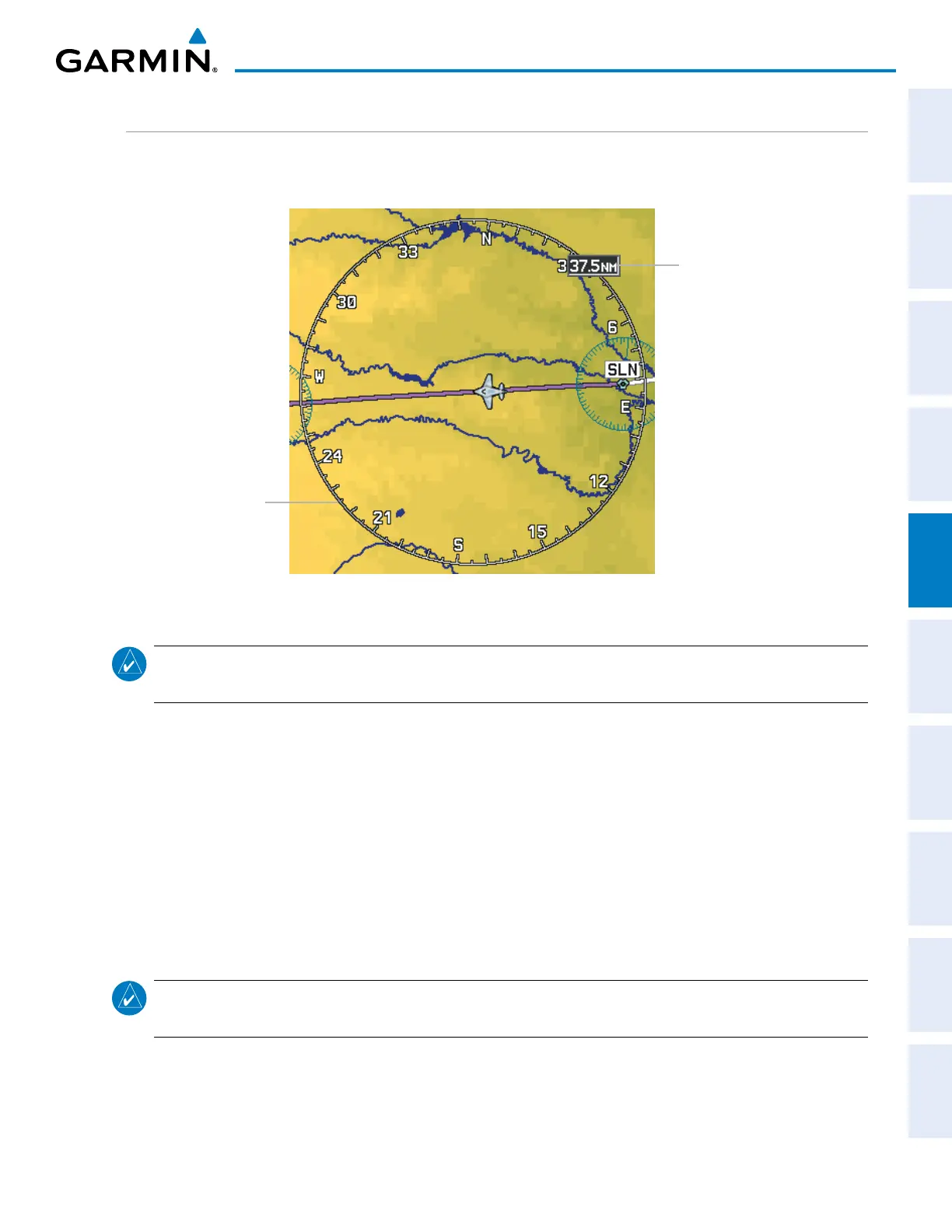

Figure 5-27 Navigation Map - Nav Range Ring

Nav Range Ring

Range (radius)

NOTE: The Nav Range Ring is not displayed on the Waypoint Information pages, Nearest pages, or Direct-to

Window map.

Displaying/removing the Nav Range Ring:

1) Press the MENU Key with the Navigation Map Page displayed. The cursor ﬂashes on the ‘Map Setup’ option.

2) Press the ENT Key. The Map Setup Menu is displayed.

3) Select the ‘Map’ group.

4) Press the ENT Key.

5) Highlight the ‘NAV RANGE RING’ ﬁeld.

6) Select ‘On’ or ‘Off’.

7) Press the FMS Knob to return to the Navigation Map Page.

NOTE: The Nav Range Ring is referenced to either magnetic or true north, based on the selection on the AUX

- System Setup Page.
