190-00962-02 Rev. A
Garmin G1000 Pilot’s Guide for the Diamond DA42NG
571
ADDITIONAL FEATURES
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICES INDEX
UNUSUAL ATTITUDES
Unusual attitudes are displayed with red chevrons overlaid on the display indicating the direction to fly to
correct the unusual attitude condition. The display shows either a brown or blue colored bar at the top or
bottomofthescreentorepresentearthorsky.Thisisintendedtopreventlosingsightofthehorizonduring
extreme pitch attitudes.

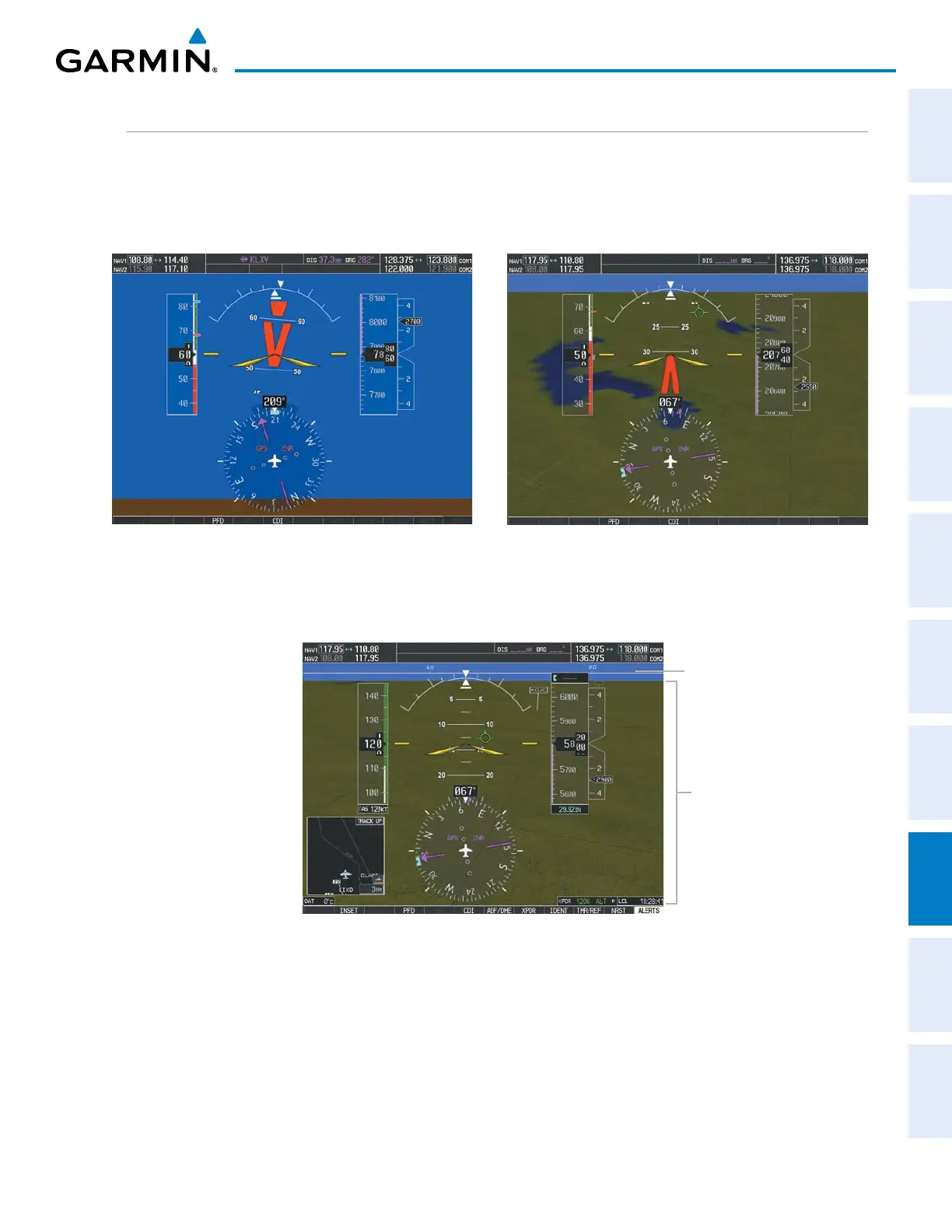

Figure 8-114 Unusual Attitude Display
The blue colored bar is also displayed when terrain gradient is great enough to completely fill the display.
Blue Band
Figure 8-115 Blue Sky Bar with Full Display Terrain
Terrain
Completely
Fills Display
