After the Test — Post Test Review
Full Disclosure ECG
Overview
The system will save the full disclosure ECG only if configured (see
section “Miscellaneous 1 Tab” on page 12-24). On this screen you see one
lead of the full disclosure ECG. The events identified by the rhythm
analysis algorithm may be color-coded. On the display you will also see
when filter or cubic spline were enabled or disabled, e.g. in the form of
FRF off = FRF-, Spline ON = Spline +.

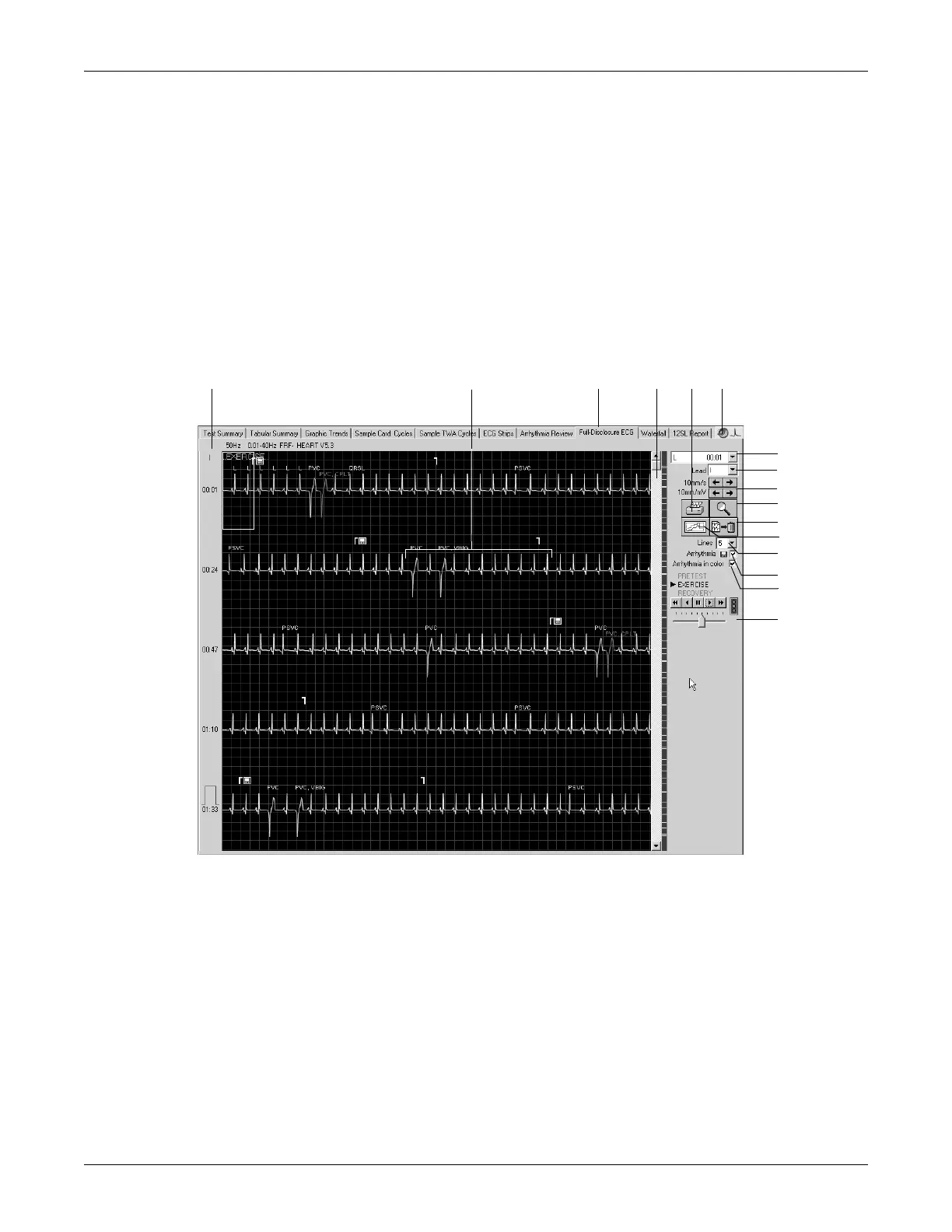

A Click lead label to change displayed lead.
B Marks beginning and end of an arrhythmia.
C Click to display the Full Disclosure ECG window.
D Scroll box to display different time windows. The markers to the right of the
scroll bar allow direct access to the corresponding events.
E Click to open a list showing all identified arrhythmias.
F Click to play the audio ECG.
G Click to open a list with all leads.
H Click to select gain and speed.
To Next Page
