8-6
CASE
Revision C
2060290-201

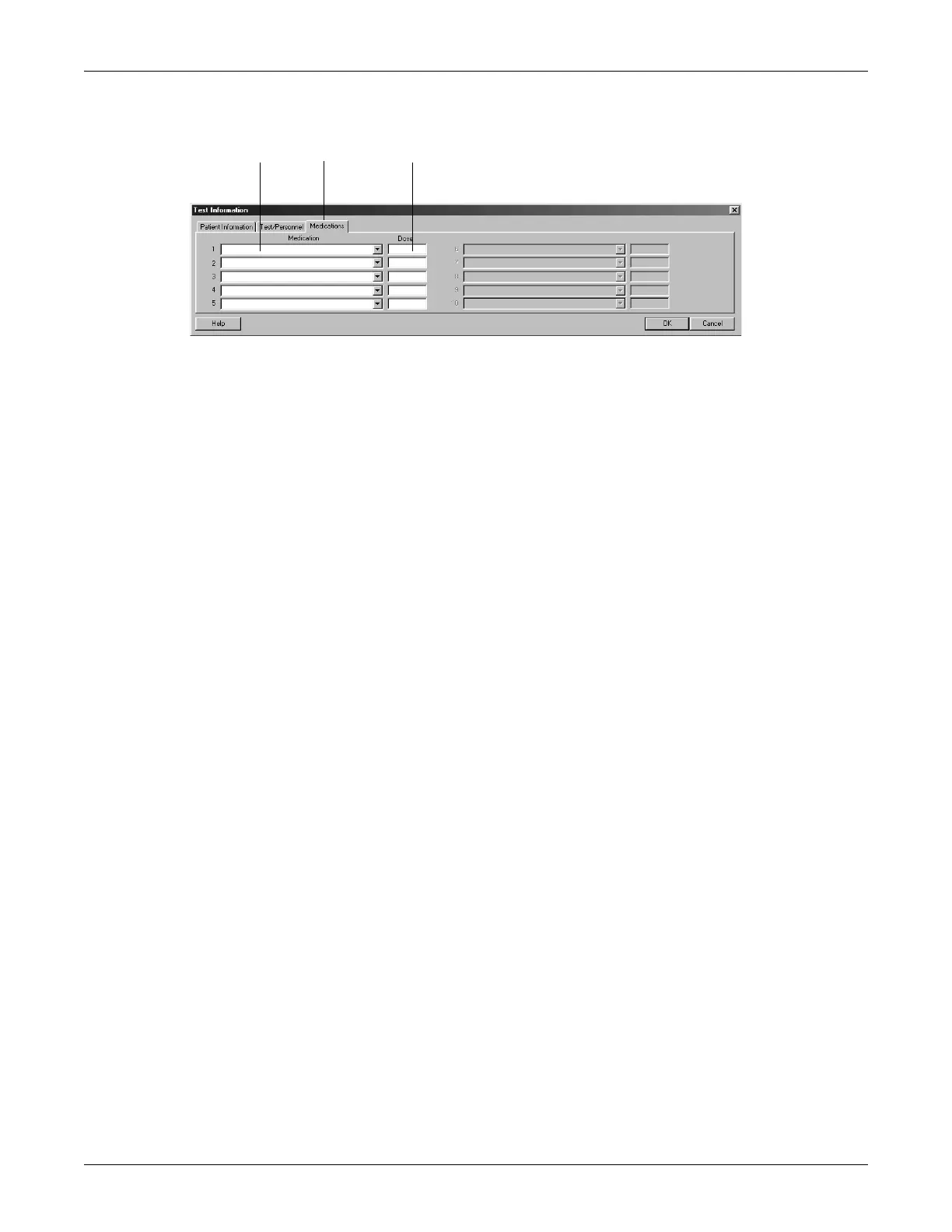

Entering Test Information
Medications
1.
Click the
Medications
tab.
2.
Enter or choose a maximum of 5 medications.
3.
Enter the medication dose.
Note
You can edit th
e
medication library (see section
“Editing the Reason
for Test, Medication Library”
on page 12-36).
53A-R
3
2
1
193
195
