Resting ECG Setup
Lead Sequence Tab

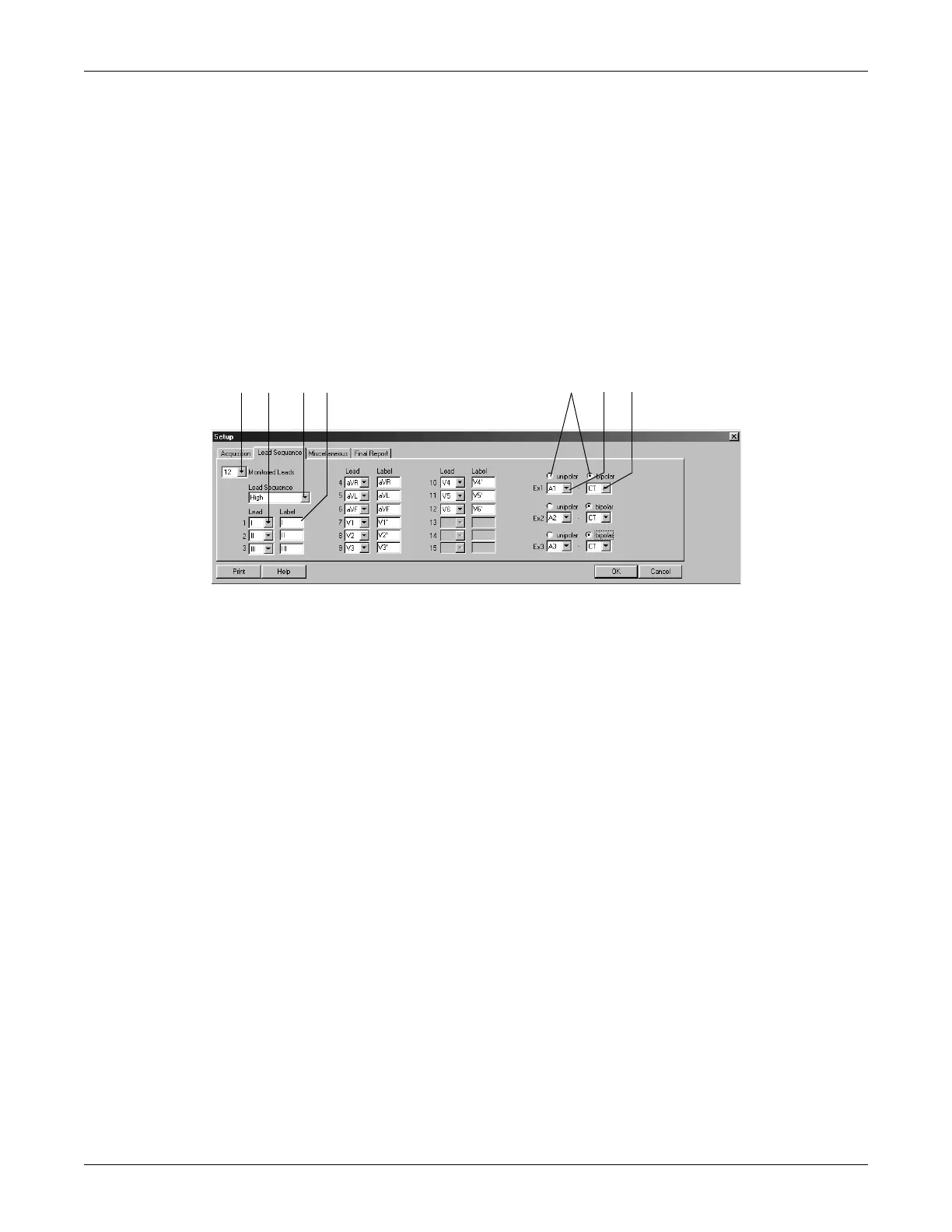

Click the Lead Sequence tab to open the window.
Lead sequence is the assignment of ECG leads to the writer or screen
channels.
You can change the lead sequences according to your needs and save
them under the same name or under a new name. You may also create
new lead sequences.
Note
The Standard and Cabrera lead sequences cannot be modified.
Modifying the Lead Sequence
1. Select the number of monitored leads. These are the leads to be
recorded.
2. Select a Lead Sequence.
3. Open the list box of the channel where you want to record another
lead and select.
4. Enter the lead label.
Configuring Leads Ex1, Ex2, Ex3
5. Choose unipolar or bipolar.
6. Choose the 1st electrode site for Ex1.
7. Select the 2nd electrode site for Ex1 (bipolar) (the 2nd site for
unipolar leads is always CT).
8. If required, change the name of the lead sequence (step 2) and click
OK to save.
If you change any of the selections of an "Ex" lead, the sequence
name is given as "?"
