Applying Electrodes
FRANK X, Y, Z Lead Electrode Placement

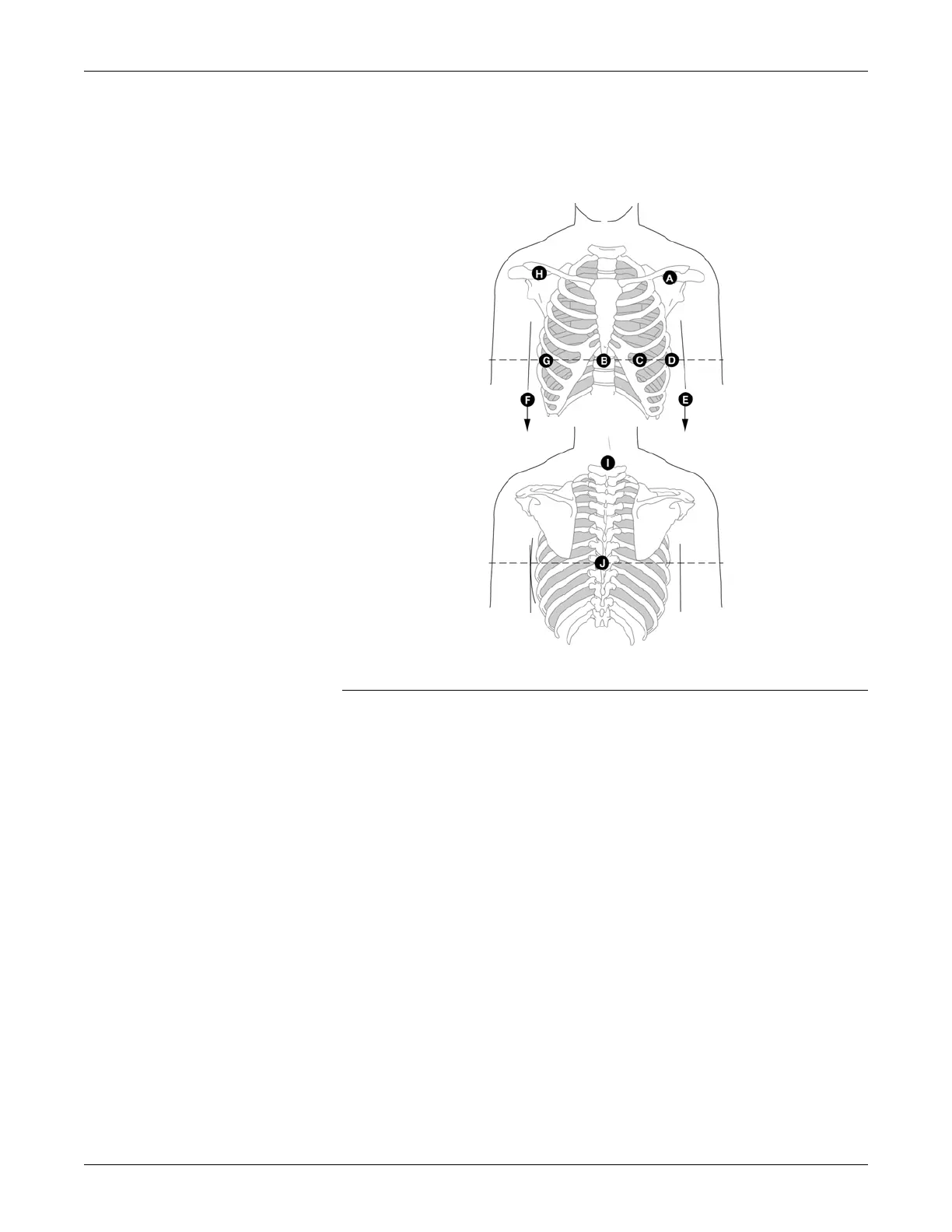

To record the orthogonal FRANK leads X, Y, and Z, apply electrodes G
(A3), B (A2), J (A4) and I (A1) in addition to the standard lead electrodes.
AHA Label IEC Label Electrode Placement
A
H
LA black
RA white
L yellow
R red
Below the clavicle.
B/A2 E orange E light blue Sternum at the level of C and D.
C V4 blue C4 brown Mid-clavicular line in the fifth intercostal space.
D V6 purple C6 purple Left mid-axillary line on the same horizontal level as
C.
E
F
LL red
RL green
F green
N black
Right and left thighs.
G/A3 I orange I light blue Right mid-axillary line on the same horizontal level
as C and D.
I/A1 H orange H light blue Neck, avoid carotid artery and jugular vein.
J/A4 M orange M light blue Center of spine on the same horizontal level as C
and D.
