Revision C
CASE
3-11
2060290-201
Applying Electrodes
CM5, CC5, ML (CML) Auxiliar
y Lead Electrode Placement
In addition to the standard elec
trodes, apply one
electrode on the
sternum (A1) and one in
locatio
n V5R/C5R (A2).

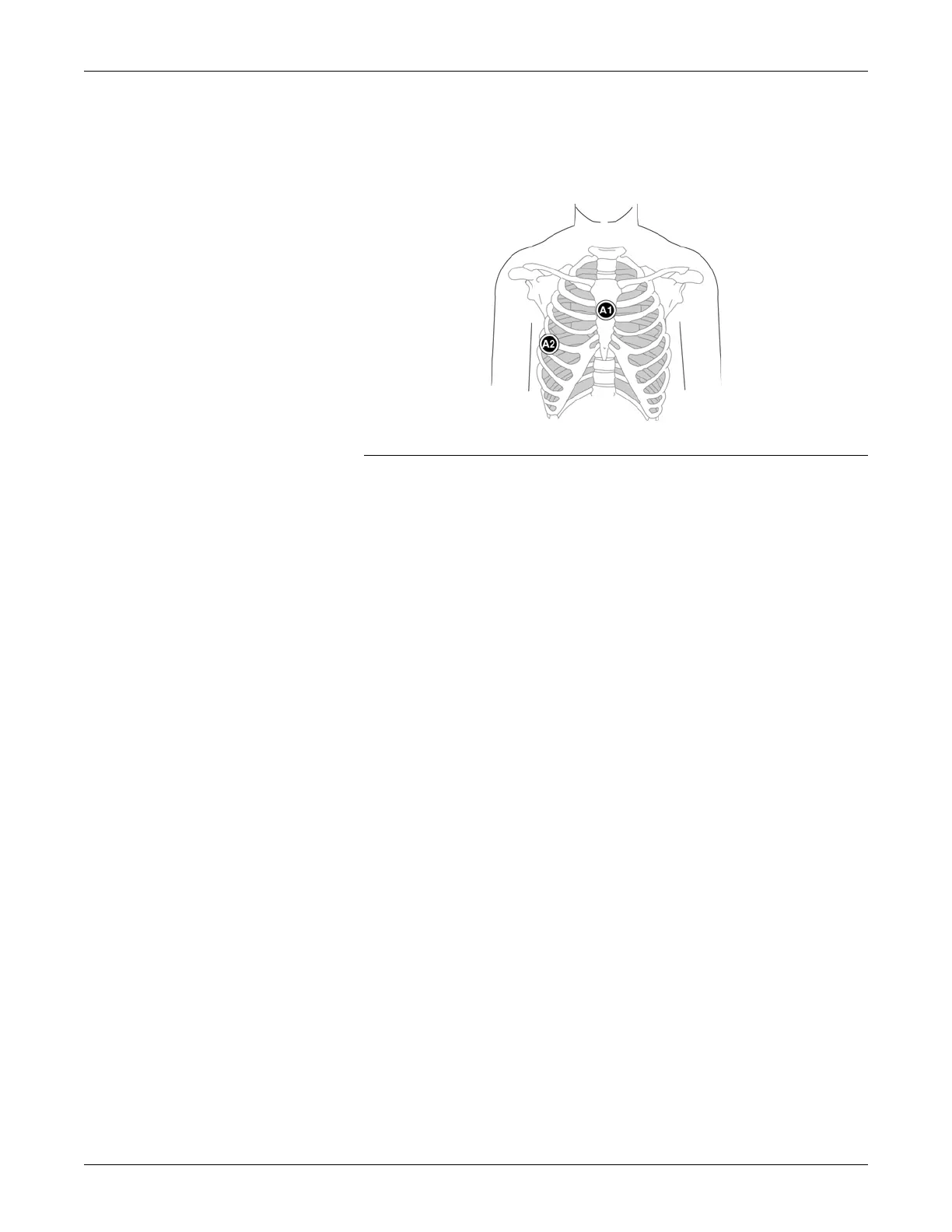

Electrode
Electrode Placement
A1 (Nst)
Mid-sternum at the second intercostal space.
A2 (Nax)
In the fifth intercostal space
in the rig
ht, anterior axillary line (V5F/
C5R).
37A
60
62
