Post Test Review
Full Disclosure ECG

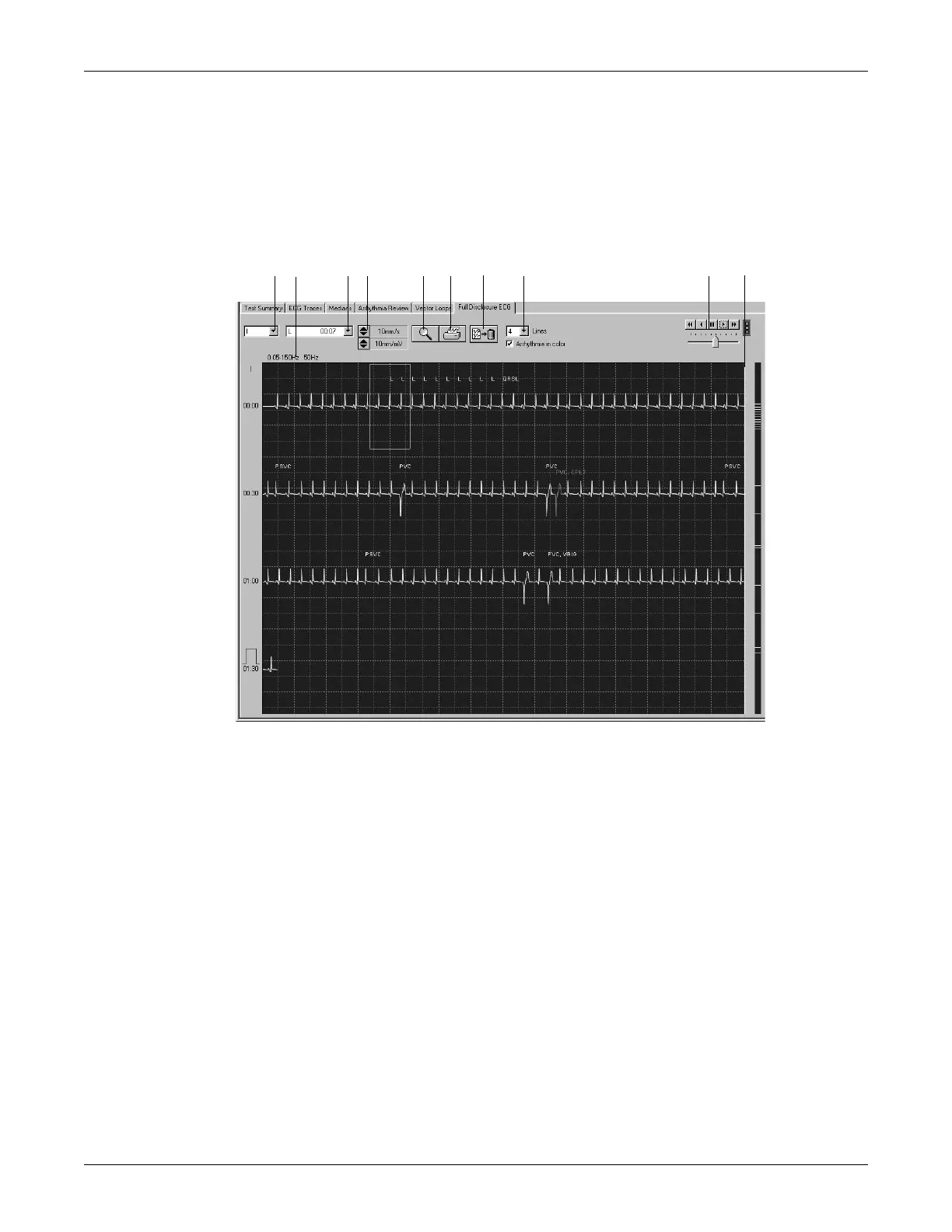

On this screen you see one lead of the full disclosure ECG. The events
identified by the rhythm analysis algorithm are color-coded. On the
display you will also see when filter or cubic spline were enabled or
disabled, e.g. in the form of Spline OFF = Spline -, Spline ON = Spline +.
516A-R
A CB
DE
F
G
H
I
J
A Click to select the lead.
B Information about filters, etc.
C Click to open a list showing all identified arrhythmias.
D Click to select gain and speed.
E Click icon to activate the zoom function.
F Click icon to print the entire full disclosure ECG or selected segments.
G Click icon to delete the full disclosure ECG.
H Select the number of lines and whether or not the events are to be color-
coded.
I Click icons for automatic scrolling of the ECG waveform, adjust the scroll
speed with the slider below.
J Scroll box to display different time windows. The markers to the right of the
scroll bar allow direct access to the corresponding events.
