12-32 CASE Revision C
2060290-201
Ambulatory Blood Pressure Measurement Setup

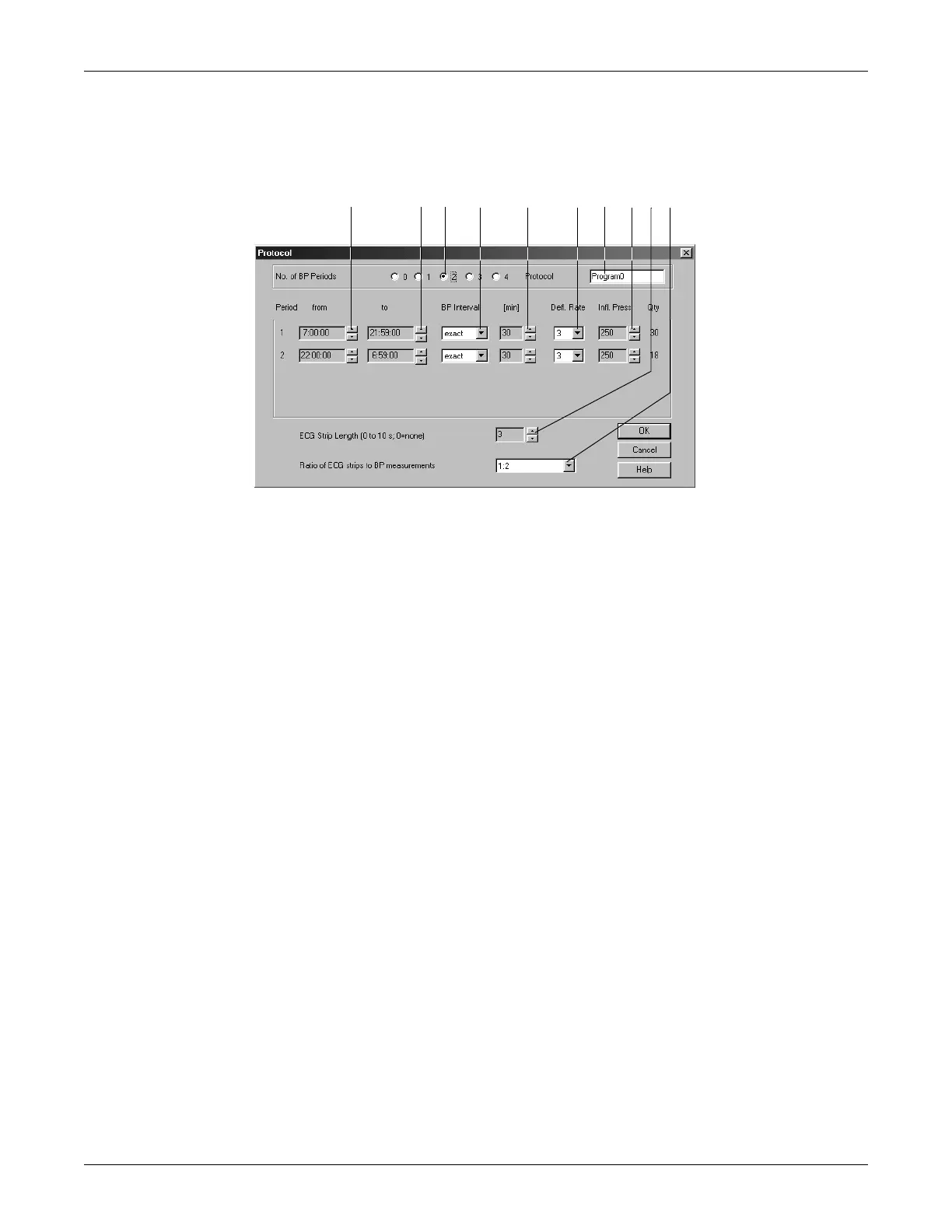

Editing the BP Protocol
Click Modify to display the configuration menu.
1. Select the number of BP periods.
2. Select the beginning of the period.
3. Select the end of the period.
4. Choose whether measurements are to be taken at exactly or at
approximately the selected intervals.
5. Select the BP interval.
6. Select the deflation rate.
7. Enter a name for the protocol.
8. Select the inflation pressure for the first measurement.
9. Select the length of ECG strips (TONOPORT IVa only).
10. Select whether you wish to record an ECG with each, with every
second or with every third BP measurement (TONOPORT IVa only).
11. Click OK to clear the window.
