GE LOGIQ 7 Service Manual

GE HEALTHCARE
DIRECTION 2286865, REVISION 14 LOGIQ™ 7 SERVICE MANUAL
Section 4-2 - General Procedure 4-19
4-2-7-3 Loading Presets from an CD-R/MO/DVD-R disk
1.) Insert the CD-R/MO/DVD-R disk with the archived Presets into the CD-R/MO/DVD-R.
2.) Access to the Utility Menu on the Touch Panel, and select System>Backup/Restore. The Restore
sheet will be shown on the monitor.
3.) Select the item to restore either from resource Files.
4.) Click on Restore. A message to make sure the restore process is displayed on the monitor. Click
OK. The restore status for each item is displayed on the Result column.
5.) Make sure “Finished OK” is displayed on the Result column.

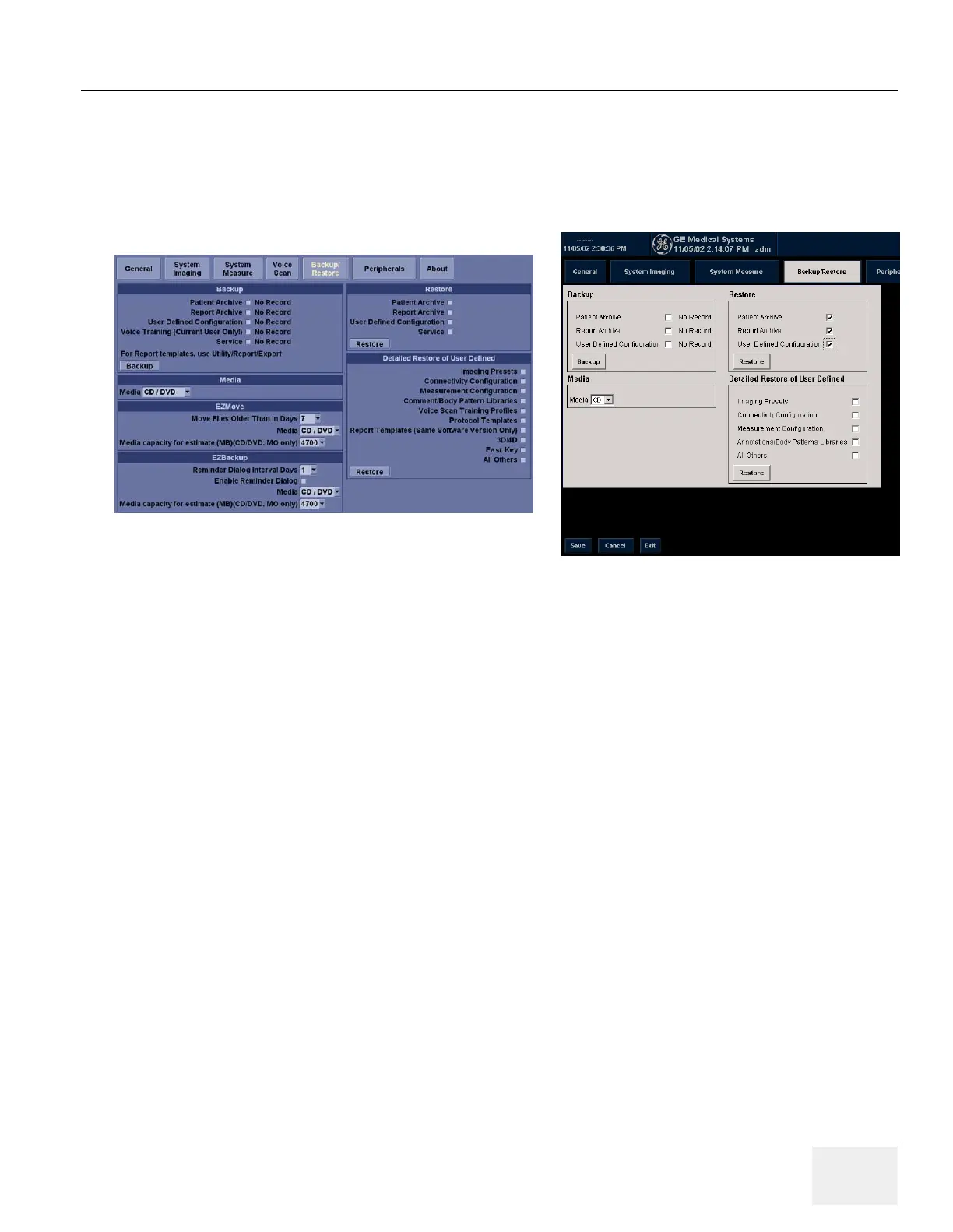

Figure 4-22 Restore Sheet
