3-12 Section 3-4 - Completing the Installation
3-4-2 Optional Peripherals/Peripheral Connection
Depending on the customer order, the peripheral(s) already has been installed onto the scanner before
shipment. If it does not, select the proper location to install the peripherals, following the table below.

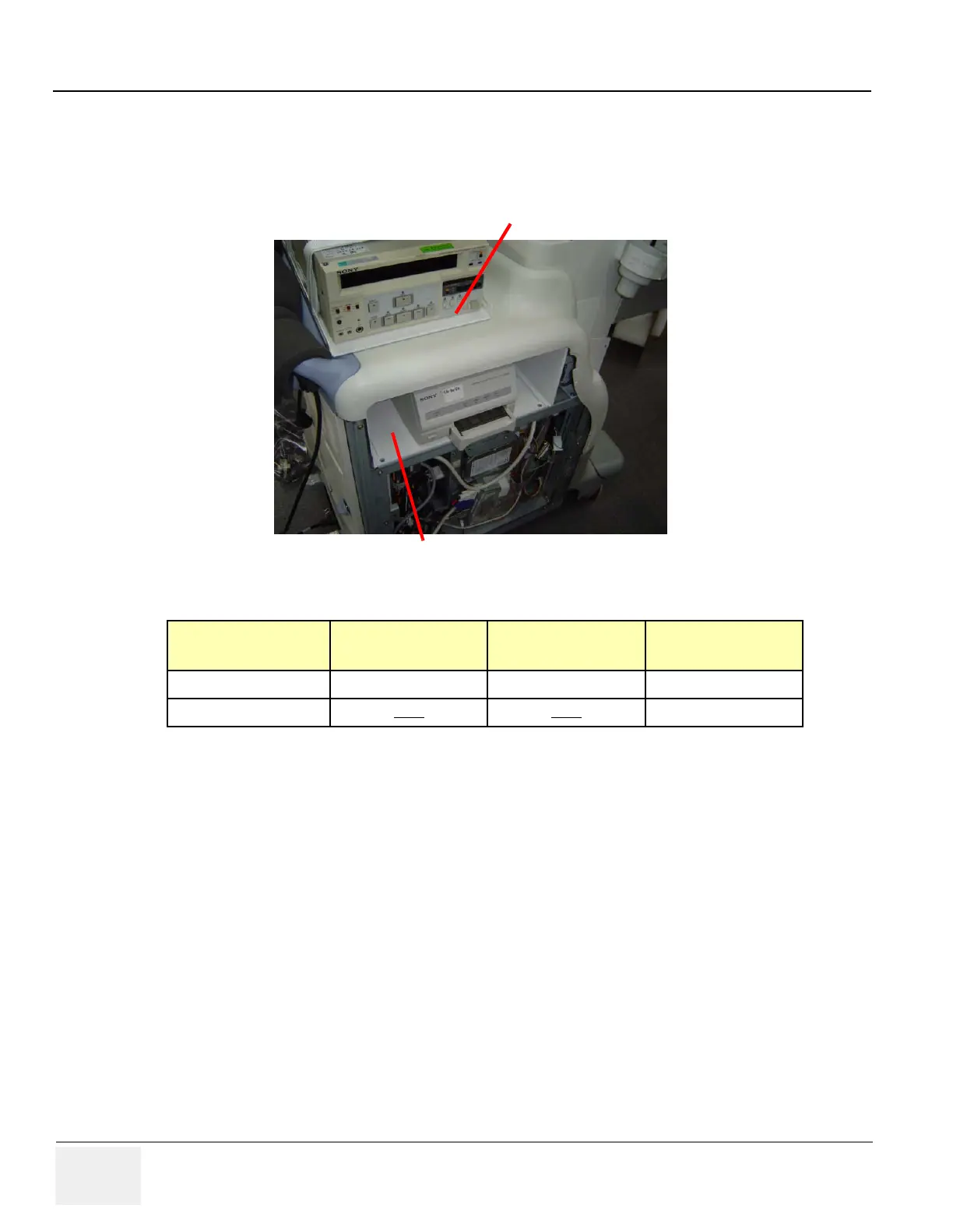

Figure 3-5 Optional Peripherals/Peripheral Connection
Location for
peripheral
One peripheral
(Color printer ONLY)
One peripheral (VCR
or DVD recorder)
Two peripherals
Consle Top Not used Not used VCR or DVD recorder
Device Room Used
Used Color Pinter
Console Top
Device Room
To Next Page
