GE HEALTHCARE
DIRECTION 2286865, REVISION 14 LOGIQ™ 7 SERVICE MANUAL
5-26 Section 5-4 - Block Diagrams and Theory
5-4-10 Difference points between BT07 (or later) and BT06 (or earlier) Systems for
R7.5.x 17" to 19" LCD Monitor Upgrade
For BT06 or earlier system, the DVI cable is connected directly to the monitor from the BECOMP3 via
the DVI-HDMI adapter.

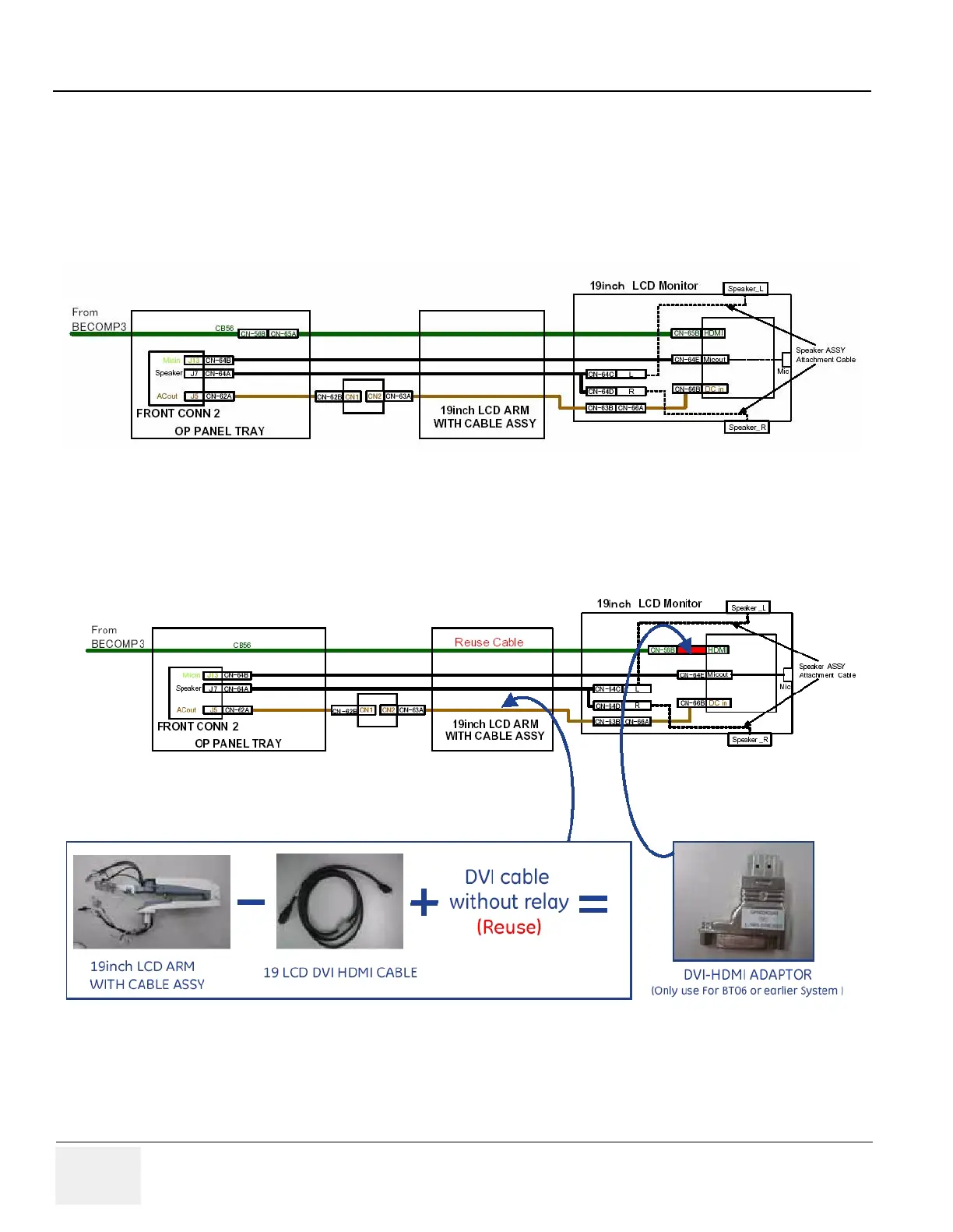

Figure 5-45 R7.5.x 17” to 19” LCD Monitor Upgrade (For
BT07 or later)
Figure 5-46 R7.5.x 17” to 19” LCD Monitor Upgrade (For
BT06 or earlier)
