DIRECTION 2286865, REVISION 14 LOGIQ™ 7 SERVICE MANUAL
Section 5-2 - Hardware Compatibility Matrix 5-5
5-2-1-4 Front End

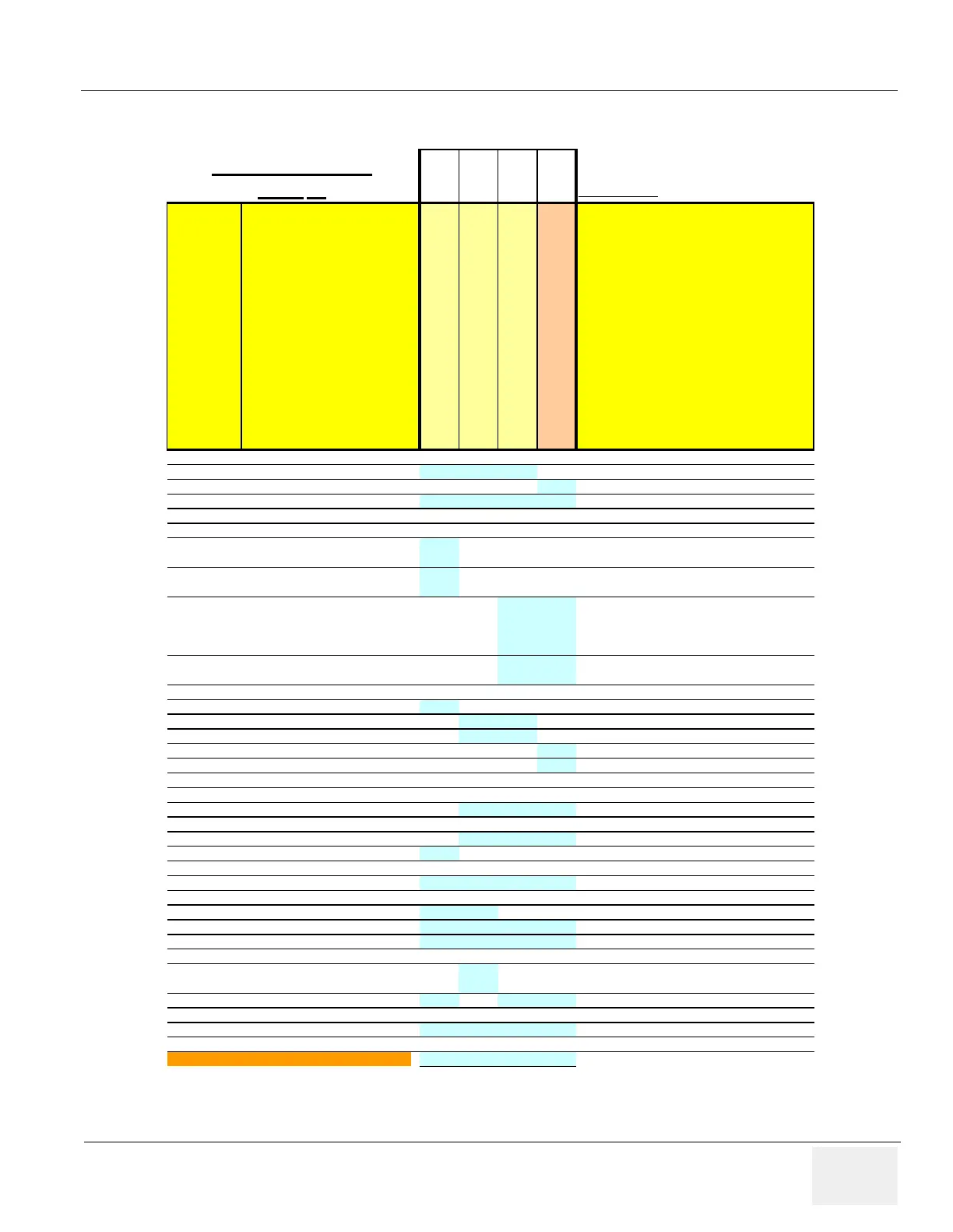

Figure 5-29 Front End- FRU Compatibility
R8.0.x R8.0.x R8.0.x R8.0.x
Latest Software
SW Upgraded BT09 (w BT02/BT03 console)
SW Upgraded BT09 from BT04/BT06/BT07
19 inch LCD Upgraded BT09 from 17 inch LCD
R8.0.X (BEP4)
comment
2357804-2 P9536CA DDBF SVC NNNN
32ch
2399312 P9535CL DDBF64 ASSY YYYN
64ch
5182379 DDBF128 ASSY CSL L7 NNNY
128ch/use with EBUS4
2315492 P9538JD NEST BD JIG YYYY
2264606-2 P9535AU MDBRG ASSY NNNN
2264606-3 P9535AU MDBRG ASSY NNNN
Noise reduction on BT04
2264606-4 P9535AU MDBRG ASSY Y Y+ N N
+Y if upgraded from BT04~BT06 but not BT06-2
2264606-5 P9535AU MDBRG ASSY Y Y+ N N
+Y see comment above
6T Issue solved from -4 or lower version
5145999 MDBRG2S ASSY CSL L7 NY*YY
MDBRG2S only on BT06-2 console (MDBRG2S
= MDBRG+SINANO2, Insert to SINANO2 slot )
*Y if upgraded from BT06-2
5145999-2 MDBRG2S ASSY CSL L7 NY*YY
Improvement for Memory Test false fail. Previous
parts can still be used as FRU
2271702-2 P9535BA EBUS ASSY NNNN
2399317 P9535FA EBUS2 ASSY Y NNN
Only for Upgraded BT04 from BT01/02/03
5111348 EBUS3T ASSY CSL LOGIQ7 N YYN
Upper
5112465 EBUS3B ASSY CSL LOGIQ7 N YYN
Bottom
5182215 EBUS4T ASSY CSL L7 NNNY
5182757 EBUS4B ASSY CSL L7 NNNY
2273295 P9535BC MDCON ASSY NNNN
No need in BT04system
2264608-3 P9535AY MOTHER ASSY NNNN
5111345-2 MOTHER2 ASSY CSL LOGIQ7 N YYY
2264596-2 P9535AE PREA ASSY NNNN
32ch
5119039 PREA2F ASSY CSL LOGIQ7 N YYY
64ch
2393853 PREA2H ASSY CSL LOGIQ7 Y NNN
Only for Upgraded BT04 from BT01/02/03
2264604-2 P9535AS PROMP ASSY NNNN
No need in BT04
/BT06
system
2304617-5 P9538HW QCON ASSY YYYY
Noise reduction on BT04
2264602-3 P9535AQ SINANO ASSY NNNN
2374744 P9535BQ SINANO2 ASSY YYNN
2277244-4 P9535AG STCW ASSY YYYY
2268026 P9535BY TERMINATOR ASSY YYYY
2323353-4 P9535BJ TRAP2 ASSY NNNN
32ch
5118342-3 BTRAPHV ASSY N Y NN
64ch. Countermeasured against HVL current
control with full heigh HVPS.
5154321 BTRAPP5AHV Assy Y N YY
P
5A 64ch.
2323450-4 P9535GA TRAPCW ASSY NNNN
TRAP + TXCW
5111346 LOGIQ7 BTXCW ASSY YYYY
BTXCW only (piggy board)
5244917
MOTHER2A ASSY CSL LOGIQ7 NNNN
2305111-3 ? TX CABLE ASSY
YYYY
FRU Part# Description
FRU compatibility
BT09
～
