GE HEALTHCARE
DIRECTION 2286865, REVISION 14 LOGIQ™ 7 SERVICE MANUAL
6-12 Section 6-5 - Monitor and LCD Adjustments
6-5-2 19 inch LCD Monitor Brightness Adjustment
To adjust the brightness:
1.) Press the Toggle button (2) or (3) Once for brightness adjustment.
a.) Verify that Brightness is 80.
If it is not, increase brightness to press the adjustment button (3).
If it is not, decrease brightness to press the adjustment button (2).
b.) Press the button (1) Once. The brightness display disappears.
NOTE: 19 inch LCD is ONLY a brightness adjustment.

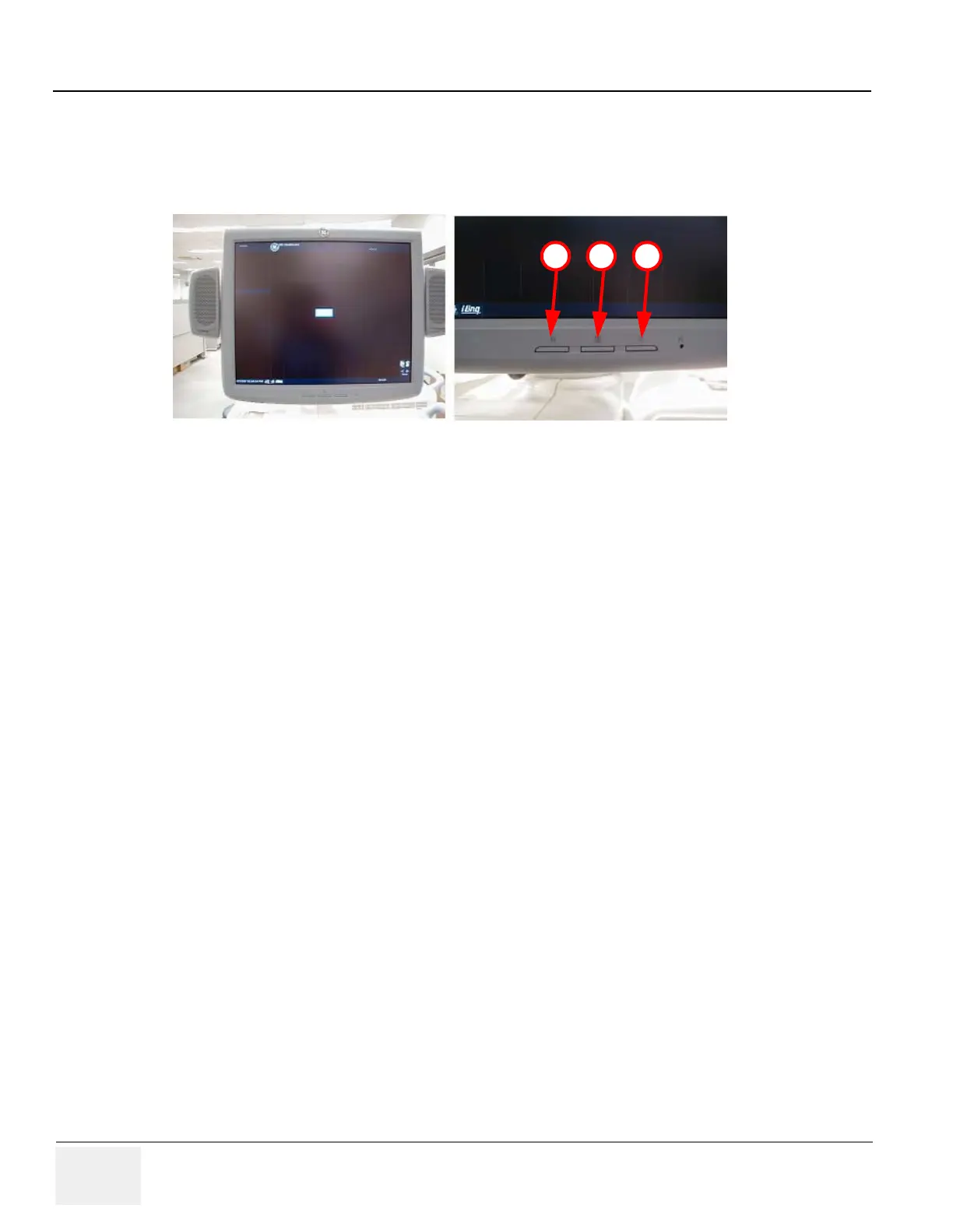

Figure 6-13 19 inch LCD Monitor Adjustment buttons
12 3
