LOGIQ™ 7 S
ERVICE
M
ANUAL
Section 5-2 - Hardware C
ompatibility Matrix
5-9
5-2-2-1
LCD Monitor
Differences
(cont
’d)

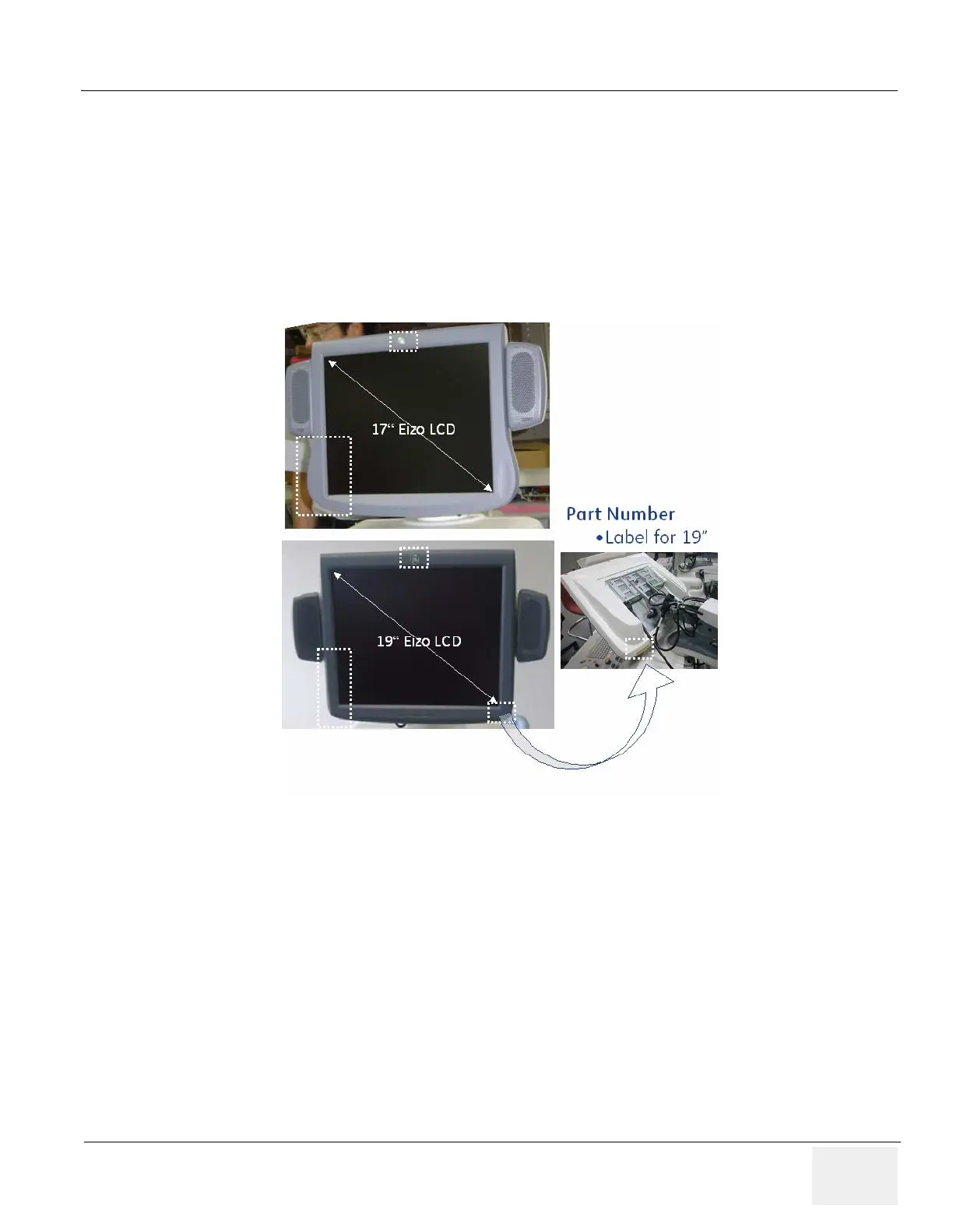

LCD Variation Tips
:
•
B
ezel Sh
ape
-
Curvy for 17 inch
-
Straight fo
r 19 inch
•
GE Logo
-
Silver for 17
inch
-
Silver o
n black
backgr
ound for 1
9 inch
Figure 5-33 LCD V
ariation Tip
s
124
126
