DIRECTION 2286865, REVISION 14 LOGIQ™ 7 SERVICE MANUAL
6-18 Section 6-5 - Monitor and LCD Adjustments
6-5-5-2 For Technart
6-5-5-2-1 Auto Adjustment
1.) Refer to 4-2-2-3 Entering Maintenance Mode to enter the windows desktop.
2.) The following screen should appear when exiting to Windows.
3.) Press the AUTO button once on the LCD touch panel board.

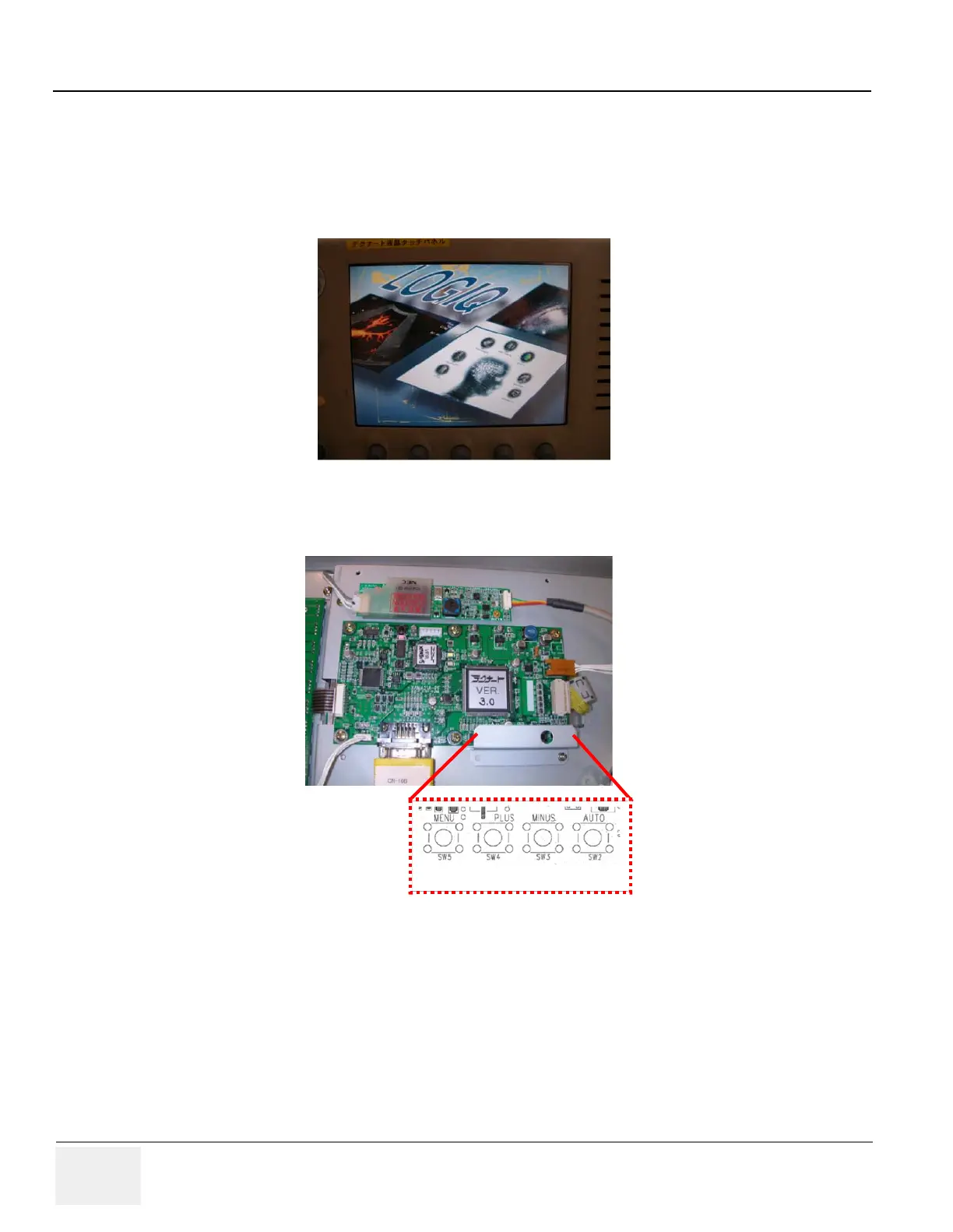

Figure 6-21 Start-up Screen
Figure 6-22 Auto Button
Auto Button
