9-32 Section 9-9 - Renewal Parts List For BT04 and BT06
9-9-7 Casters and Pedals

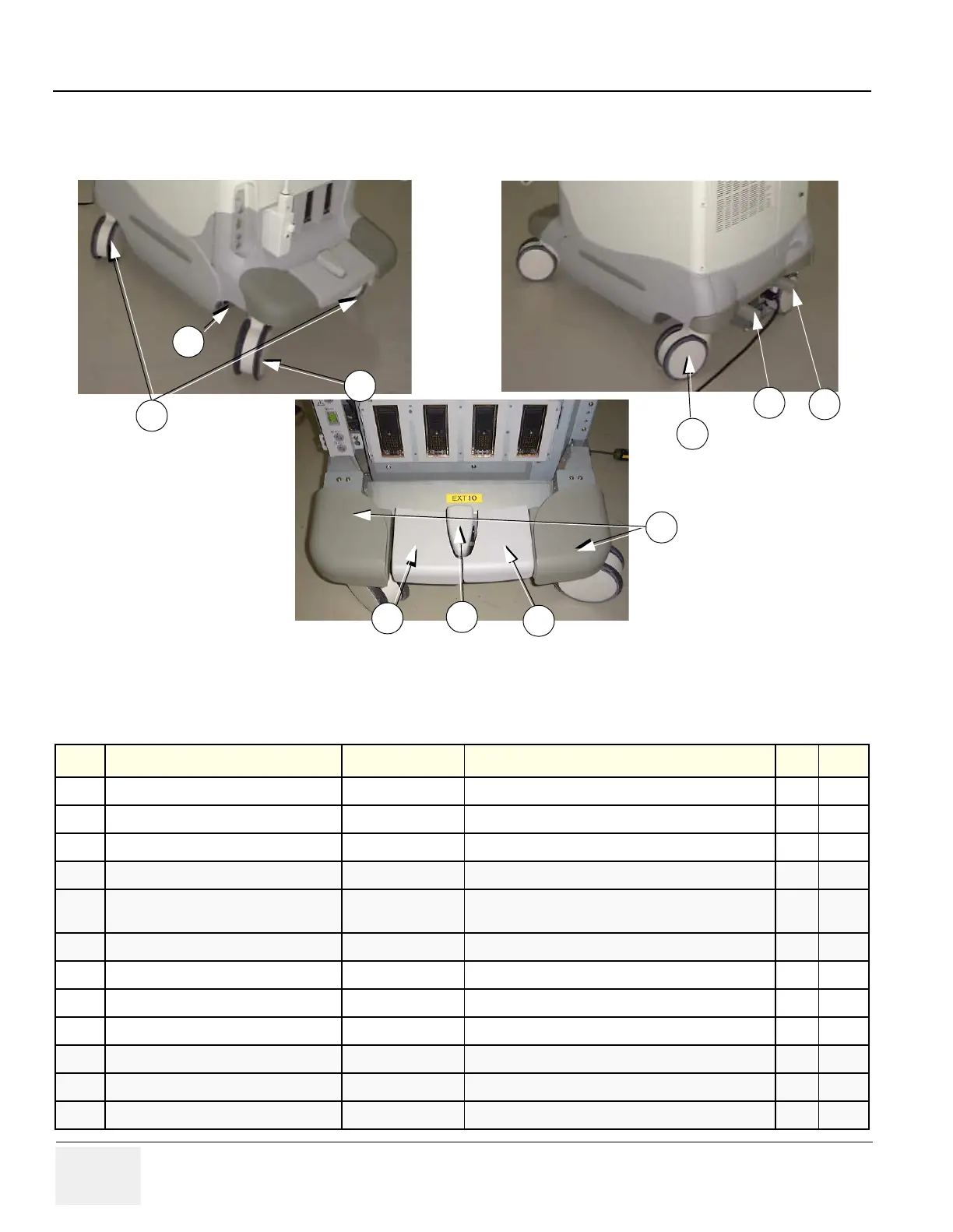

Figure 9-6 Casters and Pedals
Table 9-26 Casters and Pedals
Item Part Name Part Number Description Qty FRU
201 CASTER LINK ASSY 2304800 entire brake mechanism 1 2
- CASTER SWIVEL 2379694-2 Obsolete. Do not use these parts. - -
202 CASTER SWIVEL 5233773 swivel, rear right. Improved rubber type (anti-stain). 1 2
- CASTER LOCK 2379695 Obsolete. Do not use these parts. - -
203 CASTER LOCK 5233774
lock, front right and rear left. Improved rubber type
(anti-stain).
2 2
- CASTER FREE 2379693-2 Obsolete. Do not use these parts. - -
204 CASTER FREE 5233772 free, front left. Improved rubber type (anti-stain). 1 2
205 FRONT-BUMPER-ASSY 2315419 front bumper, left and right 1 2
207 PEDAL-R 2291870 rubber pedal for brake caster lock 1 2
208 PEDAL-L 2291869 rubber pedal for brake caster lock 1 2
209 PEDAL CENTER 2291871 rubber pedal for brake caster lock 1 2
210 PEDAL-REAR-REL 2304908 rear pedal 1 2
201
202
203
204
205
207
208
209
210
211
