9-64 Section 9-10 - Renewal Parts List for BT03 or lower
9-10-3 Casters and Pedals (cont’d)
NOTE: The new type of the Caster already has been released. The differences between old and new types of
the caster are the shape and attaching hardware as shown.
• If you replace a caster from the old type to the new one:
Order Caster FRU Assy (2381035-x; FRU2). This contains 4 casters (One Free Caster, One
Swivel Lock Caster, and Two Total Lock Caster) and 16 attaching bolts. This mean that you must
replace ALL of the four casters as an assembly when replacing a caster.
• If you replace a caster for the system with a new type of the caster installed:
Order Caster (5233772/Free, 5233773/Swivel Lock, or 5233774/Total Lock; FRU2). This is only
one caster (with no bolt).

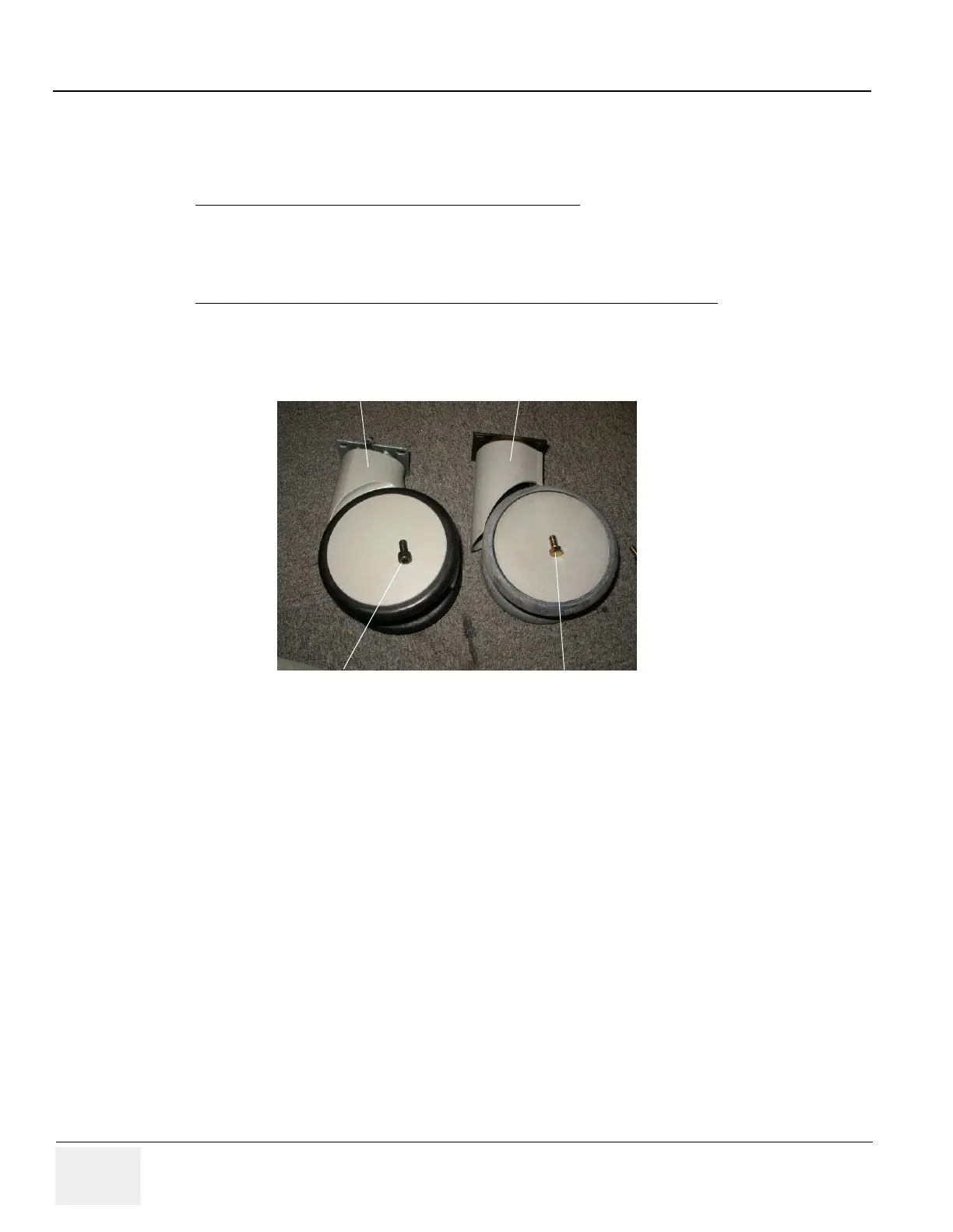

Old CasterNew Caster
Socket Bolt
Hex Head Bolt
