GE HEALTHCARE
DIRECTION 2286865, REVISION 14 LOGIQ™ 7 SERVICE MANUAL
3-20 Section 3-5 - Installation Paperwork
3-5-1-1 Rear Panel Connector (cont’d)
NOTE: Each outer (case) ground line of peripheral/accessory connectors are protectively grounded.
Signal ground lines are not isolated, except the Service port (3). All of signal lines (include signal
GND) of the Service port are isolated.
The specified peripherals/accessories only can be connected to the USB ports.
Rear Pannel Connector for BT03 or lower

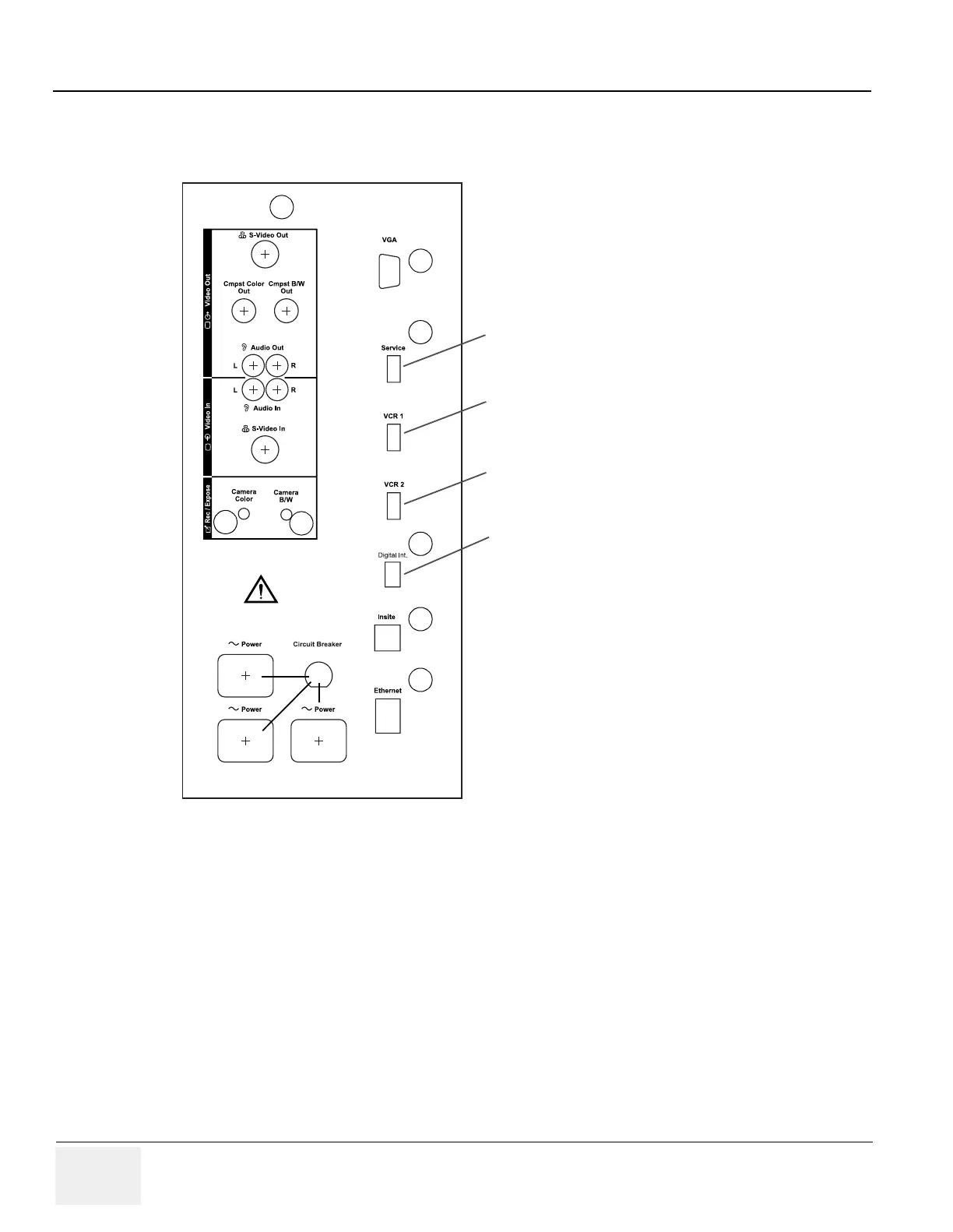

Figure 3-8 Rear Panel Connector (BT03 or lower)
USB1.1 (USB compatible)
or (USB + USB Serial Bridge
+ RS232C)
(Reserved for future use)
2
1
3
4
5
6
8
7
USB1.1 (USB compatible)
or (USB + USB Serial Bridge
+ RS232C)
USB1.1 (USB compatible)
or (USB + USB Serial Bridge
+ RS232C)
To Next Page
