GE HEALTHCARE
DIRECTION 2286865, REVISION 14 LOGIQ™ 7 SERVICE MANUAL
5-36 Section 5-5 - Common Service Platform
5-5-6 Image Quality
Field is not yet populated.
The Image Quality page contains tools for troubleshooting image quality issues.
5-5-7 Calibration
Field is not yet populated.
The Calibration page is used to calibrate the system.
5-5-8 Configuration
Field is not yet populated.
The Configuration page is used to setup various configuration files on the system.
The Service Platform is used as the access and authorization control for remote access to the
configuration subsystem.

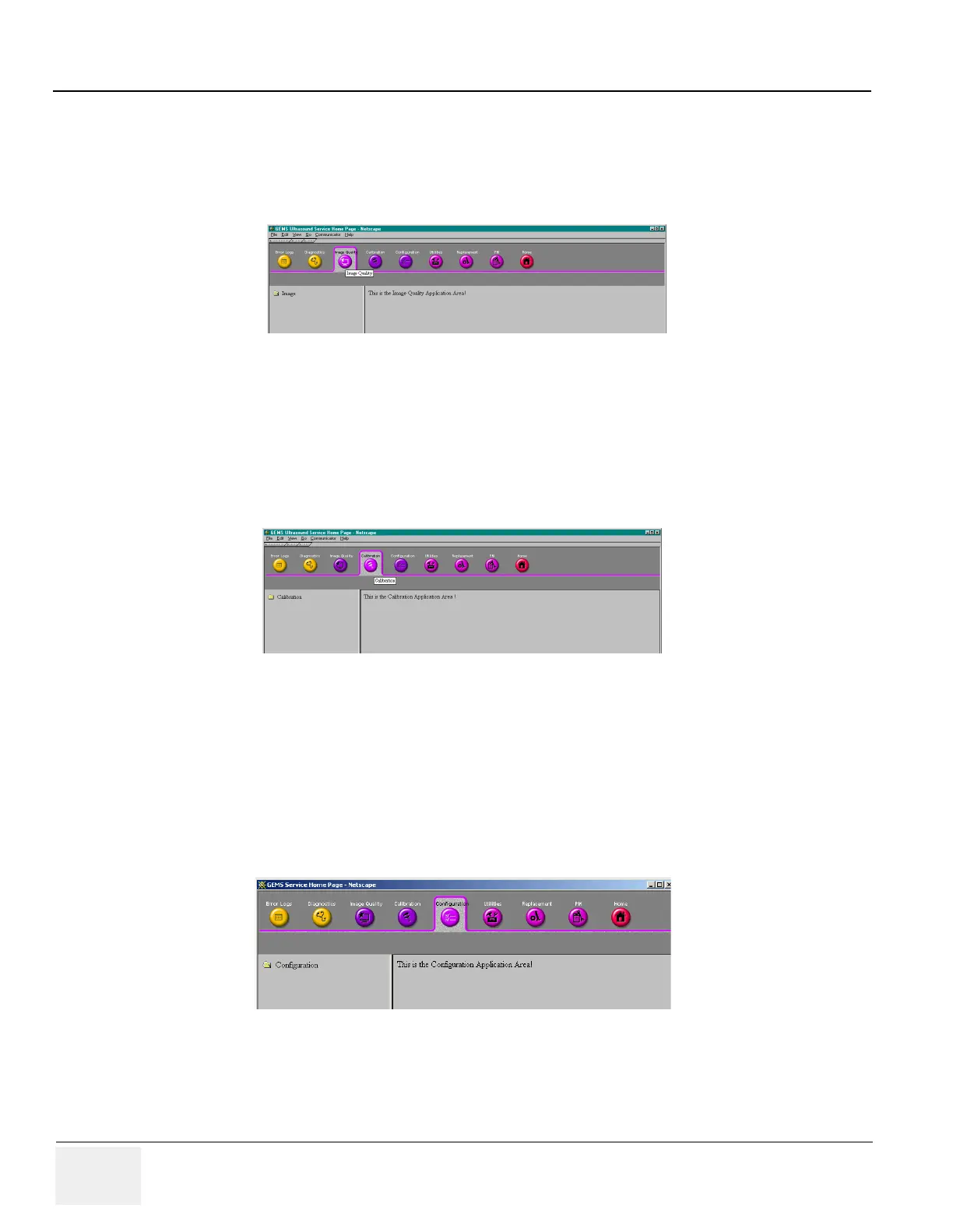

Figure 5-57 Image Quality Page
Figure 5-58 Calibration Page
Figure 5-59 Configuration Page
